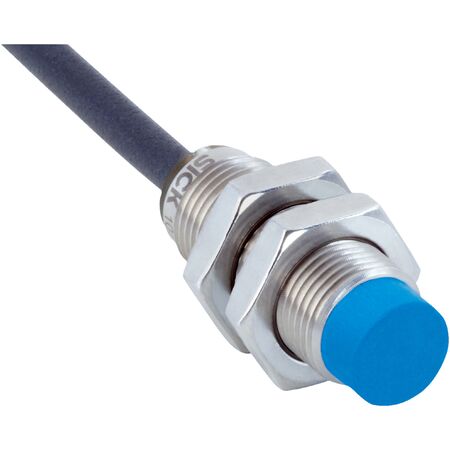

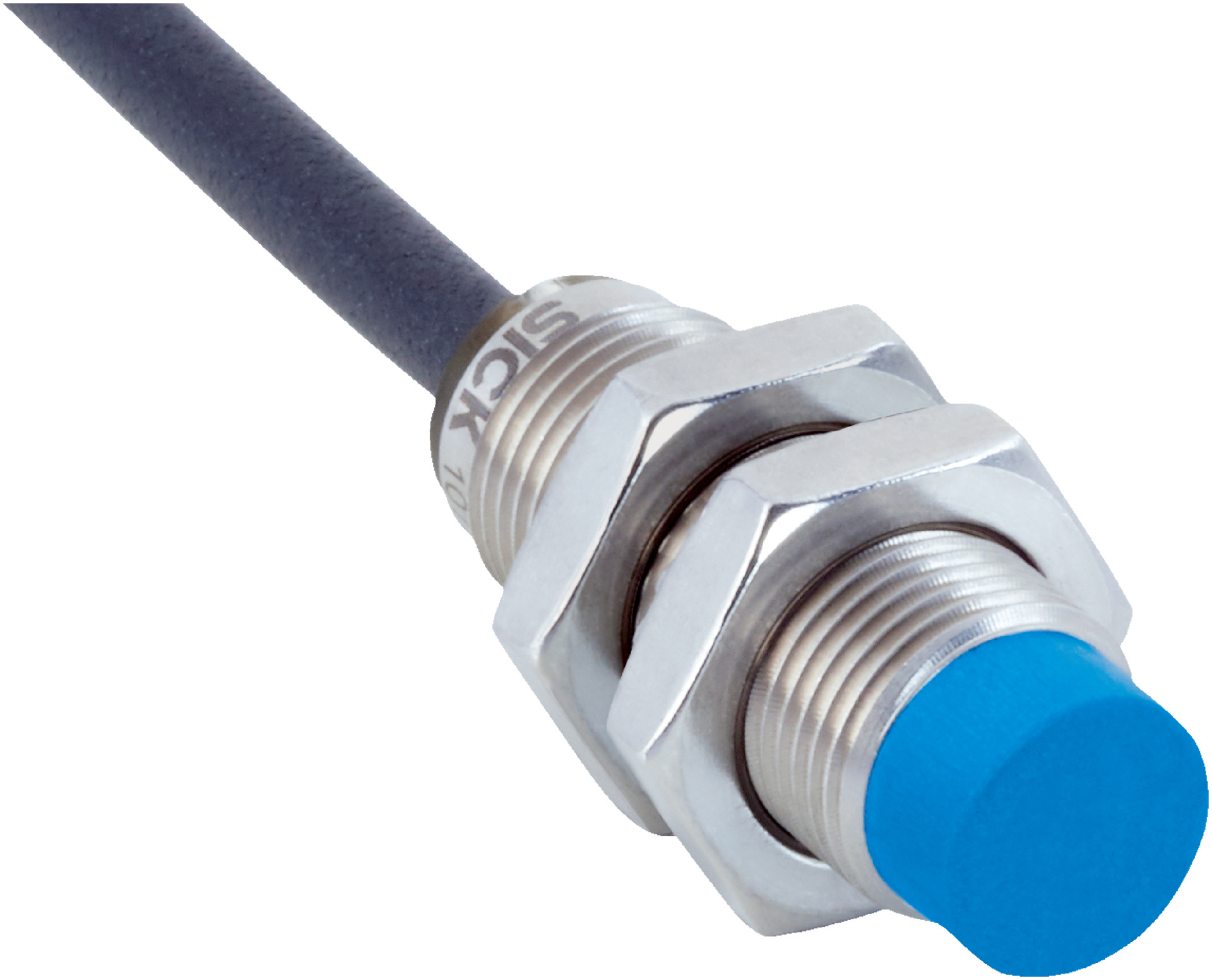

M12 Inductive Proximity Sensor | Short-body Nickel-Plated Brass | 8mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body nickel-plated brass housing and an 8mm sensing range. With a high switching frequency of 2,000 Hz and robust IP67/IP68/IP69K enclosure ratings, this sensor is perfect for harsh environments, including those with coolants and lubricants. Ideal for mobile machines and applications requiring durability and precision.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, nickel-plated brass
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Installation type: Non-flush
- Switching frequency: 2,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67, IP68, IP69K
- Special features: Resistant to coolant lubricants, temperature resistance
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Environmental test: Quick temperature change EN 60068-2-14
- Corrosion test: Salt spray test EN 60068-2-52 severity 5
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR
- Conductor size: 0.25 mm²
- Cable diameter: 3.9 mm
- Bending radius: Fixed installation > 5x cable diameter, flexible use > 10x cable diameter
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: EN 60068-2-6 Fc 60 g peak, EN 60068-2-27 Ea 100 g 2 ms sinusoidal
- Indication LED: Yellow, permanently on when switching output active
- Ambient operating temperature: -40 °C to +85 °C
- Housing length: 35 mm
- Thread length: 26 mm
- Tightening torque max: ≤ 12 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 35mm x 35mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Non-flush installation type with 8 mm sensing range
- High switching frequency of 2,000 Hz
- PNP switching output with NC function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
- Resistant to harsh environments reducing risk of failure and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMG12-08NPOZU2K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
