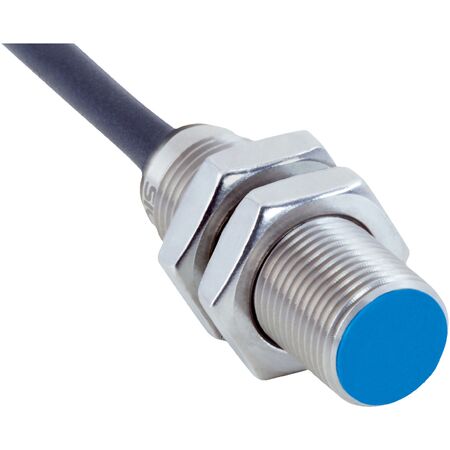

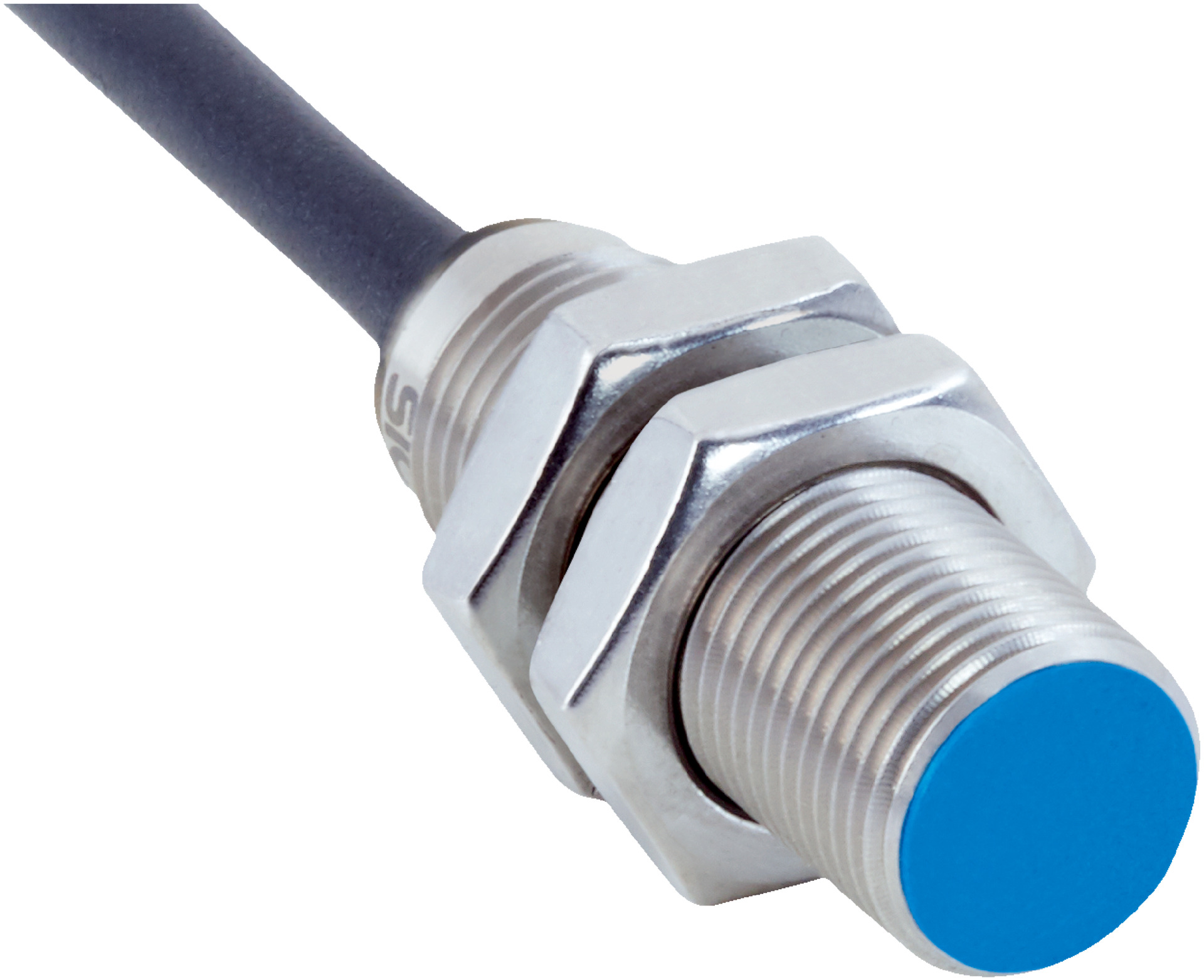

M12 Inductive Proximity Sensor | Short-body Design | NPN Output | IP67/IP68/IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation. With a short-body housing and NPN normally open output, it operates in harsh environments with an impressive sensing range of 4 mm. Rated IP67/IP68/IP69K, this sensor withstands coolant lubricants and temperature variations, making it ideal for mobile machines and challenging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Switching output: NPN, normally open
- Current rating: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PUR, 3-wire, 2 m length, 0.25 mm² conductor size
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Shock resistance: 100 g, vibration resistance: 60 g peak
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 35mm x 35mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency up to 2,000 Hz
- NPN normally open switching output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67, IP68, and IP69K for high protection
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG12-04BNSZU2K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
