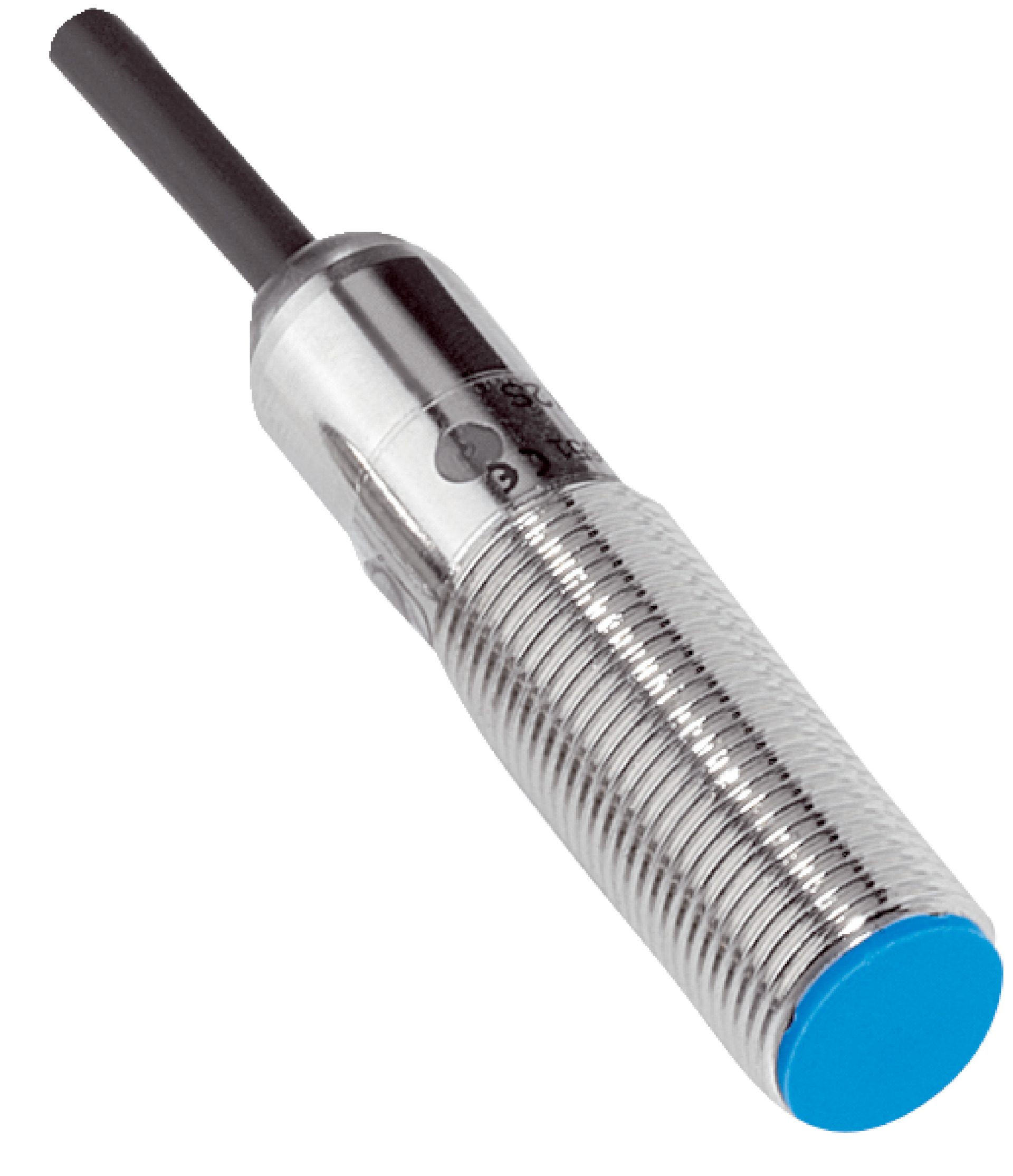

M12 Inductive Proximity Sensor | Short-body Design | PNP Output | IP67 Rated | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a short-body design and a high switching frequency of 800 Hz. With an IP67 rating for dust and water protection, this sensor is perfect for manufacturing lines and automation systems, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 800 Hz
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable length: 7 m, PVC material
- Conductor size: 0.25 mm²
- Cable diameter: 3.9 mm
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Operating temperature: -25°C to +75°C
- Storage temperature: -25°C to +75°C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 44mm x 44mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body M12 threaded housing with brass, nickel-plated material
- Sensing range of 6 mm with triple sensing range feature
- Quasi-flush installation type
- High switching frequency of 800 Hz
- PNP normally open switching output
- Cable connection with 3-wire, 7 m PVC cable
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring reliable proximity sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

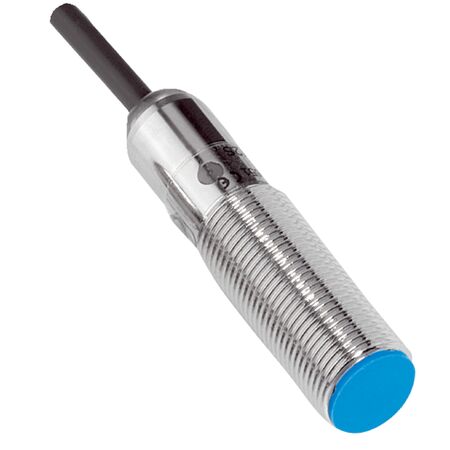

The SICK IME12-06BPSZWDK inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
