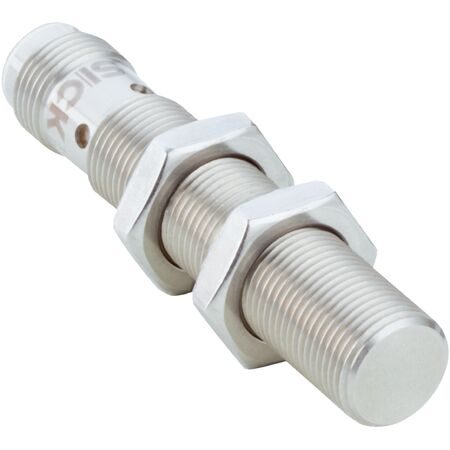

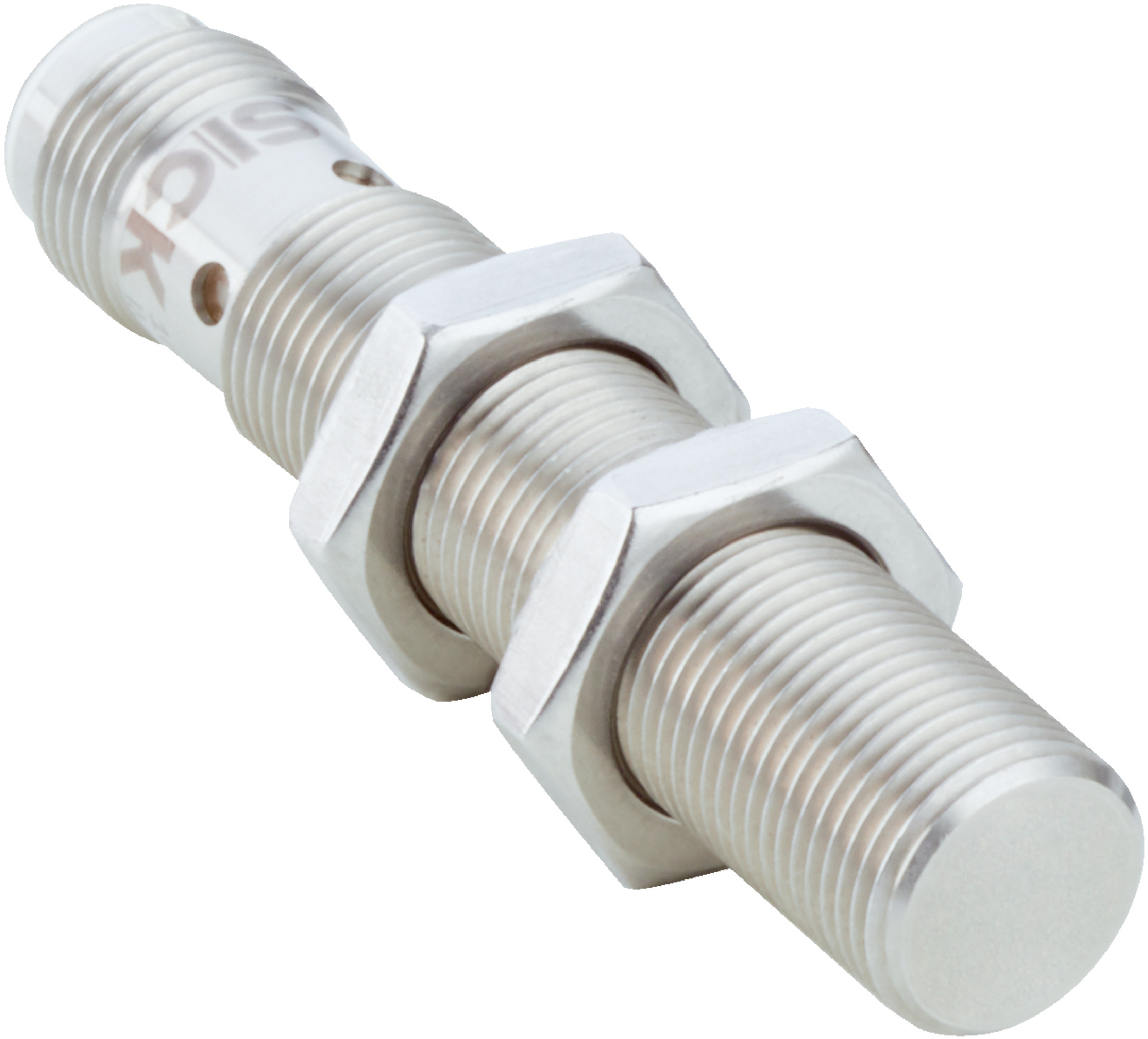

M12 Inductive Proximity Sensor | Stainless Steel Flush Mount | IP68 & IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for robust industrial automation, featuring a stainless steel flush mount and an IP68/IP69K rating for high protection in hygienic zones. With a sensing range of 4 mm and a switching frequency of 75 Hz, this sensor is perfect for challenging applications requiring durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection and power-up pulse protection included
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Switching output: PNP normally closed
- Connection type: Male connector M12, 4-pin
- Dimensions (H x L x W): 12mm x 63.8mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency of 75 Hz with PNP normally closed output
- Male connector M12, 4-pin connection
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- Robust stainless steel V4A housing and sensing face material
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant with high durability
- Wide ambient operating temperature from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connection according to manufacturer guidelines.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush mounting sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IMI12-04BPONC0S sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
