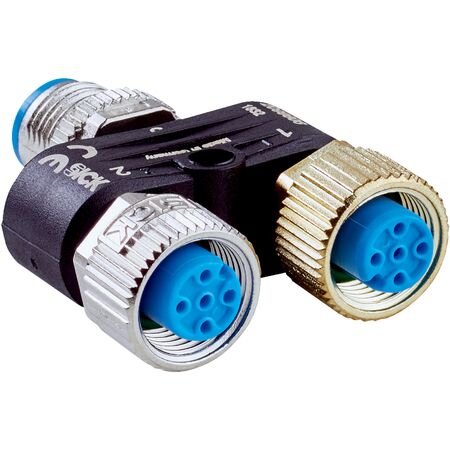

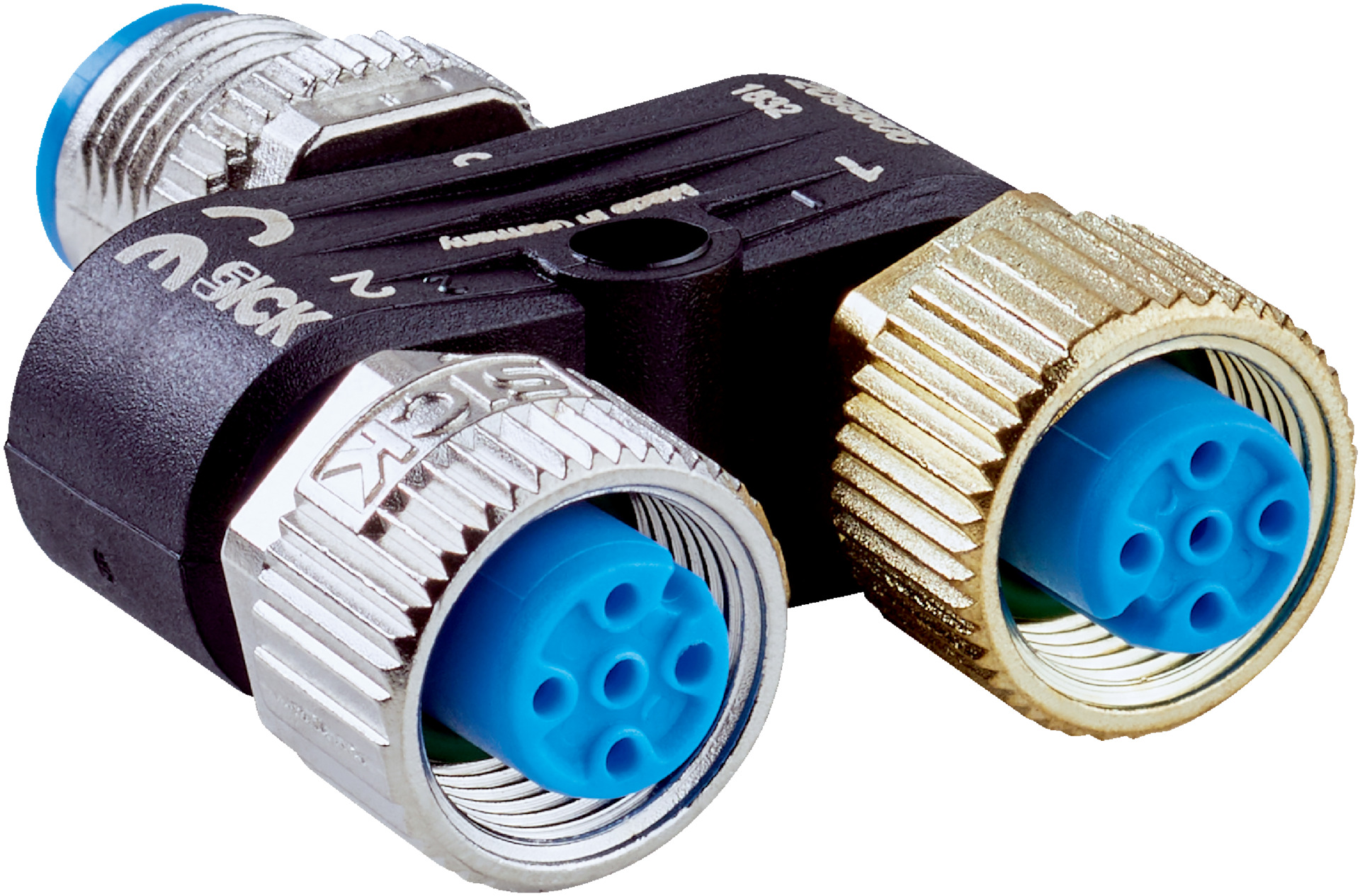

M12 Industrial Connector | 5-Pin Male & 4-Pin Female | IP65/IP66/IP67 Rated | by SICK
The M12 Industrial Connector is designed for robust connections in industrial automation systems, featuring a 5-pin male connector and dual 4-pin female connectors. With an IP65/IP66/IP67 rating, it ensures protection against dust and water, making it ideal for harsh environments. Built for reliable sensor and actuator connections, this connector supports current loading up to 4 A and operates within a temperature range of -25°C to +85°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, A-coded
- Connection type head B: Female connector, M12, 4-pin, A-coded
- Connection type head C: Female connector, M12, 4-pin, A-coded
- Locking plug connector: Screw connection
- Locking nut material: Zinc die-cast, nickel-plated
- Width across flats: 13 mm
- Tightening torque: 0.6 Nm
- Shielding: Unshielded
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Insulation resistance: 100 MΩ
- Contamination rating: 3
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: -25 °C to +85 °C
- UL File No.: E335179
- Dimensions (H x L x W): 20mm x 50mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 5-pin, A-coded on head A
- Female connector M12, 4-pin, A-coded on heads B and C
- Screw connection locking plug
- Zinc die-cast, nickel-plated locking nut
- Unshielded design
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range from -25°C to +85°C
- Rated impulse voltage of 1.5 kV
- Current loading up to 4 A
- Contamination rating 3
- Overvoltage category III
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial electrical connectors to ensure proper connection and safety compliance.
Applications
- Industrial automation systems
- Sensor and actuator connections
- Factory and process automation
- Harsh environment electrical connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- High protection rating prevents ingress of dust and water, enhancing longevity
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2A15-000S01FY2A4 industrial connector is available for immediate purchase, ideal for industrial automation and harsh environment applications.
