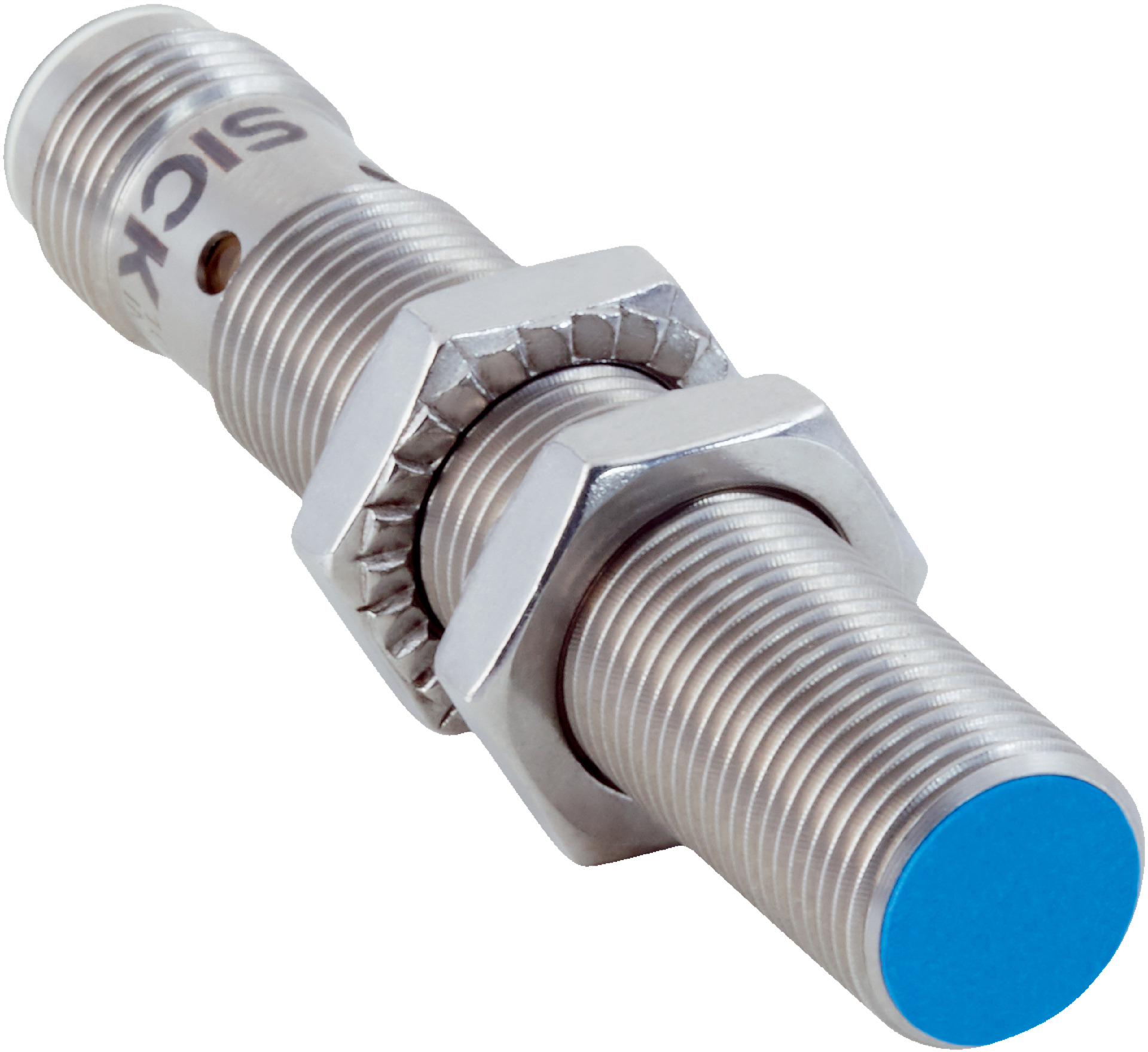

M12 IO-Link Proximity Sensor | IP68 & IP69K Rated | Stainless Steel Housing | 4 Adjustable Switching Points | by SICK
The M12 IO-Link Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and an IP68/IP69K rating for harsh environments. With a sensing range of 0 to 4 mm and up to 4 adjustable switching points, it’s perfect for object detection in areas with coolants and lubricants. Built for reliability, this sensor ensures accurate performance even under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- Switching frequency: 1,000 Hz
- Communication interface: IO-Link V1.1 COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Operating temperature: -40 °C to +75 °C
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 housing with Ø 12 mm diameter
- Sensing range 0 mm to 4 mm with safe sensing range of 3.24 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency up to 1,000 Hz
- Flush installation type with male M12 4-pin connector
- PNP programmable switching output with NC/NO function
- Electrical wiring DC 4-wire with short-circuit and power-up pulse protection
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task functionality with IO-Link communication interface
- Resistant against coolant lubricants
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Operating temperature range from -40 °C to +75 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct flush mounting and electrical connection according to industrial standards.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

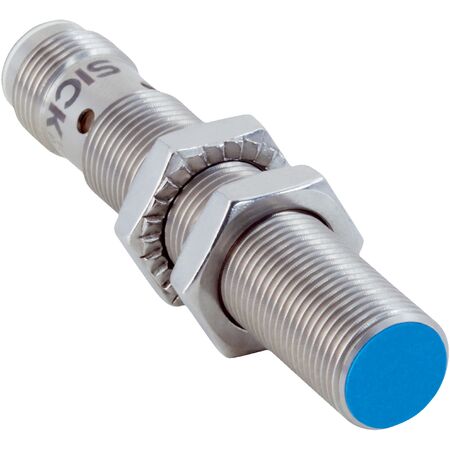

The SICK IMC12-04BPPVC0SA70 sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
