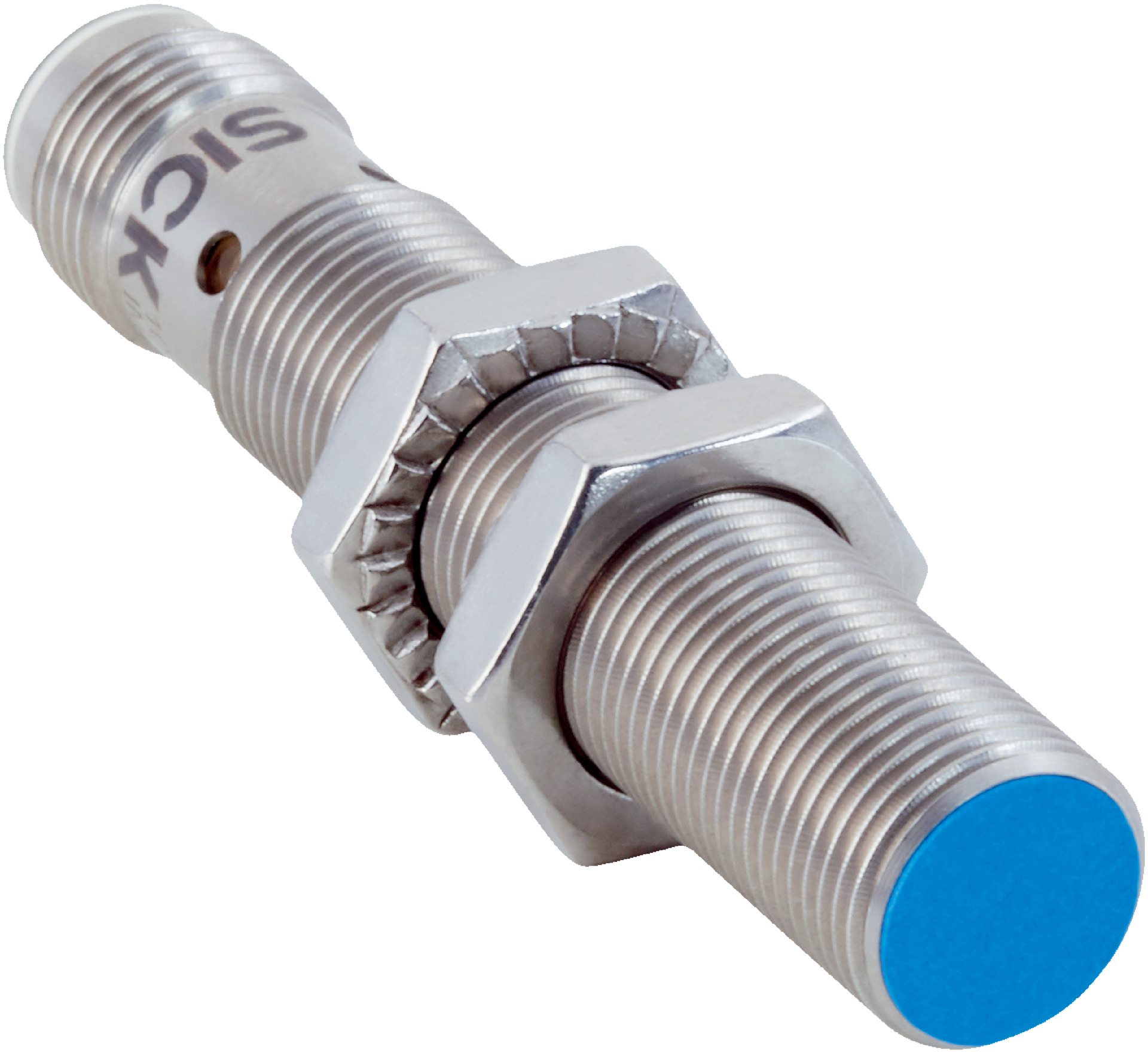

M12 IO-Link Proximity Sensor | Stainless Steel Housing | IP68 & IP69K Rated | Programmable Hysteresis | by SICK
The M12 IO-Link Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and an IP68/IP69K rating for harsh environments. With a sensing range of 0 to 4 mm and up to 4 adjustable switching points, it’s perfect for object detection in areas with coolants and lubricants. This sensor ensures reliable performance with programmable hysteresis and shock resistance, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Programmable hysteresis
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Resolution typical: 10 µm (0-1 mm), 20 µm (1-3 mm), 40 µm (3-4 mm)
- Resolution maximum: 20 µm (0-1 mm), 40 µm (1-3 mm), 75 µm (3-4 mm)
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Process data length: 32 Bit
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 housing with Ø 12 mm diameter
- Sensing range 0 mm to 4 mm with safe sensing range of 3.24 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency up to 1000 Hz
- Flush installation type with male M12 4-pin connector
- PNP programmable switching output with NC/NO function
- Electrical wiring DC 4-wire with short-circuit and power-up pulse protection
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task functionality with counter and debouncing
- Resistant against coolant lubricants
- Communication via IO-Link V1.1 with 5 ms cycle time
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
- Operating temperature range from -40 °C to +75 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper flush mounting and secure connection of the M12 connector. Follow manufacturer installation guidelines.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Resistant to harsh environments reducing risk of sensor failure and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

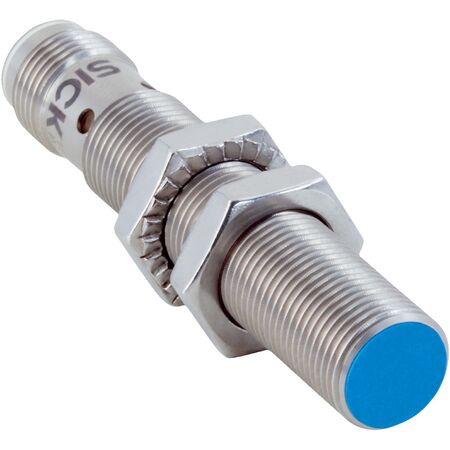

The SICK IMC12-04BPPVC0SA71 sensor is available for immediate purchase. Ideal for industrial automation applications requiring reliable sensing in harsh environments.
