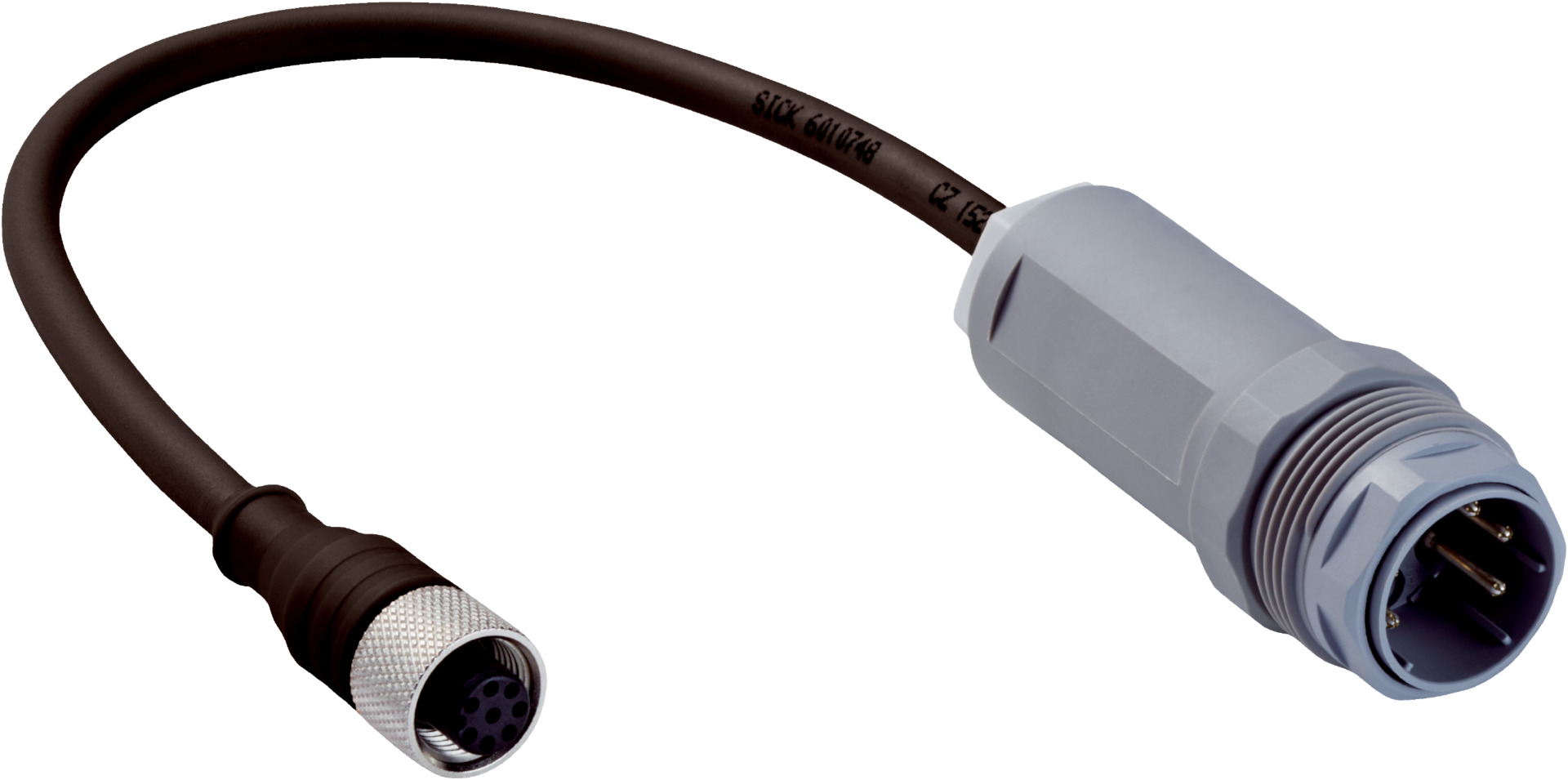

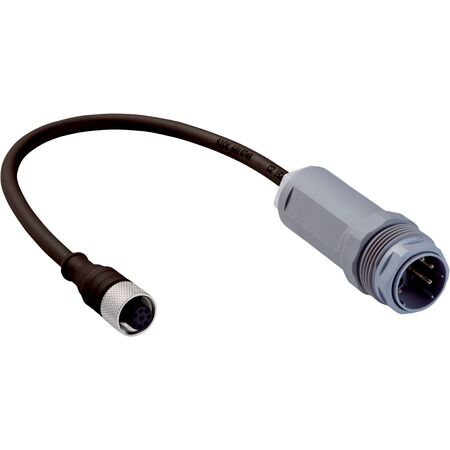

M12 to M26 Connector Cable | 8-Pin Female & 7-Pin Male | Halogen-Free PUR | by SICK
The M12 to M26 Connector Cable is designed for industrial automation and sensor connectivity, featuring an 8-pin female connector and a 7-pin male connector. Built with durable halogen-free PUR material, this cable withstands operating temperatures from -20°C to +80°C, making it ideal for environments with oils and lubricants. Perfect for machine and equipment wiring, it ensures reliable connections in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Male connector, M26, 7-pin, straight
- Connector material: Female connector TPU, Male connector PET
- Locking nut material: CuZn, nickel-plated brass
- Cable length: 0.25 m
- Cable jacket material: PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Operating temperature flexible use: -20°C to +80°C
- Operating temperature stationary position: -40°C to +80°C
- Head temperature range: -25°C to +80°C
- Dimensions (H x L x W): 20mm x 250mm x 60mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 8-pin, straight
- Male connector M26, 7-pin, straight
- Connector materials: TPU (female), PET (male)
- Locking nut made of nickel-plated brass (CuZn)
- Cable is 0.25 m long, PUR, halogen-free
- Cable diameter 6 mm with 0.25 mm² conductor cross section
- Unshielded cable
- Operating temperature range: Flexible use -20°C to +80°C, Stationary -40°C to +80°C
- Suitable for use in zones with oils and lubricants
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and sensor connectivity
- Zones with oils and lubricants
- Machine and equipment wiring requiring robust connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces environmental impact in case of disposal or fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DSL-6130GM25034KM1 connector cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
