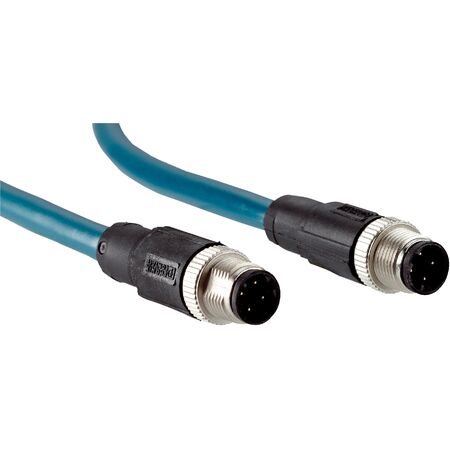

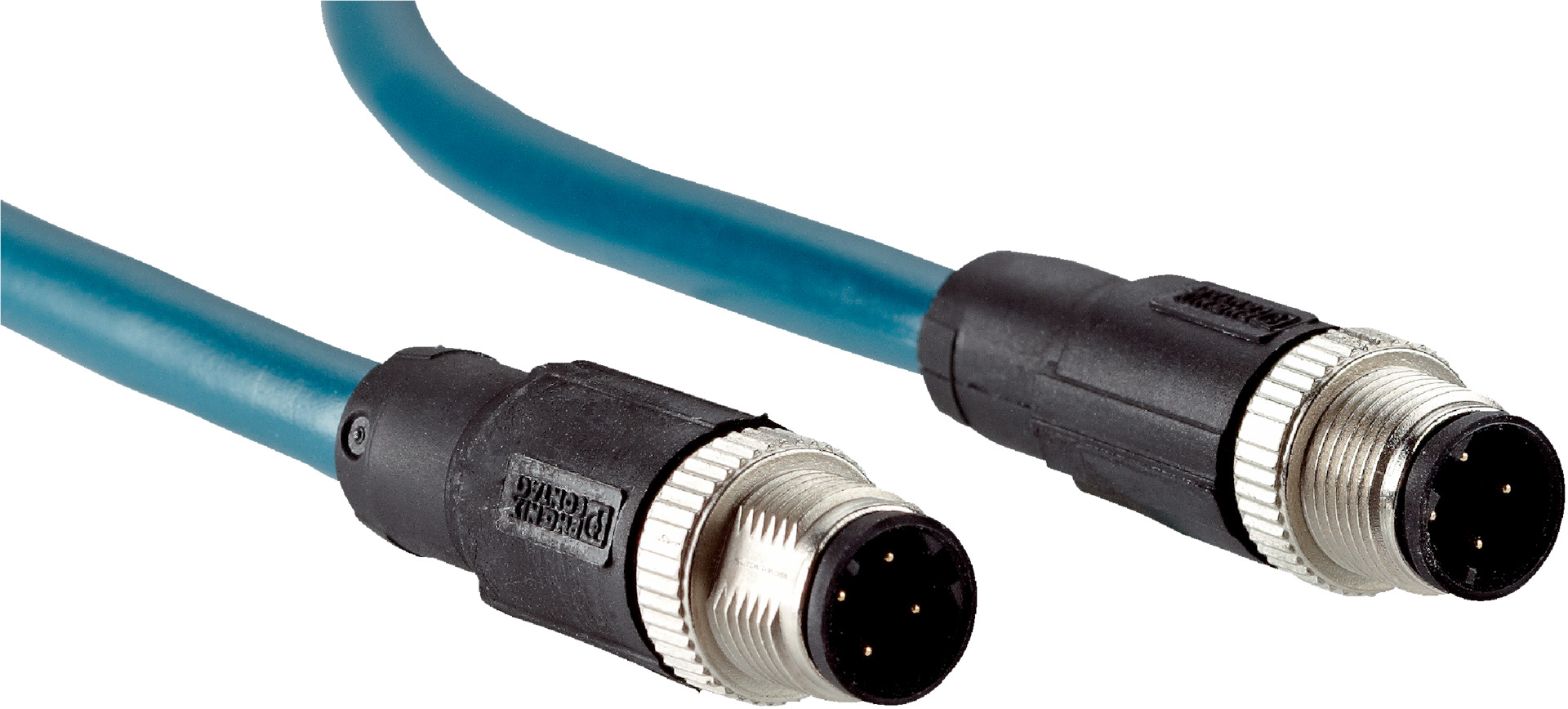

M12 Male to Male PROFINET Cable | 4-Pin Straight D-Coded | Shielded & Halogen-Free | by SICK
The M12 Male to Male PROFINET Cable is designed for reliable data transmission in industrial automation and control systems. Featuring a 4-pin straight D-coded male connector on both ends, this shielded cable ensures protection against interference. With a durable halogen-free PUR jacket, it's perfect for PROFINET communication networks, providing safety and longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 15 m
- Cable wire gauge: AWG22
- Jacket material: PUR, halogen-free
- Cable diameter: 6.5 mm
- Shielding: Shielded
- Signal type: PROFINET
- Dimensions (H x L x W): 6.5mm x 6500mm x 6500mm
- Weight: 0.5 kg
Key Features
- Male connector, M12, 4-pin, straight, D-coded on both ends
- Shielded cable for interference protection
- Halogen-free PUR jacket material for safety and durability
- 15 meters cable length with AWG22 wire gauge
- Locking nut made of zinc die-cast, nickel-plated for secure connections
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- PROFINET communication networks
- Factory and process automation requiring reliable data transmission
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact and improves safety in case of fire
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK Connection Cable Male Connector to Male Connector M12 4-pin PROFINET is available for immediate purchase, ideal for industrial automation and PROFINET network applications.
