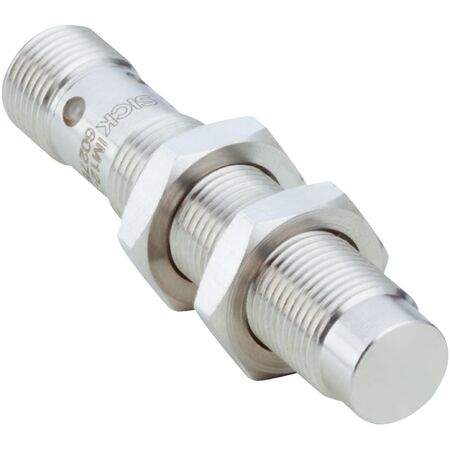

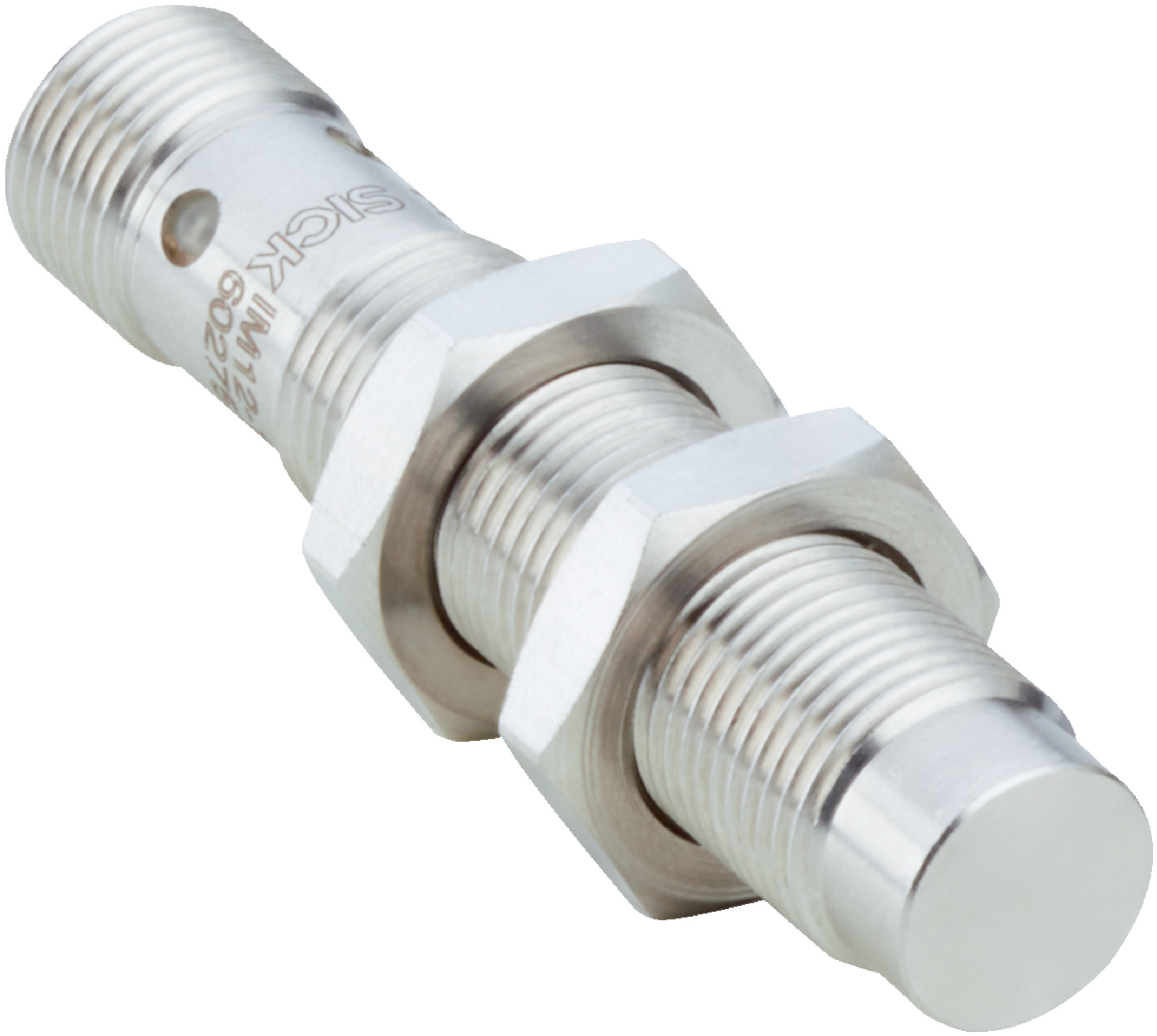

M12 Non-Flush Proximity Sensor | IP68 & IP69K Rated | Stainless Steel V4A | by SICK
The M12 Non-Flush Proximity Sensor is designed for robust sensing in hygienic and washdown zones, featuring an IP68 and IP69K rating for high protection against dust and water. With a sensing range of 10 mm and a durable stainless steel V4A construction, this sensor is perfect for industrial automation applications that require reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 40 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 30 g, 11 ms; vibration resistance: 10 to 55 Hz, 1 mm
- Operating temperature range: -25 °C to +85 °C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- UL File No.: E191603
- Dimensions (H x L x W): 60mm x 60mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Non-flush installation type
- Switching frequency of 400 Hz
- Male connector M12, 4-pin connection
- NPN normally open switching output
- DC 3-wire electrical wiring
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A resistant to cleaning agents
- Triple sensing range with visual adjustment indicator
- Includes mounting nut and washers made of V4A stainless steel
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and electrical connections according to manufacturer guidelines.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring non-flush sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments reducing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IM12-10NNS-NC1 sensor is available for immediate purchase, ideal for industrial automation and hygienic applications requiring durable and reliable sensing.
