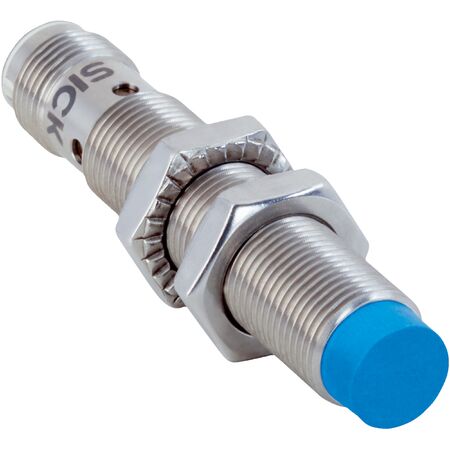

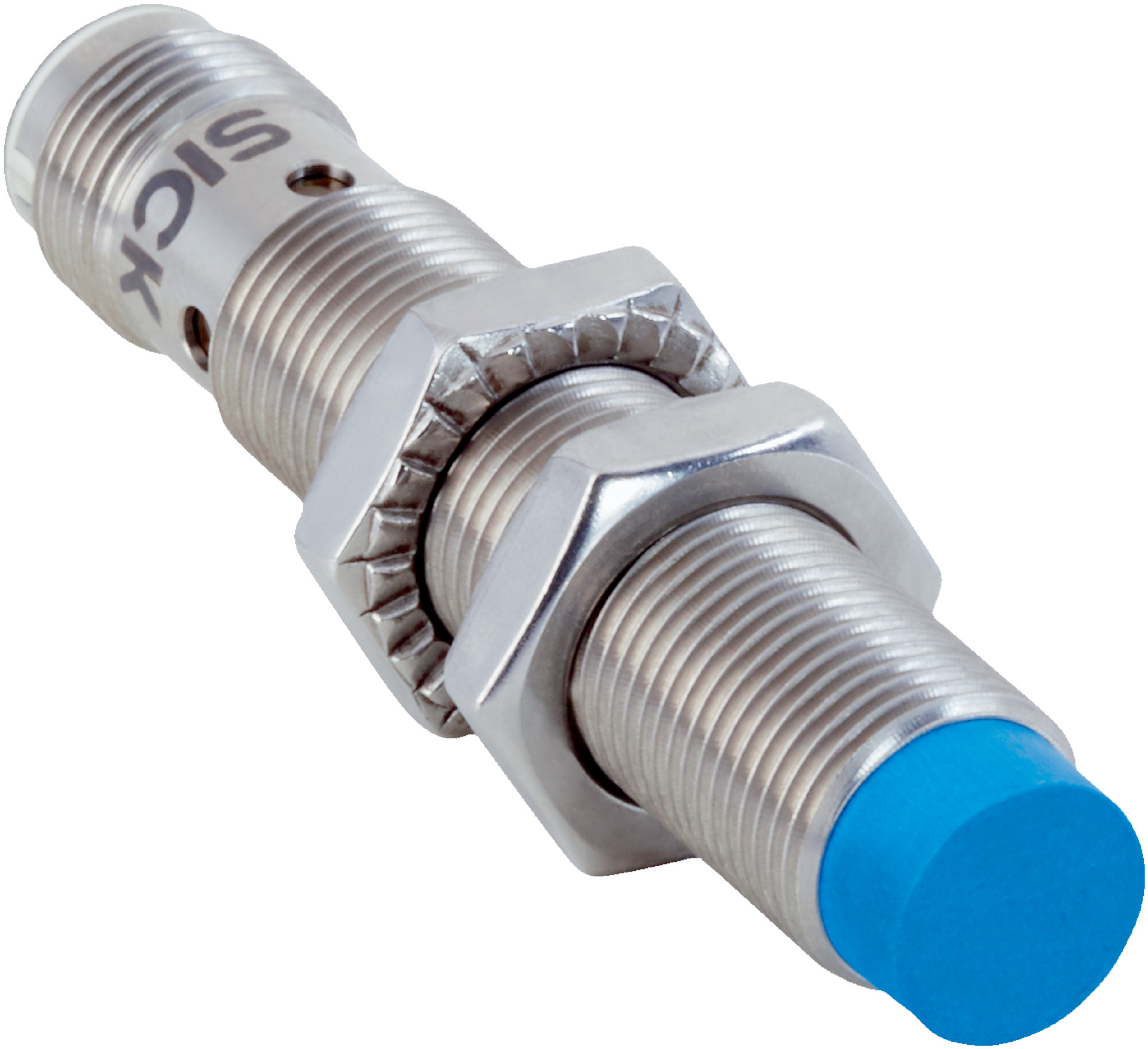

M12 PNP IO-Link Sensor | 0-8mm Sensing Range | IP68/IP69K Rated | by SICK
The M12 PNP IO-Link Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 0 mm to 8 mm and a safe sensing range of 6.48 mm. With up to 4 adjustable switching points and a high switching frequency of 1000 Hz, this sensor is perfect for machine safety and control systems, especially in environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M12 x 1 thread
- Diameter: 12 mm
- Sensing range Sn: 0 mm to 8 mm
- Safe sensing range Sa: 6.48 mm
- Number of switching points: Up to 4 adjustable
- Switching modes: Single point, window mode, two point mode
- Switching frequency: 1000 Hz
- Installation type: Non-flush
- Connection type: Male M12 4-pin connector
- Switching output: PNP, programmable NC/NO
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Special features: Smart Task logic, coolant lubricant resistance, IO-Link V1.1
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Ambient operating temperature: -40 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Thread length: 43 mm
- Tightening torque max: 32 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range of 0 mm to 8 mm with safe sensing range of 6.48 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- High switching frequency of 1000 Hz
- Non-flush installation type with male M12 4-pin connector
- PNP programmable switching output with NC/NO function
- Electrical wiring: DC 4-wire
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task logic functions including AND, OR, XOR, hysteresis
- Resistant against coolant lubricants
- Communication interface IO-Link V1.1 with COM2 38.4 kBaud
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Shock and vibration resistant
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure correct wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- IO-Link communication enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMC12-08NPPVC0SB00 sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
