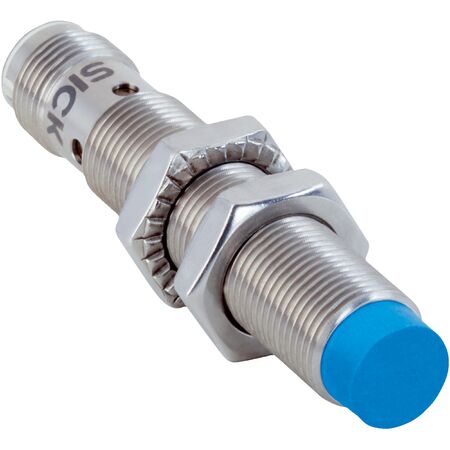

M12 PNP Proximity Sensor | IP68 & IP69K Rated | Adjustable Switching Points | Stainless Steel Housing | by SICK
The M12 PNP Proximity Sensor is designed for industrial automation, featuring an IP68 and IP69K rating for harsh environments. With a sensing range of up to 8 mm and up to 4 adjustable switching points, it’s perfect for object detection in challenging conditions. Built with a durable stainless steel housing, this sensor ensures reliable performance even in the presence of coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Programmable hysteresis
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Resolution typical: 20 μm (0-4 mm), 50 μm (4-6 mm), 100 μm (6-8 mm)
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range up to 8 mm with safe sensing range of 6.48 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency of 1,000 Hz
- Non-flush installation type with male M12 4-pin connector
- PNP switching output with programmable NC/NO function
- Electrical wiring DC 4-wire
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task functionality with time measurement and debouncing
- Resistant against coolant lubricants
- Communication via IO-Link V1.1 with COM2 38.4 kBaud
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and configuration, especially for IO-Link communication setup.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official warranty policy.
Available Now
The SICK IMC12-08NPPVC0SA70 sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
