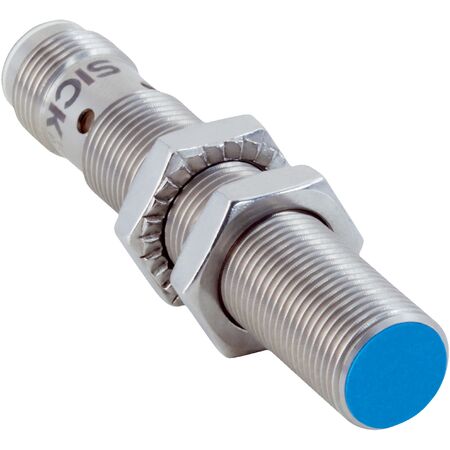

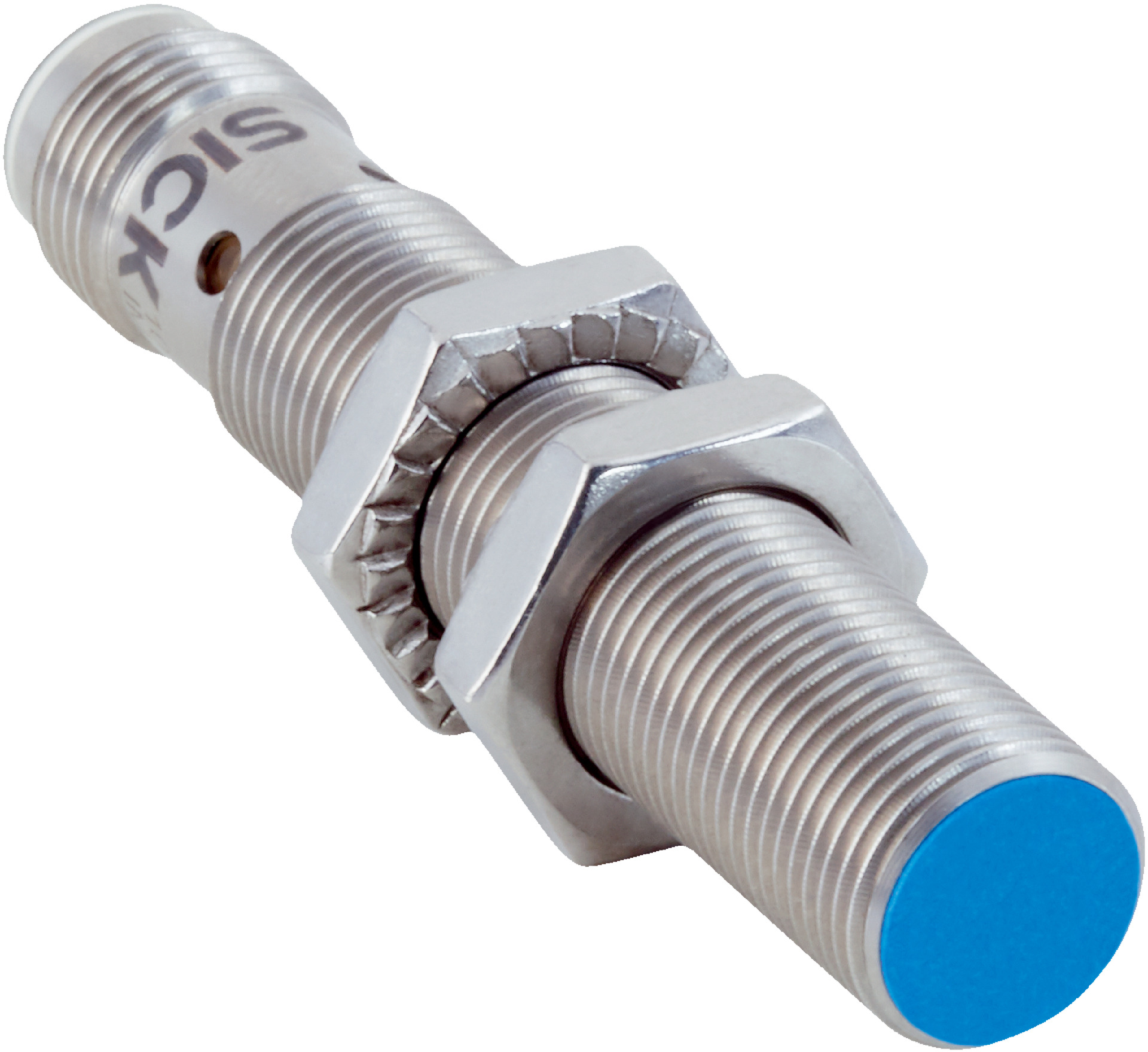

M12 PNP Proximity Sensor | IP68 & IP69K Rated | IO-Link Communication | by SICK
The M12 PNP Proximity Sensor is designed for precise object detection in industrial automation, featuring an IP68 and IP69K rated enclosure for harsh environments. With a high switching frequency of 1000 Hz and a sensing range of up to 4 mm, this sensor is perfect for machine safety and control systems, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 1% of taught-in digital value
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- Switching frequency: 1000 Hz
- Resolution typical: 10 μm (0-1 mm), 20 μm (1-3 mm), 40 μm (3-4 mm)
- Resolution maximum: 20 μm (0-1 mm), 40 μm (1-3 mm), 75 μm (3-4 mm)
- Communication interface: IO-Link V1.1 COM2 (38.4 kBaud)
- Process data length: 32 Bit
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Thread size: M12 x 1
- Switching output: PNP normally open
- Electrical wiring: DC 4-wire
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 housing with Ø 12 mm diameter
- Sensing range of 0 mm to 4 mm with safe sensing range of 3.24 mm
- Single point switching mode with PNP output
- Flush installation type with male M12 4-pin connector
- IP68 and IP69K rated enclosure for harsh environments
- IO-Link communication interface V1.1 with 5 ms cycle time
- High switching frequency of 1000 Hz
- Short-circuit and power-up pulse protection
- Shock and vibration resistant withstanding up to 150 g
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Teach-in function reduces digital switching point by 30 digits
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and secure electrical connections according to industrial standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Factory and process automation requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with efficient DC 4-wire electrical wiring
- IO-Link interface enables smart communication reducing unnecessary energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMC12-04BPPVC0SB02 sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
