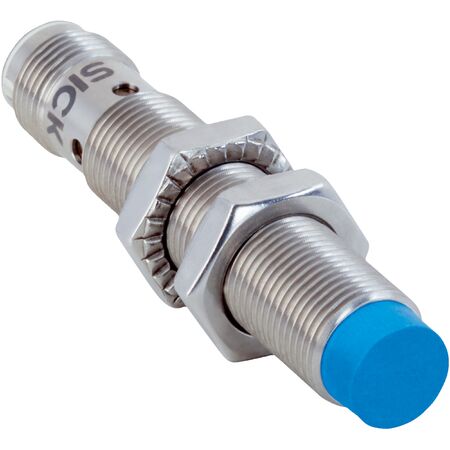

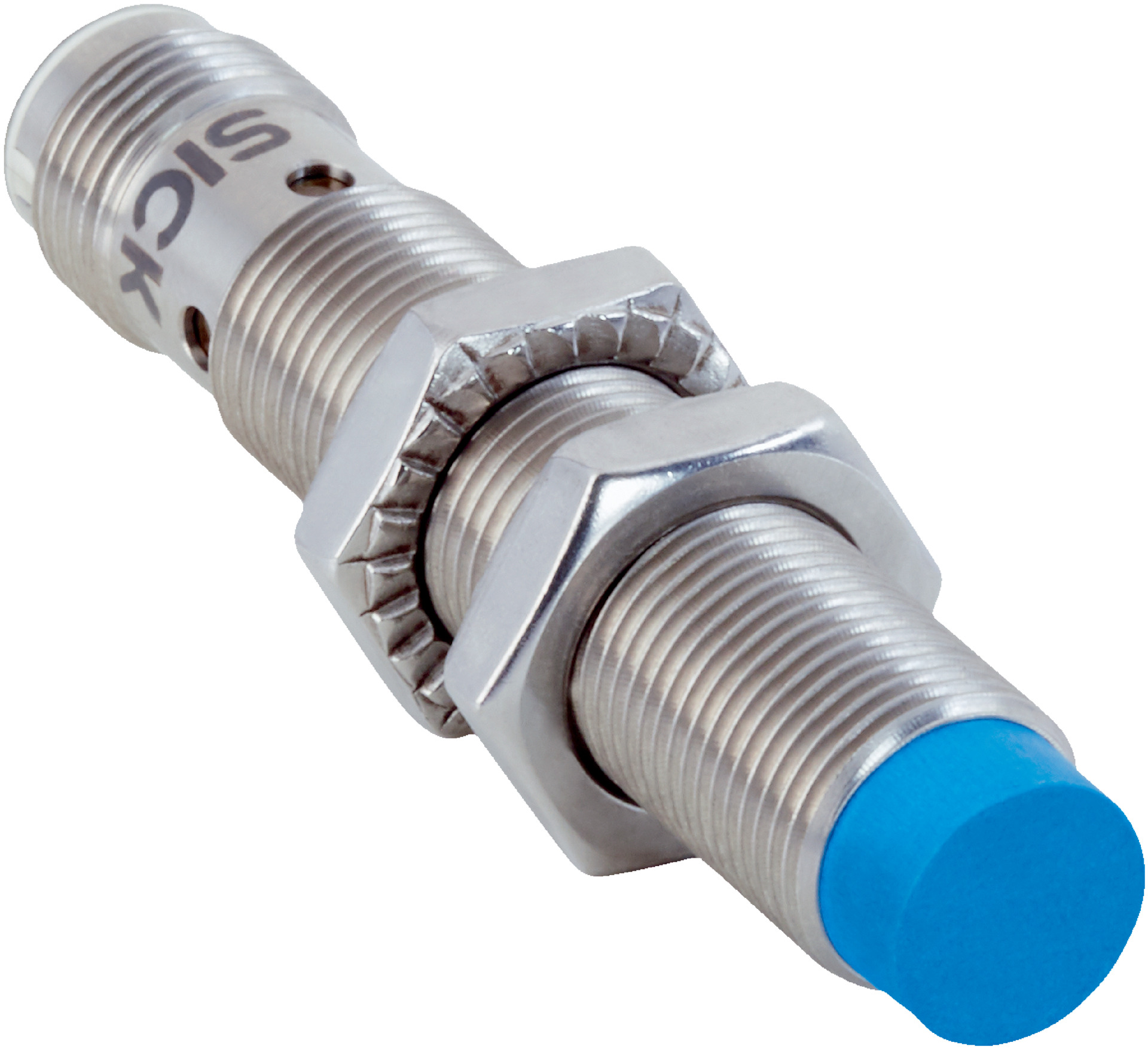

M12 PNP Proximity Sensor | IP68 & IP69K Rated | Stainless Steel Housing | 1000 Hz Switching Frequency | by SICK
The M12 PNP Proximity Sensor is designed for reliable object detection in industrial automation, featuring an IP68 and IP69K enclosure rating for harsh environments. With a sensing range of up to 8 mm and a robust stainless steel housing, this sensor is perfect for machine safety and control systems, ensuring durability and performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current: ≤ 200 mA
- Switching frequency: 1000 Hz
- Resolution typical: 20 μm (0-4 mm), 50 μm (4-6 mm), 100 μm (6-8 mm)
- Resolution maximum: 40 μm (0-4 mm), 100 μm (4-6 mm), 200 μm (6-8 mm)
- Communication interface: IO-Link V1.1 COM2 (38.4 kBaud)
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Operating temperature: -40 °C to +75 °C
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 housing with Ø 12 mm diameter
- Sensing range from 0 mm to 8 mm with safe sensing range of 6.48 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency of 1000 Hz
- Non-flush installation type with male M12 4-pin connector
- PNP switching output with programmable NC/NO function
- Electrical wiring: DC 4-wire
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task functionality with counter and debouncing
- Resistant against coolant lubricants
- Communication via IO-Link V1.1 with COM2 38.4 kBaud
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Shock and vibration resistant
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Environments with coolant lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient DC 4-wire operation minimizes power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMC12-08NPPVC0SA71 sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
