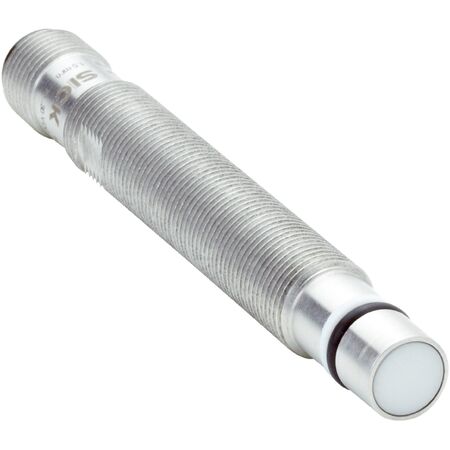

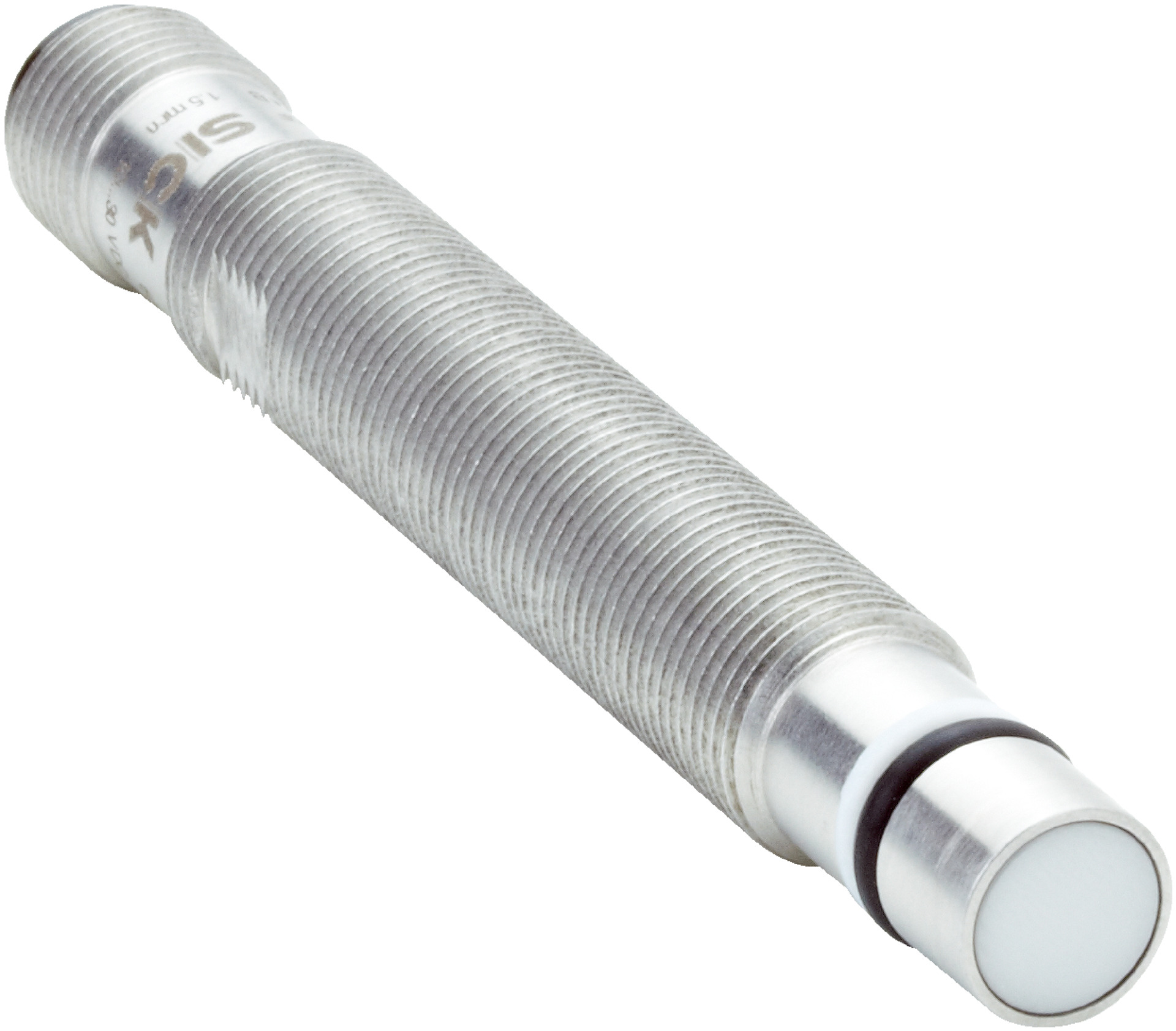

M12 Pressure Resistant Sensor | 500 Bar Pressure Resistance | IP68 Rated | NPN Output | by SICK
The M12 Pressure Resistant Sensor is designed for hydraulic applications, offering a remarkable pressure resistance of up to 500 bar and an IP68 rated enclosure for superior dust and water protection. With a sensing range of 1.5 mm and a robust stainless steel housing, this sensor is perfect for industrial automation and machinery sensing, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of sensing range: ≤ 15%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Large sealing ring size: 5.3 mm x 2.4 mm
- Size support ring: 10 mm x 5.9 mm x 1 mm
- Tightening torque max: ≤ 40 Nm
- Connection type: Male connector M12, 4-pin
- Dimensions (H x L x W): 12mm x 93mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Flush installation type
- Switching frequency of 600 Hz
- NPN switching output with normally open function
- DC 3-wire electrical wiring
- IP68 rated enclosure for dust and water protection
- High pressure resistant design suitable for hydraulic applications
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Operating temperature range from -25 °C to +80 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Sealing ring made of FPM
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with hydraulic sensor installations and electrical wiring standards.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments requiring flush installation and high durability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High pressure resistance reduces need for frequent replacements
- IP68 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMP12-1B5NSVC0F sensor is available for immediate purchase, ideal for hydraulic and industrial sensing applications requiring high pressure resistance.
