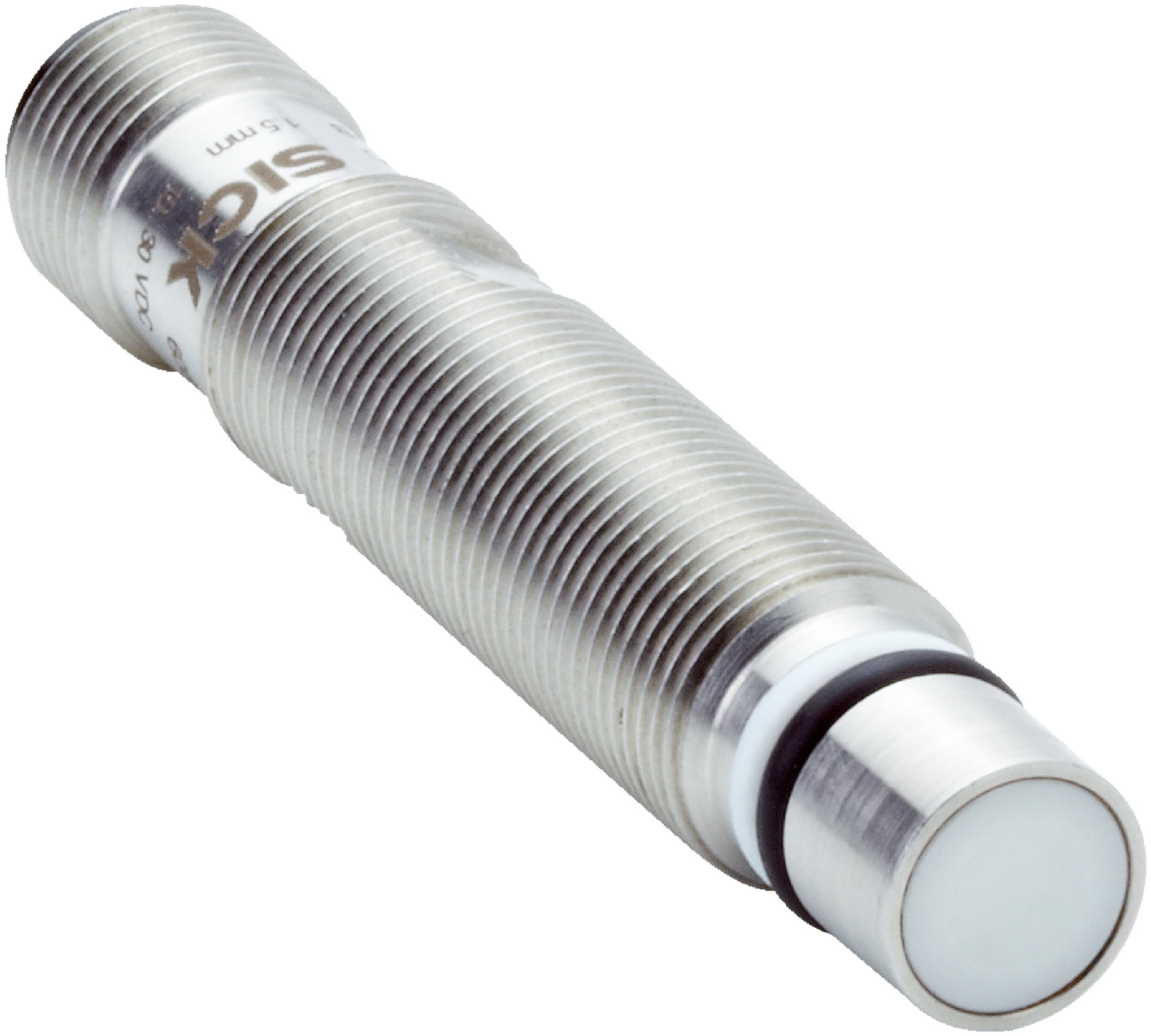

M12 Pressure Resistant Sensor | 500 Bar Pressure Resistance | IP68 Rated | PNP Output | by SICK
The M12 Pressure Resistant Sensor is designed for hydraulic applications, offering a robust 500 bar pressure resistance and an IP68 rating for dust and water protection. Ideal for industrial automation, this sensor features a flush installation type and a PNP output, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of sensing range: ≤ 15%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Large sealing ring size: 5.3 mm x 2.4 mm
- Size support ring: 10 mm x 5.9 mm x 1 mm
- Tightening torque max: ≤ 40 Nm
- MTTFD: 171 years
- Mission time: 20 years
- Dimensions (H x L x W): 12mm x 56mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Flush installation type
- Switching frequency of 600 Hz
- PNP switching output with NO output function
- Male connector M12, 4-pin connection type
- Electrical wiring: DC 3-wire
- Enclosure rating IP68 for dust and water protection
- High pressure resistant design suitable for hydraulic applications
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Ambient operating temperature range from –25 °C to +80 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Sealing ring made of FPM
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper mounting torque and electrical connections according to safety standards.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments needing flush installation sensors with high durability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High pressure resistance minimizes need for frequent replacements
- IP68 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

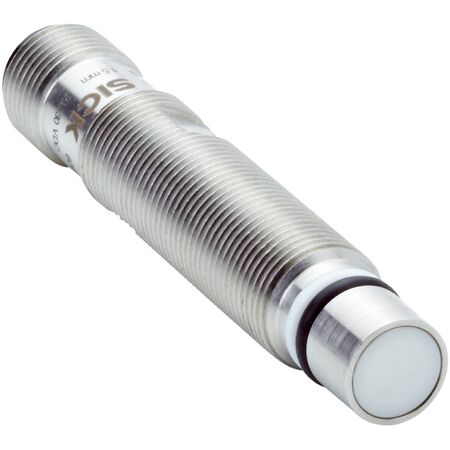

The SICK IMP12-1B5PSVC0B sensor is available for immediate purchase, ideal for hydraulic and industrial sensing applications requiring high pressure resistance.
