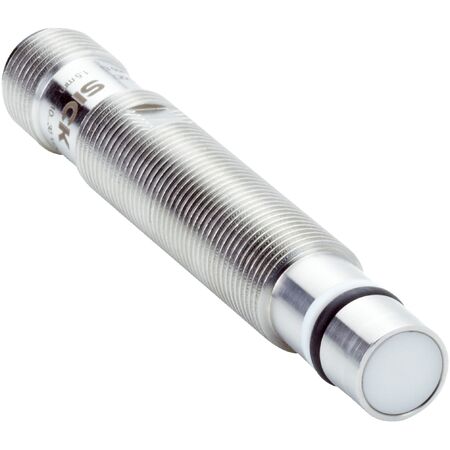

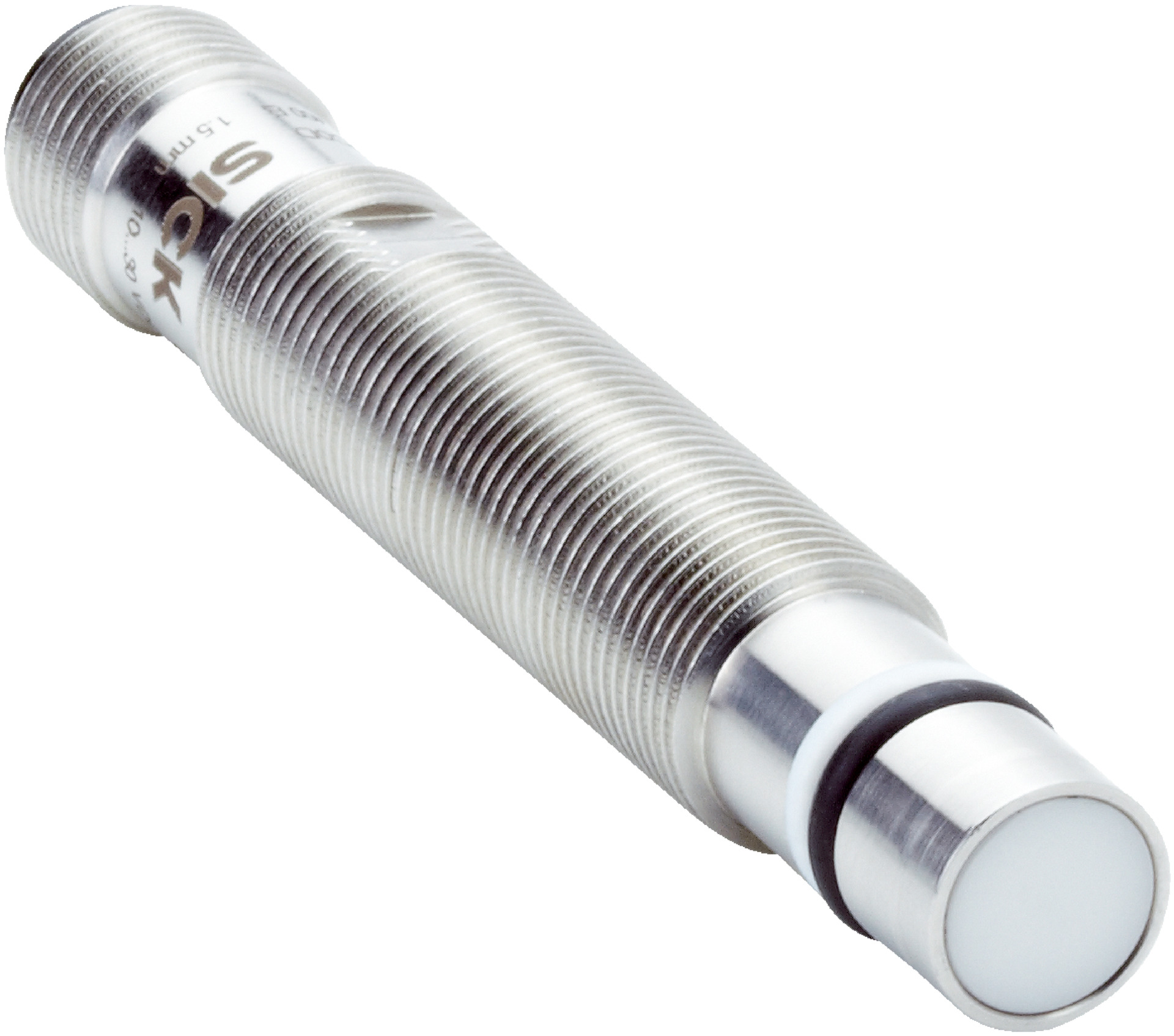

M12 Pressure Resistant Sensor | 500 Bar | IP68 Rated | Stainless Steel Housing | by SICK
The M12 Pressure Resistant Sensor is designed for hydraulic applications, offering a robust pressure resistance of up to 500 bar and a sensing range of 1.5 mm. With its IP68 rated enclosure and durable stainless steel housing, this sensor is perfect for industrial automation and control systems, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M12 x 1 thread size
- Diameter: 12 mm
- Pressure resistance: ≤ 500 bar
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.2 mm
- Installation type: Flush
- Switching frequency: 600 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN complementary
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift: ±10% to ±15%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +100 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Ceramics, ZrO2
- Sealing ring material: FPM
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 12mm x 78mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Flush installation type
- Switching frequency of 600 Hz
- NPN complementary switching output with DC 4-wire electrical wiring
- IP68 rated enclosure for high protection
- High temperature resistance from –25 °C to +100 °C
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Short-circuit protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hydraulic sensor systems and electrical wiring standards to ensure safety and optimal performance.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and control systems
- Environments needing flush installation sensors with high durability
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements, minimizing waste
- High pressure and temperature resistance enhance longevity and reliability in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMP12-1B5NPVC0D sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure and temperature resistance.
