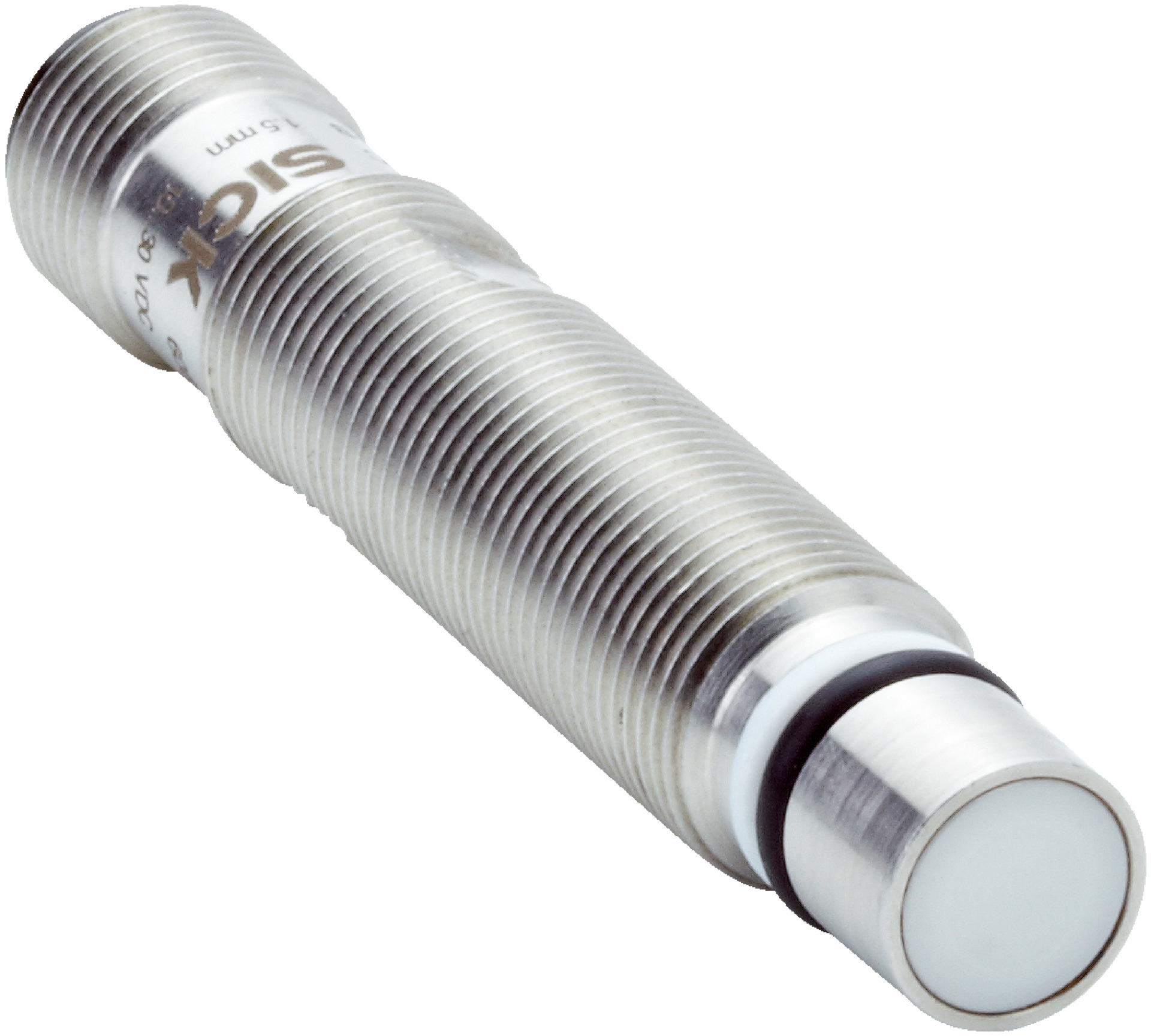

M12 Pressure Resistant Sensor | IP68 Rated | 500 Bar Pressure Resistance | Flush Installation | by SICK
The M12 Pressure Resistant Sensor is designed for hydraulic applications, offering an impressive pressure resistance of up to 500 bar and an IP68 rated enclosure for dust and water protection. Ideal for industrial automation, this sensor features a sensing range of 1.5 mm and is built to withstand harsh environments, ensuring reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of sensing range: ±10% to ±15%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Large sealing ring size: 5.3 mm x 2.4 mm
- Size support ring: 10 mm x 5.9 mm x 1 mm
- Tightening torque max: ≤ 40 Nm
- MTTFD: 156 years
- Mission time: 20 years
- Dimensions (H x L x W): 12mm x 56mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Sensing range Sn of 1.5 mm with safe sensing range Sa of 1.2 mm
- Flush installation type
- Switching frequency of 600 Hz
- Male connector M12, 4-pin connection
- PNP complementary switching output
- DC 4-wire electrical wiring
- IP68 rated enclosure for dust and water protection
- High temperature resistance from –25 °C to +100 °C
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Sealing ring made of FPM
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper flush mounting and electrical connection compliance.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation with flush installation needs
- Environments requiring robust sensing with IP68 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

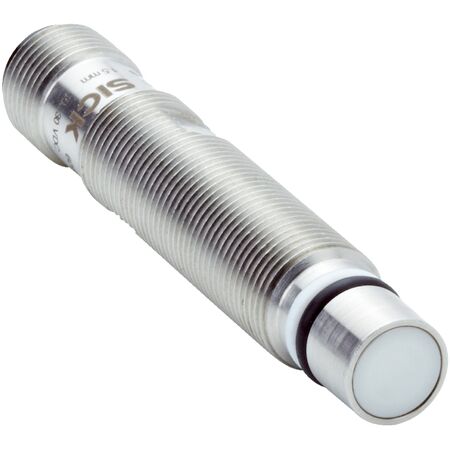

The SICK IMP12-1B5PPVC0B sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure resistance.
