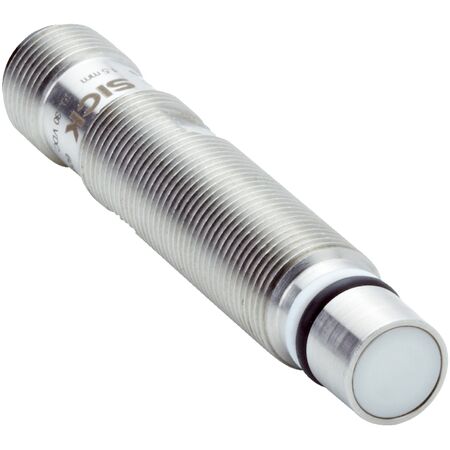

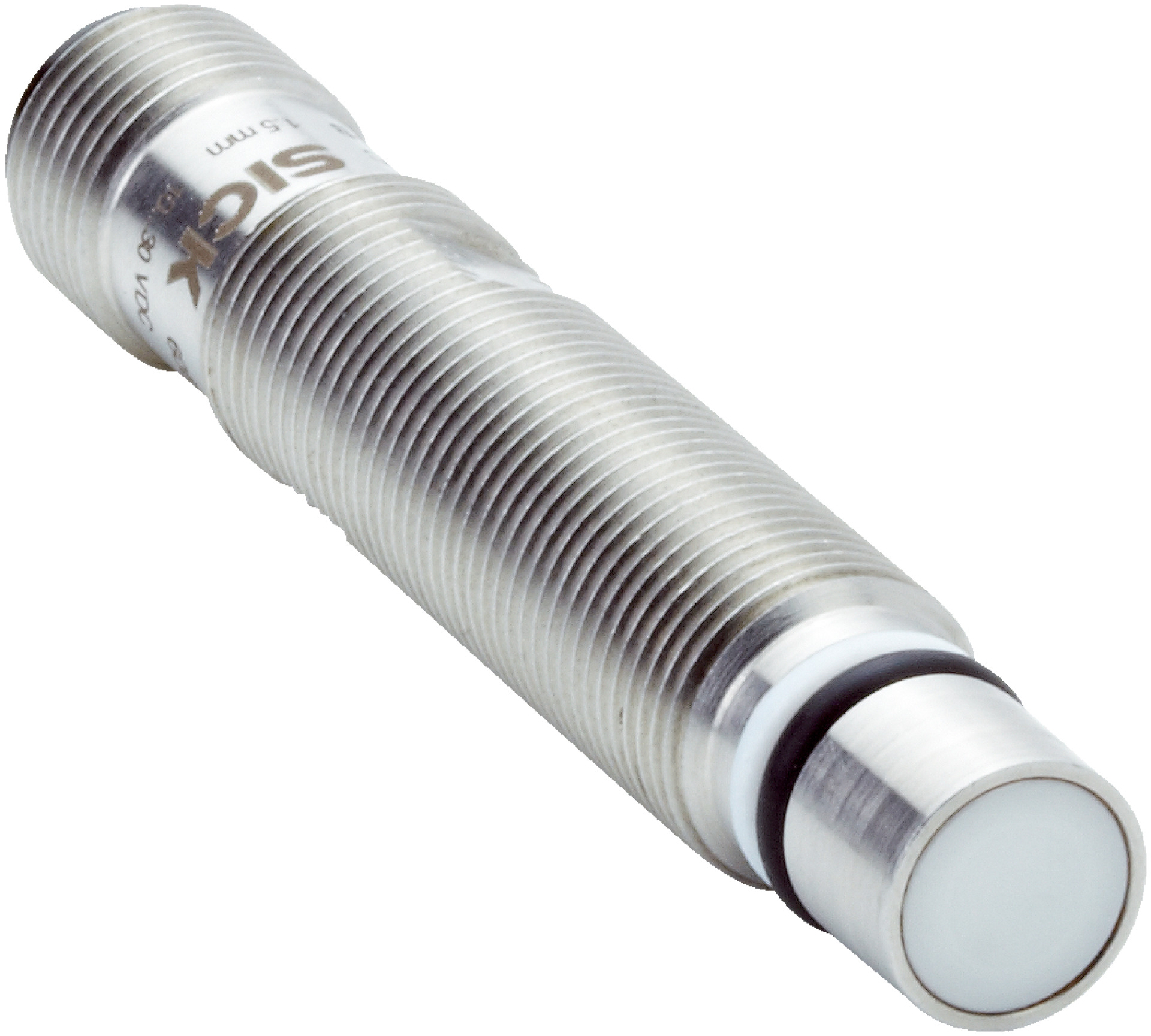

M12 Pressure Resistant Sensor | IP68 Rated | Flush Mount | 500 Bar Pressure | by SICK
The M12 Pressure Resistant Sensor is designed for hydraulic applications, offering a robust IP68 rating and a pressure resistance of up to 500 bar. Ideal for industrial automation and sensing in harsh environments, this sensor features a flush installation type and a switching frequency of 600 Hz, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, Stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M12 x 1
- Diameter: 12 mm
- Pressure resistance: ≤ 500 bar
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.2 mm
- Installation type: Flush
- Switching frequency: 600 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN complementary
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift: ±10% to ±15%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +100°C
- Sensing face material: Ceramics, ZrO2
- Sealing ring material: FPM
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 56mm x 56mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Flush installation type
- Switching frequency of 600 Hz
- NPN complementary switching output
- Male connector M12, 4-pin connection
- IP68 rated enclosure for dust and water protection
- High temperature resistance from -25°C to +100°C
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and sensing in harsh environments
- Machinery monitoring with flush installation requirements
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High pressure and temperature resistance extends product lifecycle
- IP68 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMP12-1B5NPVC0B sensor is available for immediate purchase, ideal for hydraulic and industrial sensing applications requiring high pressure and temperature resistance.
