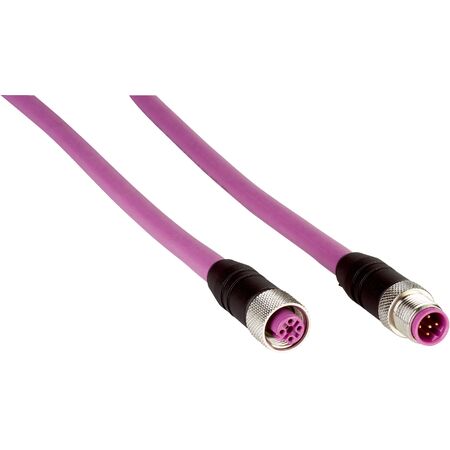

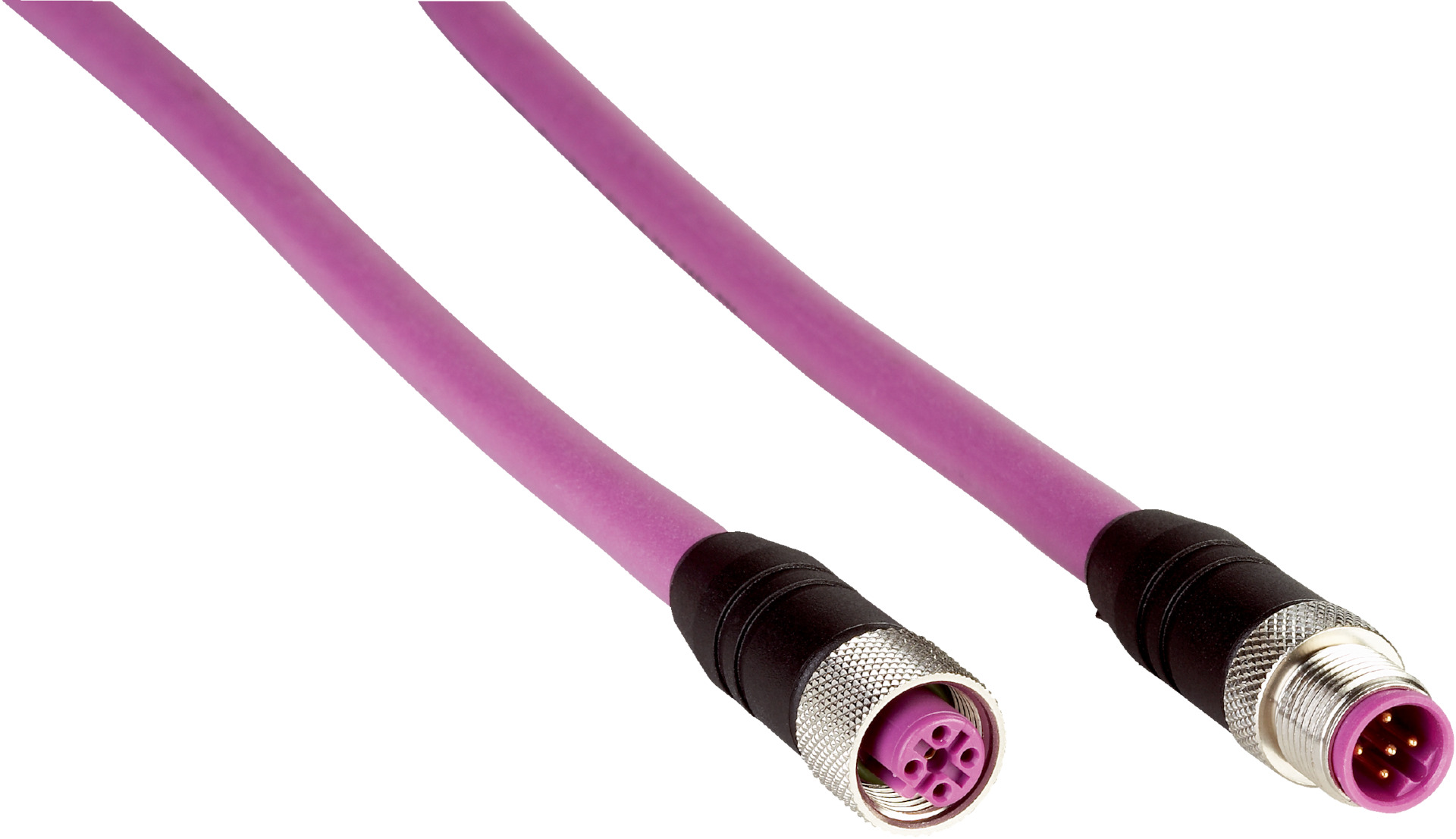

M12 PROFIBUS DP Cable | 5-Pin B-Coded Connectors | Shielded Twisted Pair | IP67 Rated | by SICK
The M12 PROFIBUS DP Cable is designed for industrial automation, featuring female and male 5-pin B-coded connectors for reliable fieldbus communication. With a halogen-free PUR jacket and IP67 rating, it ensures durability in harsh environments, making it ideal for control systems and applications exposed to oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, B-coded
- Connection type head B: Male connector, M12, 5-pin, straight, B-coded
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 2-wire, PUR, halogen-free
- Cable diameter: 7.6 mm
- Conductor cross section: 2 x 0.34 mm² + drain wire + shielding
- Shielding: Al-Pt film wire shield, overall C-screen tin-plated
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: 1,000,000
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Enclosure rating: IP67
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +60 °C
- Operating temperature head: -25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- Female and male M12, 5-pin, straight B-coded connectors
- Shielded twisted pair cable for reliable signal transmission
- Halogen-free PUR jacket and cable material
- High bending radius suitable for flexible and stationary use
- IP67 rated enclosure for dust and water protection
- Supports traversing speed up to 3 m/s and travelling distance of 5 m
- Operating temperature range from -50 °C to +85 °C depending on use
Professional Installation Requirements
- Installation by a qualified electrician or technician experienced with industrial fieldbus systems is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Fieldbus communication networks
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable materials reduce environmental impact in case of fire
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DSL-1205-G10MQ M12 5-Pin PROFIBUS DP Cable is available for immediate purchase. Ideal for industrial automation and control applications requiring robust and reliable fieldbus communication.
