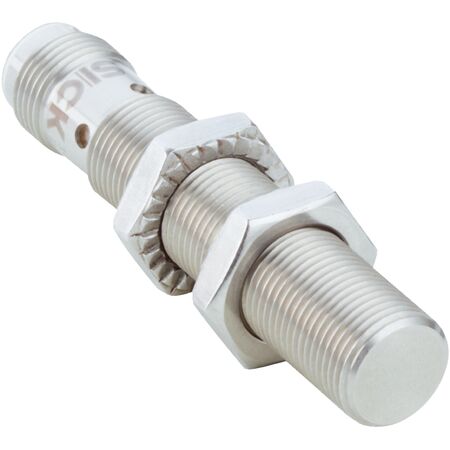

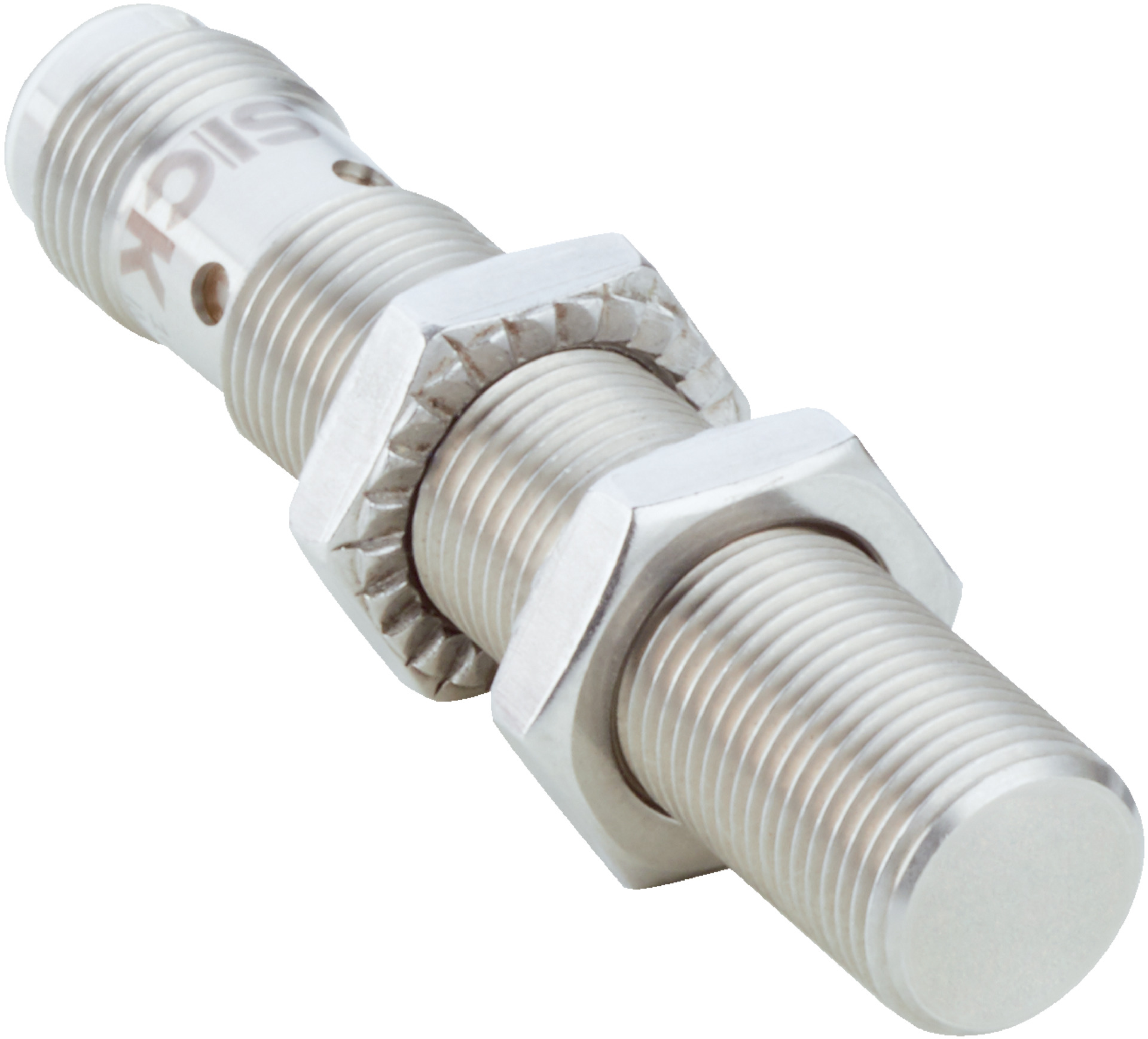

M12 Proximity Sensor | Flush Mount Inductive | IP68 & IP69K Rated | Stainless Steel Sensing Face | by SICK
The M12 Proximity Sensor is designed for industrial automation, featuring a flush mount inductive design with a sensing range of 4 mm and an IP68/IP69K protection rating. Built for harsh environments, this sensor is ideal for applications involving coolants and lubricants, ensuring reliable performance with a durable stainless steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- Switching output: PNP, normally open (NO)
- Connection type: Male M12, 4-pin connector
- Dimensions (H x L x W): 12mm x 63.8mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency of 75 Hz
- PNP switching output with NO function
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Short-circuit and power-up pulse protection
- Shock and vibration resistant with high durability
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting torque and electrical connections.
Applications
- Industrial automation sensing
- Detection in zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High protection rating (IP68/IP69K) ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK IMI12-04BPSVC0S sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
