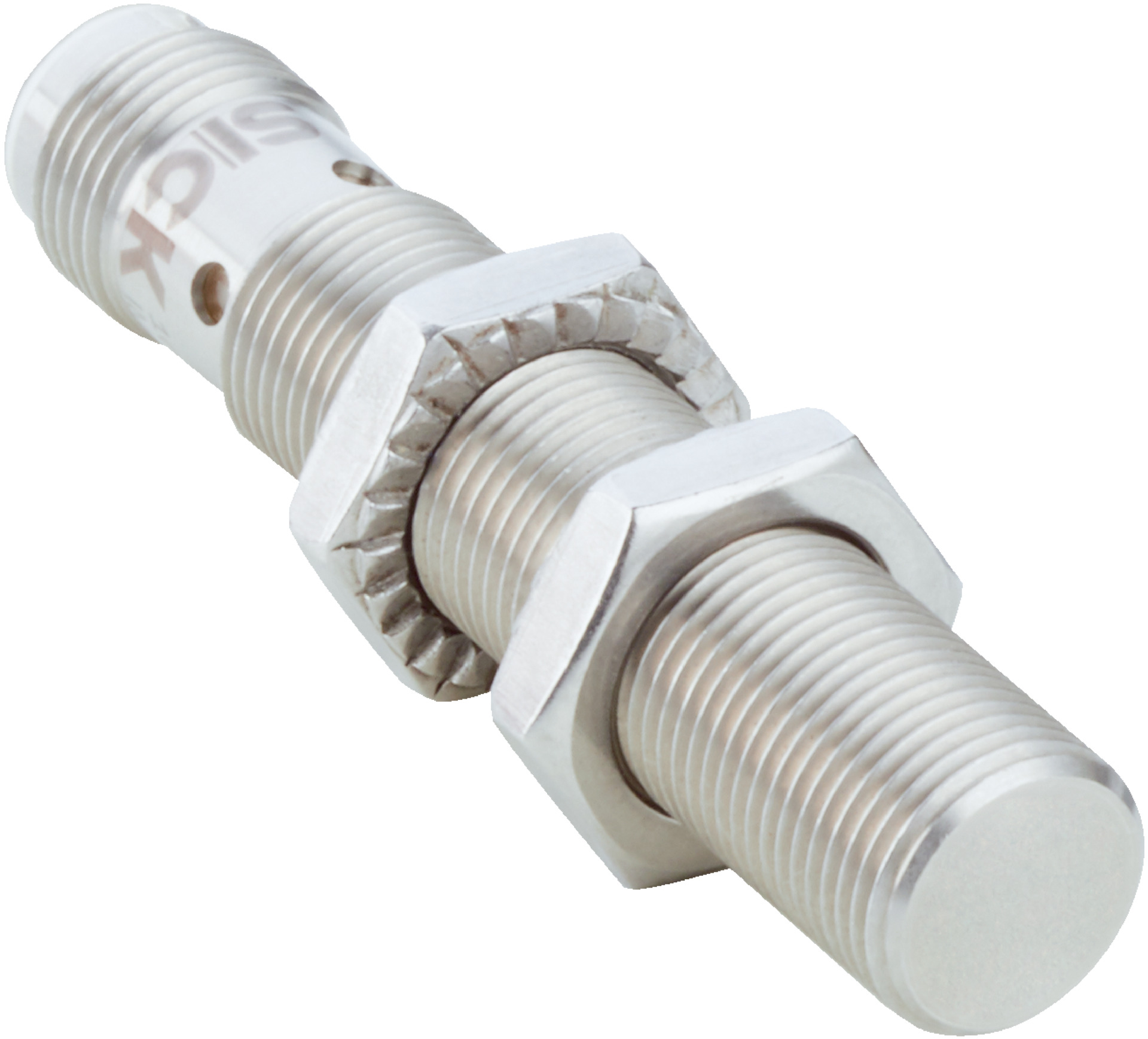

M12 Proximity Sensor | Flush Mount | NPN NO Output | IP68 & IP69K Rated | by SICK
The M12 Proximity Sensor is designed for reliable object detection in industrial automation, featuring a flush mount design and NPN normally open output. With a robust stainless steel housing and high protection ratings of IP68 and IP69K, it excels in harsh environments, making it ideal for applications involving coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Protection class: III
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread length: 46.8 mm
- Tightening torque max: ≤ 32 Nm
- EMC: According to EN 60947-5-2
- Shock and vibration resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz / 60 g
- Dimensions (H x L x W): 12mm x 63.8mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency of 75 Hz
- NPN normally open (NO) switching output
- Male connector M12, 4-pin connection
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A, resistant against coolant lubricants
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- High protection rating (IP68, IP69K) ensures reliability and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

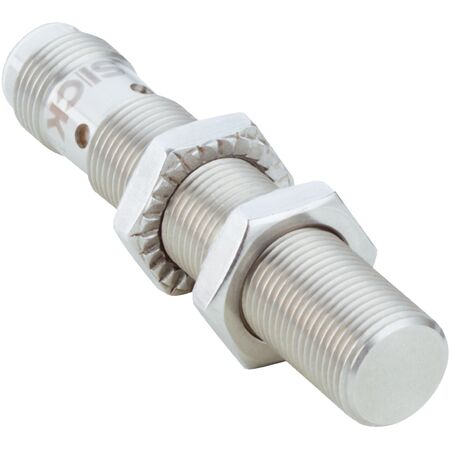

The SICK IMI12-04BNSVC0S proximity sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable object detection in harsh environments.
