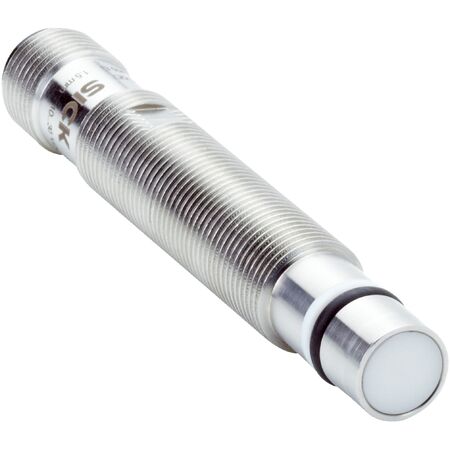

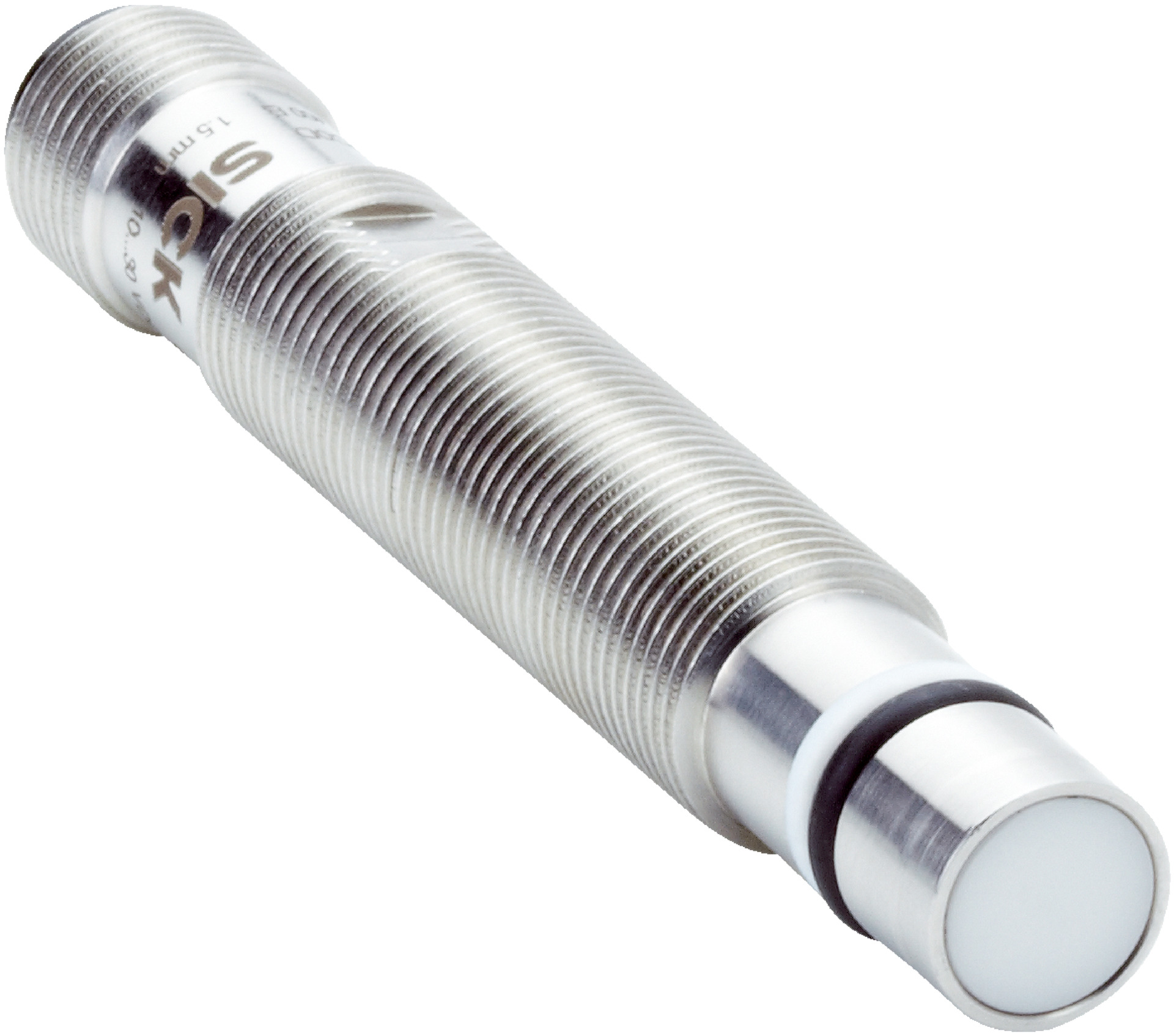

M12 Proximity Sensor | High Pressure Resistance | IP68 Rated | Flush Installation | by SICK
The M12 Proximity Sensor is designed for hydraulic applications, offering high pressure resistance up to 500 bar and an IP68 rated enclosure for dust and water protection. With a sensing range of 1.5 mm and a robust stainless steel housing, it's perfect for industrial automation and environments with high shock and vibration, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M12 x 1 thread size
- Diameter: 12 mm
- Pressure resistance: ≤ 500 bar
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.2 mm
- Installation type: Flush
- Switching frequency: 600 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP complementary
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift: ±10% to ±15%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +100 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Ceramics, ZrO2
- Sealing ring material: FPM
- Housing length: 78 mm
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 12mm x 78mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Flush installation type
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Switching frequency of 600 Hz
- PNP complementary switching output with DC 4-wire electrical wiring
- IP68 rated enclosure for dust and water protection
- High temperature resistance from –25 °C to +100 °C
- Shock and vibration resistant up to 30 g and 10 ... 55 Hz
- Short-circuit protection included
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Sealing ring made of FPM
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hydraulic and electrical sensor installations to ensure proper mounting and electrical connections.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments with high shock and vibration
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMP12-1B5PPVC0D proximity sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure resistance and robust sensing.
