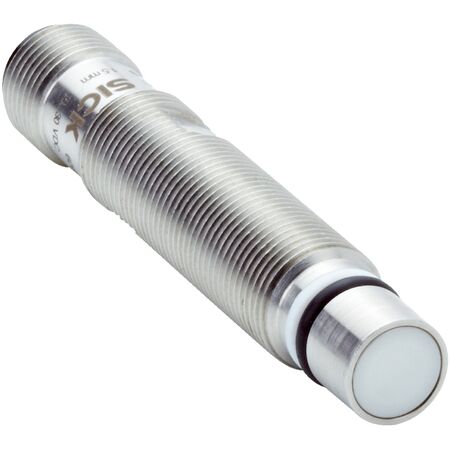

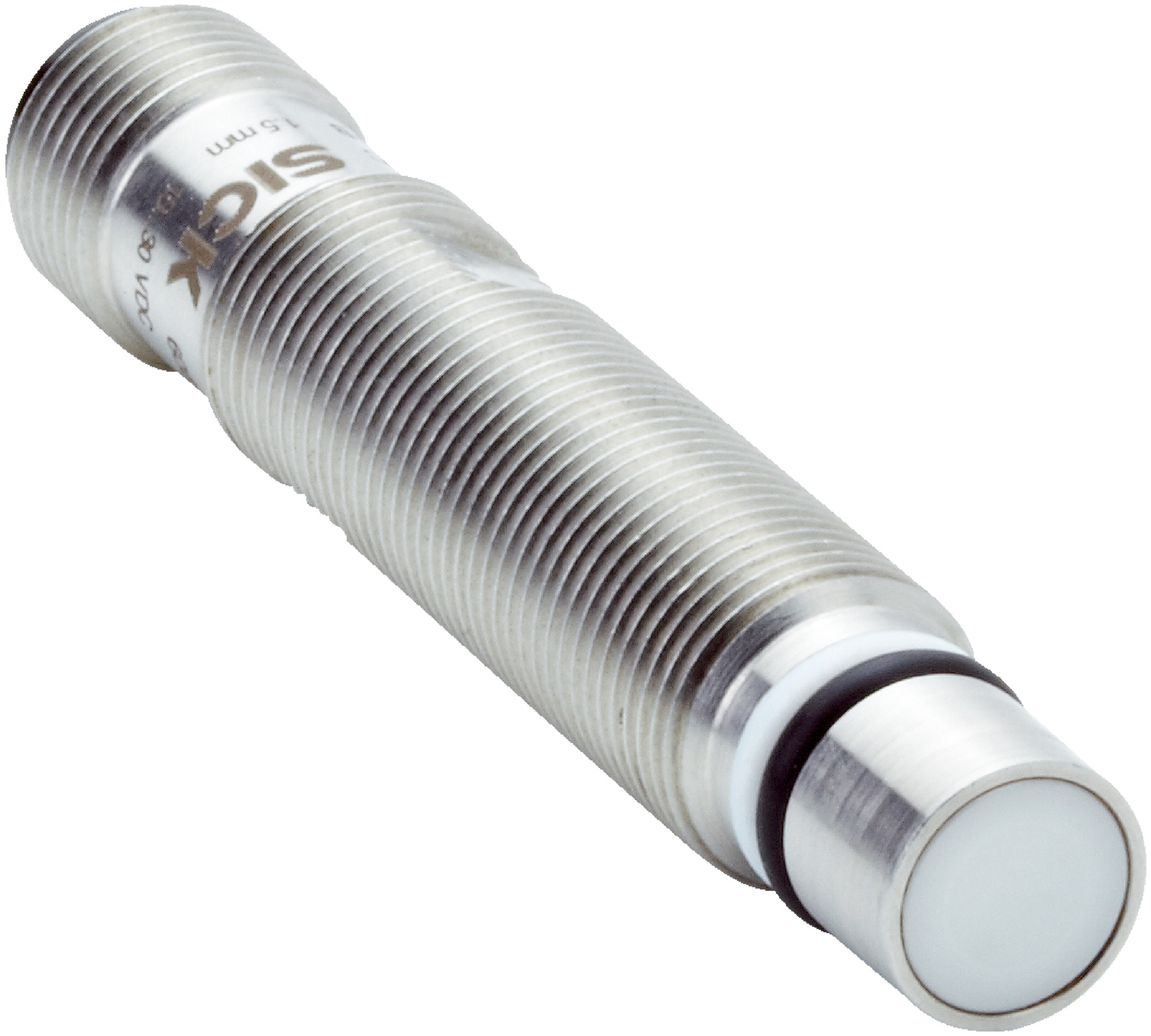

M12 Proximity Sensor | High Pressure Resistance | IP68 Rated | Stainless Steel Housing | by SICK
The M12 Proximity Sensor is designed for hydraulic applications, featuring high pressure resistance up to 500 bar and an IP68 rating for dust and water protection. With a sensing range of 1.5 mm and a robust stainless steel housing, it's perfect for industrial automation and environments with high vibration and shock. Built for reliability, this sensor ensures optimal performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of sensing range: ≤ 15%
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Large sealing ring size: 5.3 mm x 2.4 mm
- Size support ring: 10 mm x 5.9 mm x 1 mm
- Tightening torque max: ≤ 40 Nm
- EMC compliance according to EN 60947-5-2
- Dimensions (H x L x W): 12mm x 69mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Flush installation type
- Switching frequency of 600 Hz
- PNP switching output with NO function
- Male connector M12, 4-pin connection
- Enclosure rating IP68 for dust and water protection
- High pressure resistant design suitable for hydraulic applications
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +80 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Sealing ring made of FPM
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection with M12 4-pin male connector.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Flush installation environments with high vibration and shock
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMP12-1B5PSVC0C proximity sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure resistance.
