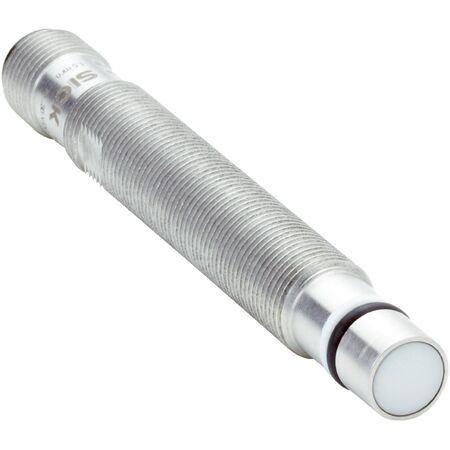

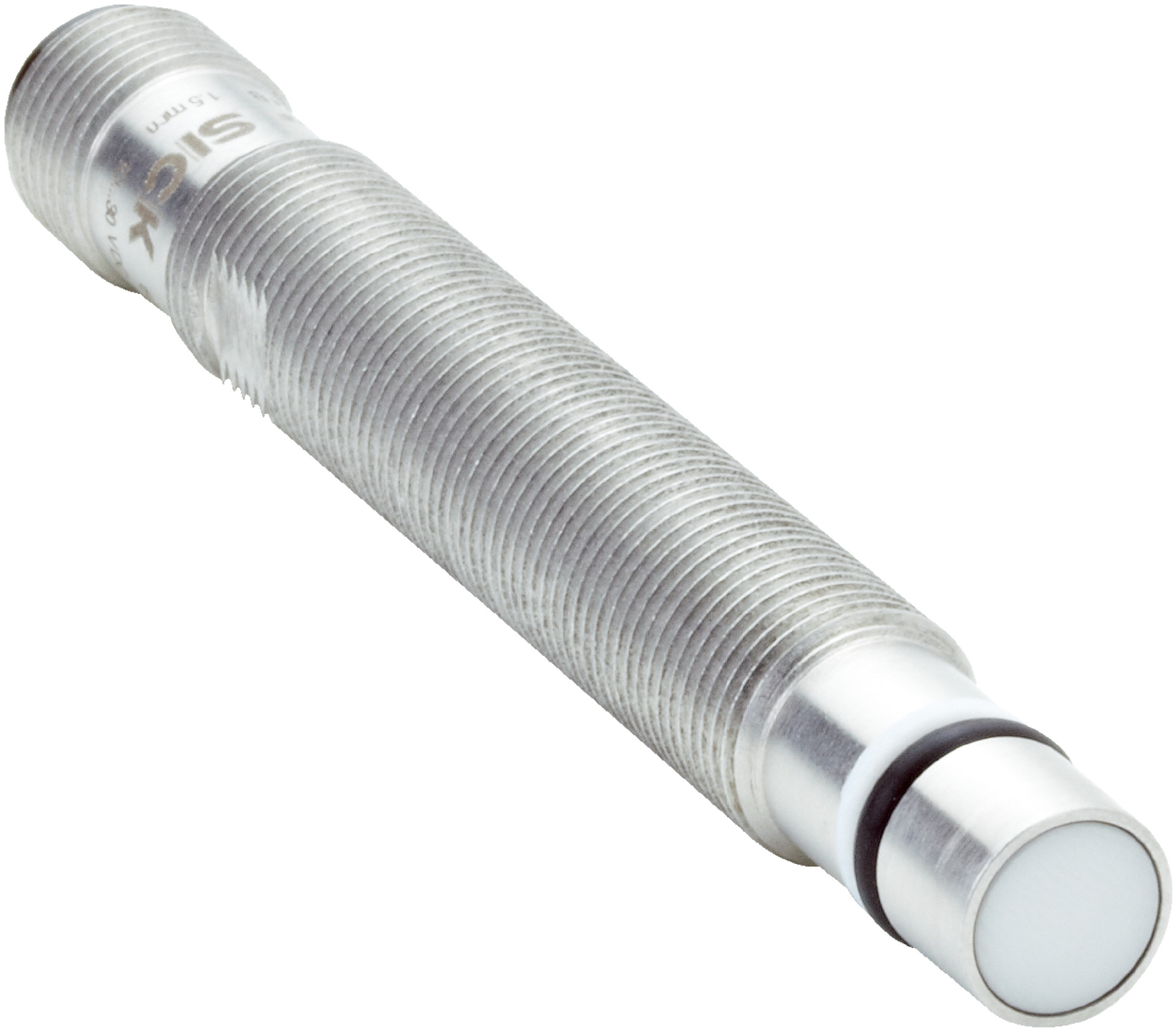

M12 Proximity Sensor | High Pressure Resistance | IP68 Rated | Stainless Steel Housing | by SICK
The M12 Proximity Sensor is designed for hydraulic applications, featuring high pressure resistance up to 500 bar and an IP68 rated enclosure for dust and water protection. With a sensing range of 1.5 mm and robust shock and vibration resistance, it's perfect for industrial automation and machinery sensing in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of sensing range: ±10% to ±15%
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 12mm x 93mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Flush installation type
- Switching frequency of 600 Hz
- PNP complementary switching output with DC 4-wire electrical wiring
- IP68 rated enclosure for dust and water protection
- High temperature resistance from –25 °C to +100 °C
- Shock and vibration resistant up to 30 g and 10-55 Hz
- Short-circuit protection included
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramic ZrO2
- Sealing ring made of FPM
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and machinery sensing
- Environments with high shock and vibration
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMP12-1B5PPVC0F proximity sensor is available for immediate purchase, ideal for hydraulic and industrial sensing applications requiring high pressure and temperature resistance.
