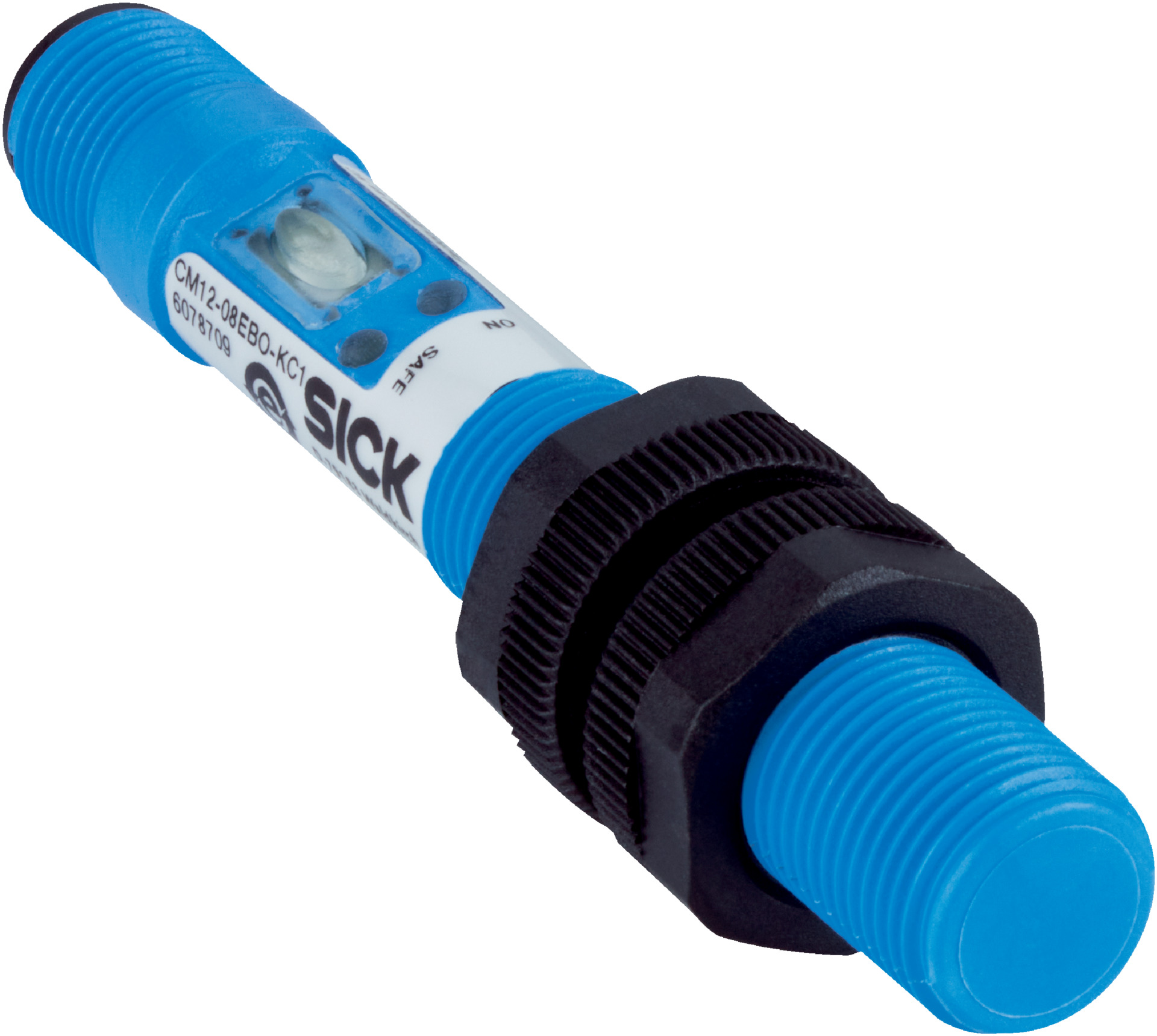

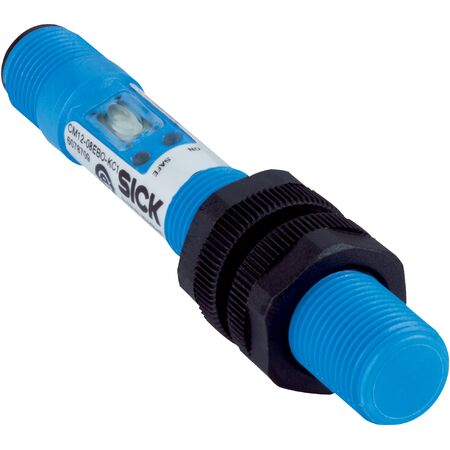

M12 Proximity Sensor | IP68 Rated | 0.5mm to 8mm Sensing Range | 15Hz Switching Frequency | by SICK
The M12 Proximity Sensor CM12-08EBP-KC1 is designed for reliable object detection in industrial automation. With an IP68 rating, it offers protection against dust and water, making it ideal for harsh environments. Its selectable PNP or NPN output and a sensing range of 0.5mm to 8mm ensure versatility in various applications, from manufacturing process control to safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 15 Hz
- Sensing range Sn: 0.5 mm to 8 mm
- Safe sensing range Sa: 5.76 mm
- Output: PNP / NPN, NC or NO, wire configurable
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP68 according to EN 60529
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Operating temperature: -20 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Housing material: Plastic
- Thread length: 46.5 mm
- Housing length: 84.7 mm
- Tightening torque max: ≤ 1 Nm
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 12mm x 85mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 threaded housing with Ø 12 mm diameter
- Sensing range from 0.5 mm to 8 mm depending on model
- Switching frequency of 15 Hz
- Selectable PNP or NPN switching output with NC or NO function
- Wire configurable output characteristic
- IP68 rated enclosure for protection against dust and water
- Shock and vibration resistant up to 30 g and 10-55 Hz
- Short-circuit and power-up pulse protection included
- Operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper configuration and protection.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-flush and flush mounting environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements
- Low power consumption with DC 4-wire electrical wiring
- Long mission time of 20 years reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CM12-08EBP-KC1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
