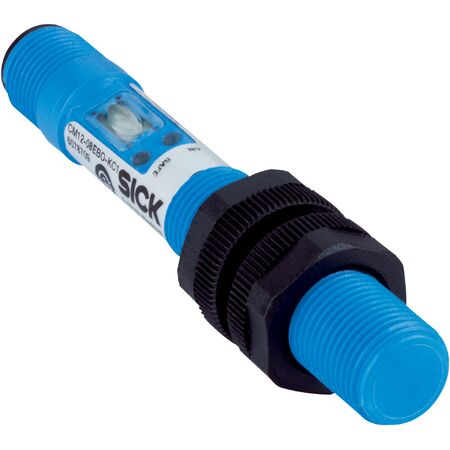

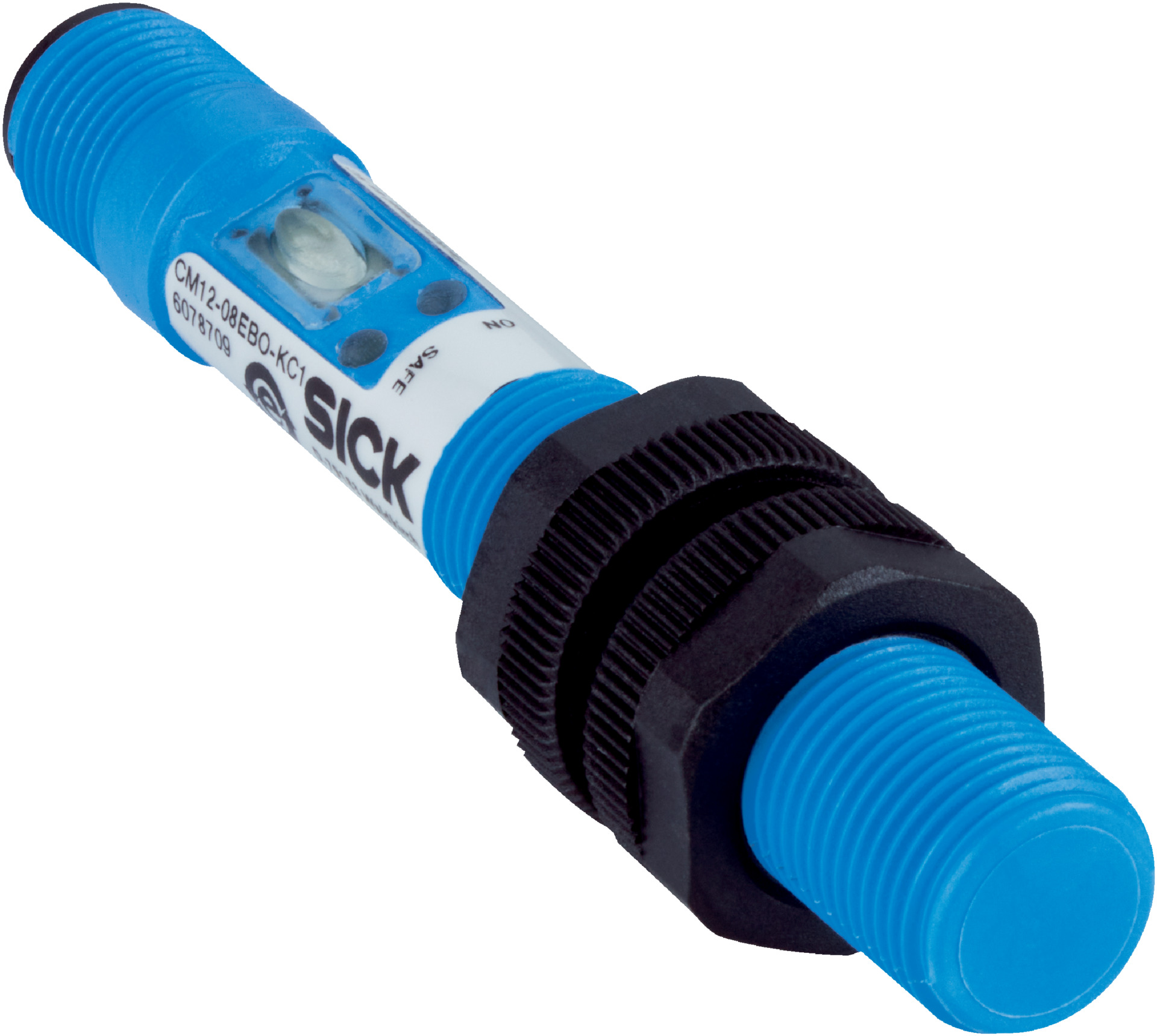

M12 Proximity Sensor | IP68 Rated | 0.5mm to 8mm Sensing Range | PNP/NPN Configurable | by SICK
The M12 Proximity Sensor CM12-08EBO-KC1 is designed for industrial automation, featuring a sensing range of 0.5mm to 8mm and an IP68 rated enclosure for high protection. With selectable PNP or NPN outputs and a robust operating temperature range of -20°C to +85°C, this sensor is perfect for object detection and safety applications in manufacturing and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching output: PNP / NPN, wire configurable
- Switching frequency: 15 Hz
- Sensing range Sn: 0.5 mm to 8 mm
- Safe sensing range Sa: 5.76 mm
- Enclosure rating: IP68 (EN 60529)
- Operating temperature: -20 °C to +85 °C
- Housing material: Plastic
- Thread length: 46.5 mm
- Housing length: 84.7 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Dimensions (H x L x W): 12mm x 85mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range from 0.5 mm to 8 mm
- Non-flush and flush installation types
- Switching frequency of 15 Hz
- Male M12 4-pin connector
- Selectable PNP or NPN switching output
- Output function programmable with factory default normally closed contact
- IP68 rated enclosure for high protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper configuration and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and positioning in machinery
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements
- Low power consumption with DC 4-wire electrical wiring
- Long service life with MTTFD of 607 years and 20 years mission time
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CM12-08EBO-KC1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
