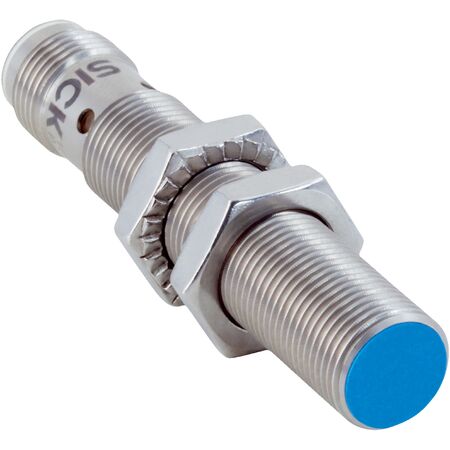

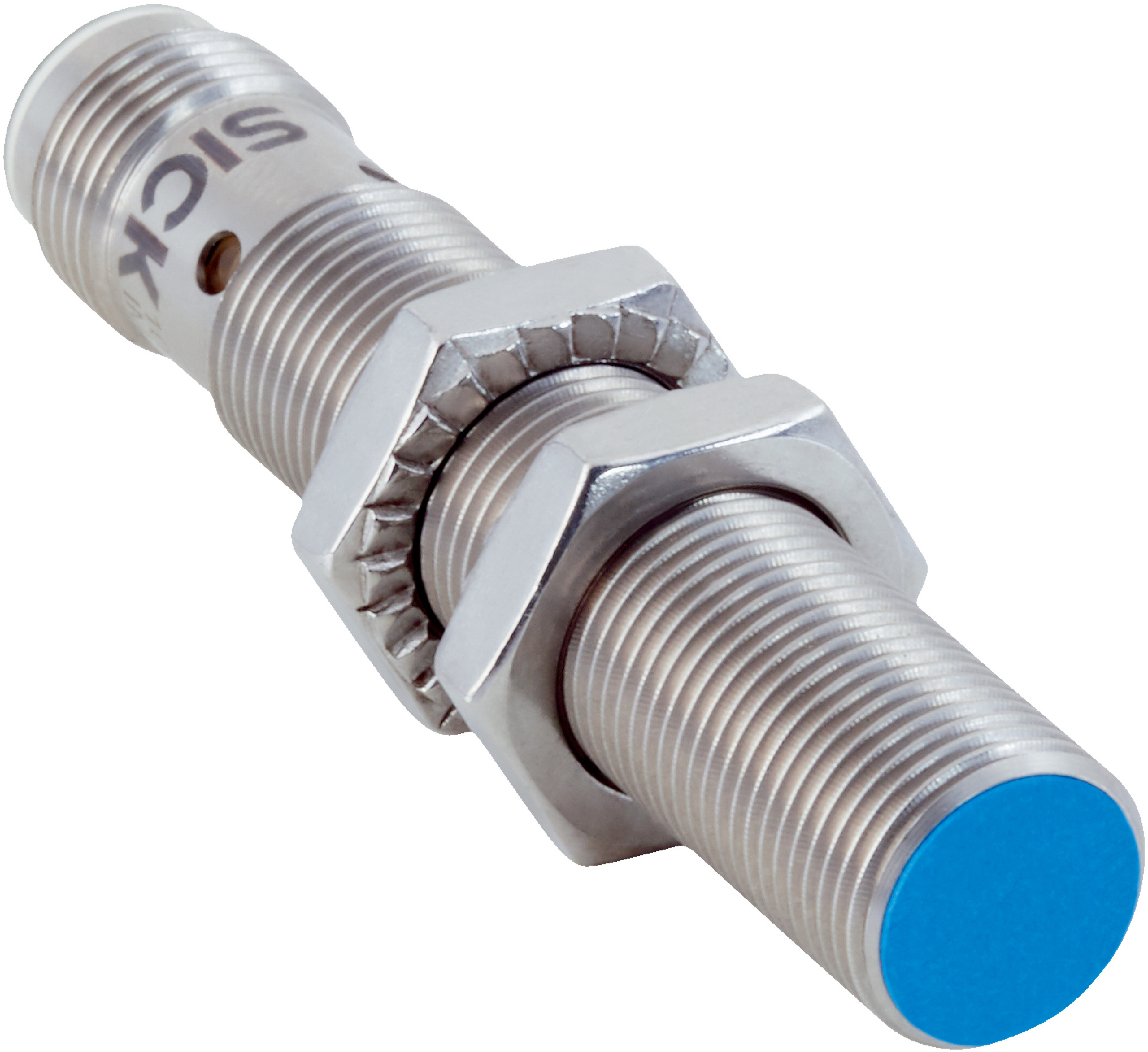

M12 Proximity Sensor | IP68 & IP69K Rated | Flush Mount | 4mm Sensing Range | by SICK
The M12 Proximity Sensor is designed for industrial automation, featuring a robust IP68 and IP69K rating for high protection against dust and water. With a sensing range of 0 to 4 mm and a switching frequency of 1,000 Hz, it's perfect for detecting metal objects in harsh environments, including those with coolants and lubricants. Built with a durable stainless steel housing, this sensor ensures longevity and reliability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: High
- Temperature drift of sensing range: ±10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Operating temperature range: -25 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Thread length: 48 mm
- Tightening torque max: 32 Nm
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range of 0 mm to 4 mm
- Flush installation type
- Switching frequency of 1,000 Hz
- PNP switching output with normally open function
- Male connector M12, 4-pin connection
- IP68 and IP69K rated for high protection against dust and water
- Double film sensor resistant against coolant lubricants
- Mounting nut made of V2A stainless steel with locking teeth included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for detecting metal objects
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IMC12-04BPPVC0SC05 proximity sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable metal detection in harsh environments.
