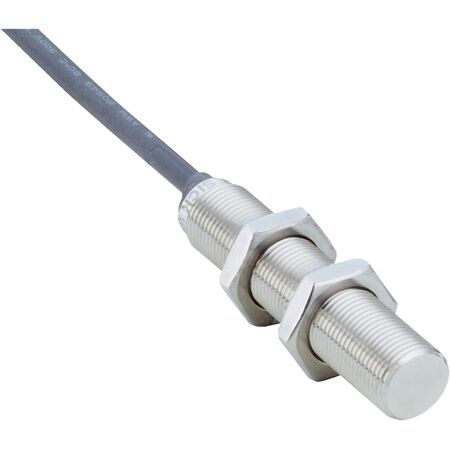

M12 Proximity Sensor | IP68 Rated | Stainless Steel Housing | Flush Mount Design | by SICK
The M12 Proximity Sensor is designed for reliable sensing in hygienic environments, featuring an IP68 rating and a durable stainless steel housing. With a sensing range of 4 mm and a switching frequency of 75 Hz, it's perfect for industrial automation applications that require robust and flush installation. Built to withstand harsh conditions, this sensor ensures high performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: Ø 4.5 mm
- Conductor size: 0.34 mm²
- Protection class: III
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Switching output: PNP, normally open (NO)
- Connection type: Cable, 3-wire, 2 m length
- Dimensions (H x L x W): 12mm x 58.8mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 thread size with Ø 12 mm diameter
- Sensing range Sn of 4 mm with safe sensing range Sa of 3.24 mm
- Flush installation type with stainless steel V4A sensing face
- Switching frequency of 75 Hz with PNP normally open output
- Cable connection, 3-wire, 2 m length with PUR cable material
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents suitable for hygienic environments
- Shock and vibration resistant with high mechanical durability
- Operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct flush mounting and electrical connection according to safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush installation proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High ingress protection minimizes environmental contamination and sensor failure
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMI12-04BPSNU2S proximity sensor is available for immediate purchase, ideal for industrial automation and hygienic environment applications.
