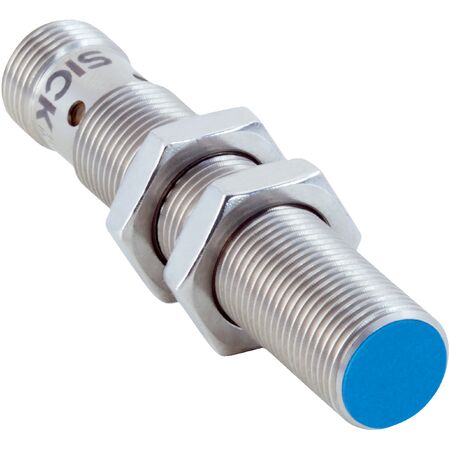

M12 Proximity Sensor | Nickel-Plated Brass | IP67/IP68/IP69K Rated | 4mm Sensing Range | by SICK
The M12 Proximity Sensor is designed for industrial automation, featuring a nickel-plated brass housing and an impressive IP67/IP68/IP69K rating for protection against dust and water. With a sensing range of 4mm and a high switching frequency of 2,000 Hz, it's perfect for detecting metal objects in harsh environments, ensuring reliability and durability in challenging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 2,000 Hz
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Ambient operating temperature: -40°C to +85°C
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Electrical wiring: DC 3-wire
- Output function: Normally Open (NO), PNP
- Connection type: Male connector M12, 4-pin
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Shock resistance: 100 g 2 ms sinusoidal, 500 shocks per axis
- Vibration resistance: 60 g peak (10 Hz to 2,000 Hz)
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 65mm x 12mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- M12 x 1 thread size with 12 mm diameter sensing face
- Flush installation type with 4 mm sensing range and 3.24 mm safe sensing range
- High switching frequency of 2,000 Hz with PNP normally open output
- Male M12 4-pin connector for electrical connection
- IP67, IP68, and IP69K rated for protection against dust and water
- Resistant against coolant lubricants and temperature extremes from -40°C to +85°C
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant according to EN standards
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolant lubricants and difficult application conditions
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMG12-04BPSZC0S proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
