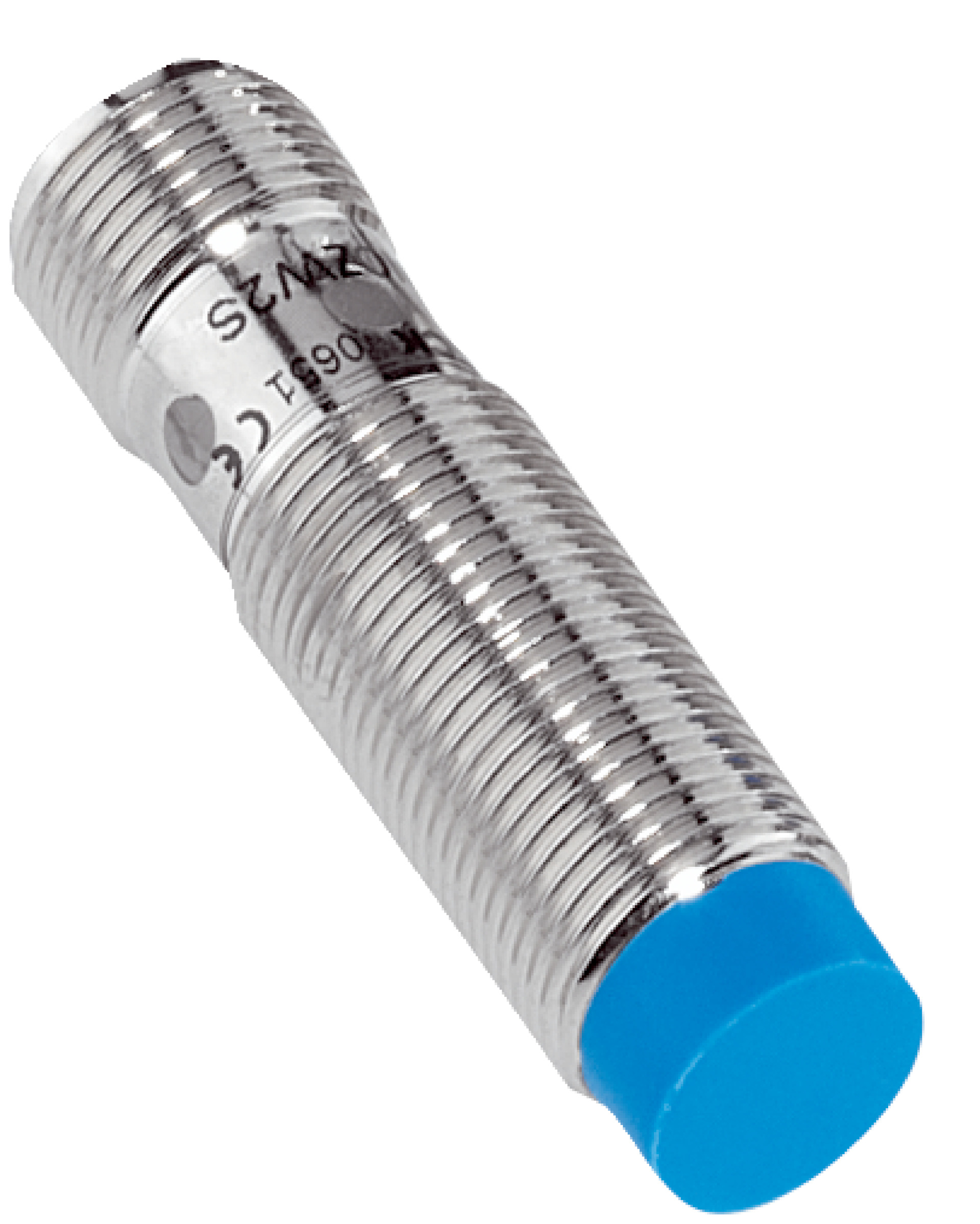

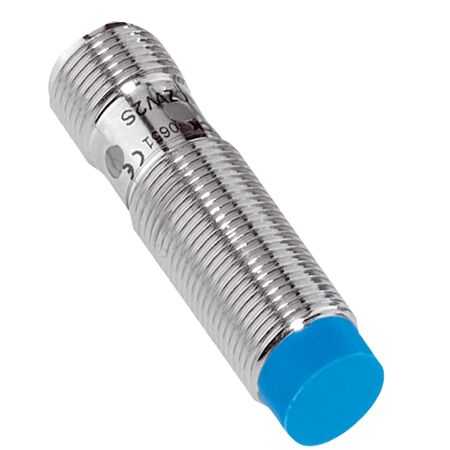

M12 Proximity Sensor | Short-body Brass Housing | 4mm Sensing Range | IP67 Rated | by SICK
The M12 Proximity Sensor is designed for precise object detection in industrial automation, featuring a short-body brass housing and a sensing range of 4 mm. With a robust IP67 rating for dust and water protection, this sensor is perfect for non-contact switching in machinery and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Proximity Sensor | Short-body Brass Housing | 4mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1043660
Alternatively Known As: M12 Proximity Sensor, PNP Proximity Switch, Non-flush Proximity Sensor, Short-body Inductive Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 2,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP complementary
- Electrical wiring: DC 4-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 46 mm
- Thread length: 24 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 46mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 2,000 Hz
- PNP complementary switching output with DC 4-wire electrical wiring
- Male M12 4-pin connector for connection
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic PA 66 sensing face
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and secure mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring short sensing range
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME12-04NPPZC0K proximity sensor is available for immediate purchase, ideal for industrial automation and control system applications.
