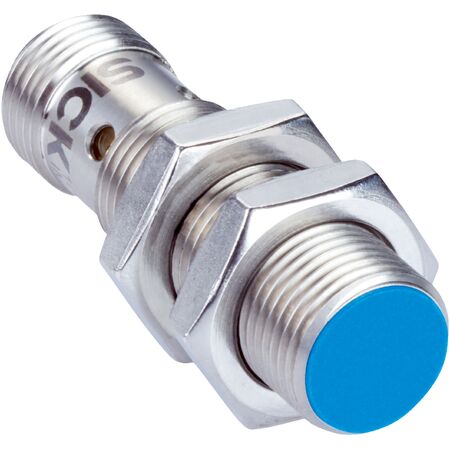

M12 Proximity Sensor | Short-body Inductive Design | 4mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The M12 Proximity Sensor is designed for industrial automation, featuring a short-body housing and a sensing range of 4 mm, making it ideal for detecting metal objects in harsh environments. With an IP67/IP68/IP69K rating, this sensor is resistant to coolants and lubricants, ensuring reliable performance in challenging conditions. Built for durability and compliance with EN 60068 standards, it’s perfect for mobile machines and applications requiring robust sensors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 12mm x 45mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency of 2,000 Hz
- PNP switching output with normally open function
- Male connector M12, 4-pin connection type
- IP67, IP68, and IP69K rated for high protection
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and electrical connection.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces waste and replacement frequency
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMG12-04BPSZC0K proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
