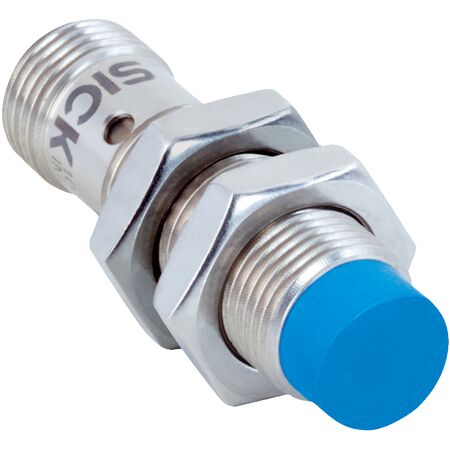

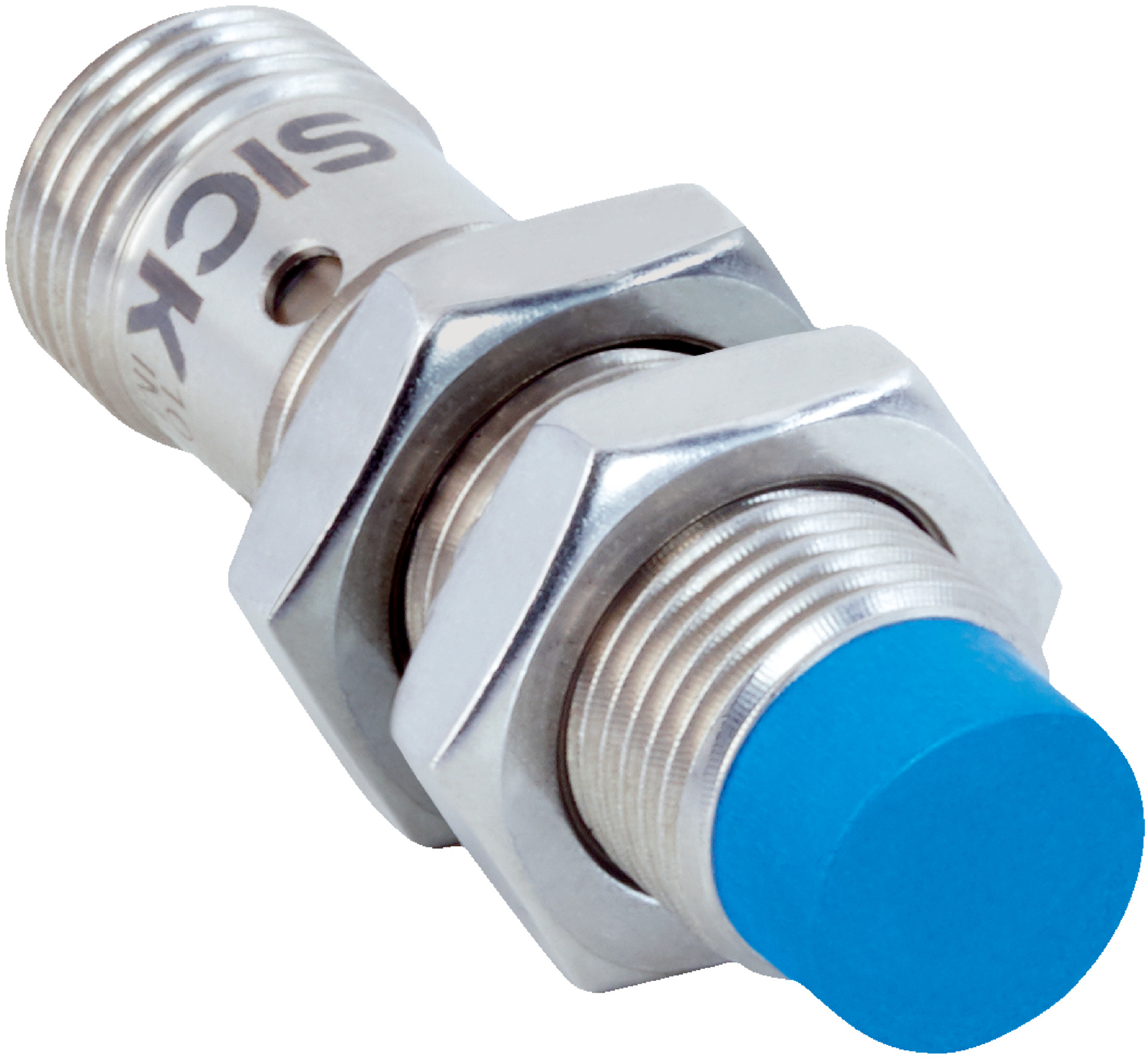

M12 Proximity Sensor | Short-body Inductive Design | IP67, IP68, IP69K Rated | 8mm Sensing Range | by SICK
The M12 Proximity Sensor is designed for industrial automation, featuring a short-body inductive design with an 8mm sensing range and a high switching frequency of 2,000 Hz. Ideal for harsh environments, this sensor is IP67, IP68, and IP69K rated, ensuring protection against dust and water. With a robust nickel-plated brass housing, it’s perfect for detecting metal objects in mobile machines and areas with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally closed (NC)
- Switching frequency: 2,000 Hz
- Sensing range (Sn): 8 mm
- Safe sensing range (Sa): 6.48 mm
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Operating temperature: -40 °C to +85 °C
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Dimensions (H x L x W): 12mm x 45mm x 12mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M12 x 1 thread size
- Non-flush installation type with sensing range of 8 mm
- High switching frequency of 2,000 Hz with PNP normally closed output
- IP67, IP68, and IP69K rated for protection against dust and water
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
- Resistant to harsh environments reducing risk of failure and downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMG12-08NPOZC0K proximity sensor is available for immediate purchase, ideal for industrial automation and machinery applications requiring reliable object detection in harsh environments.
