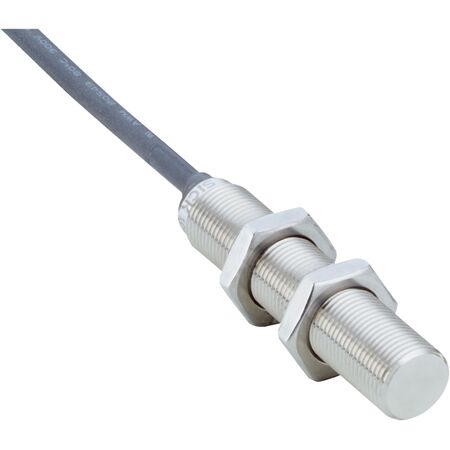

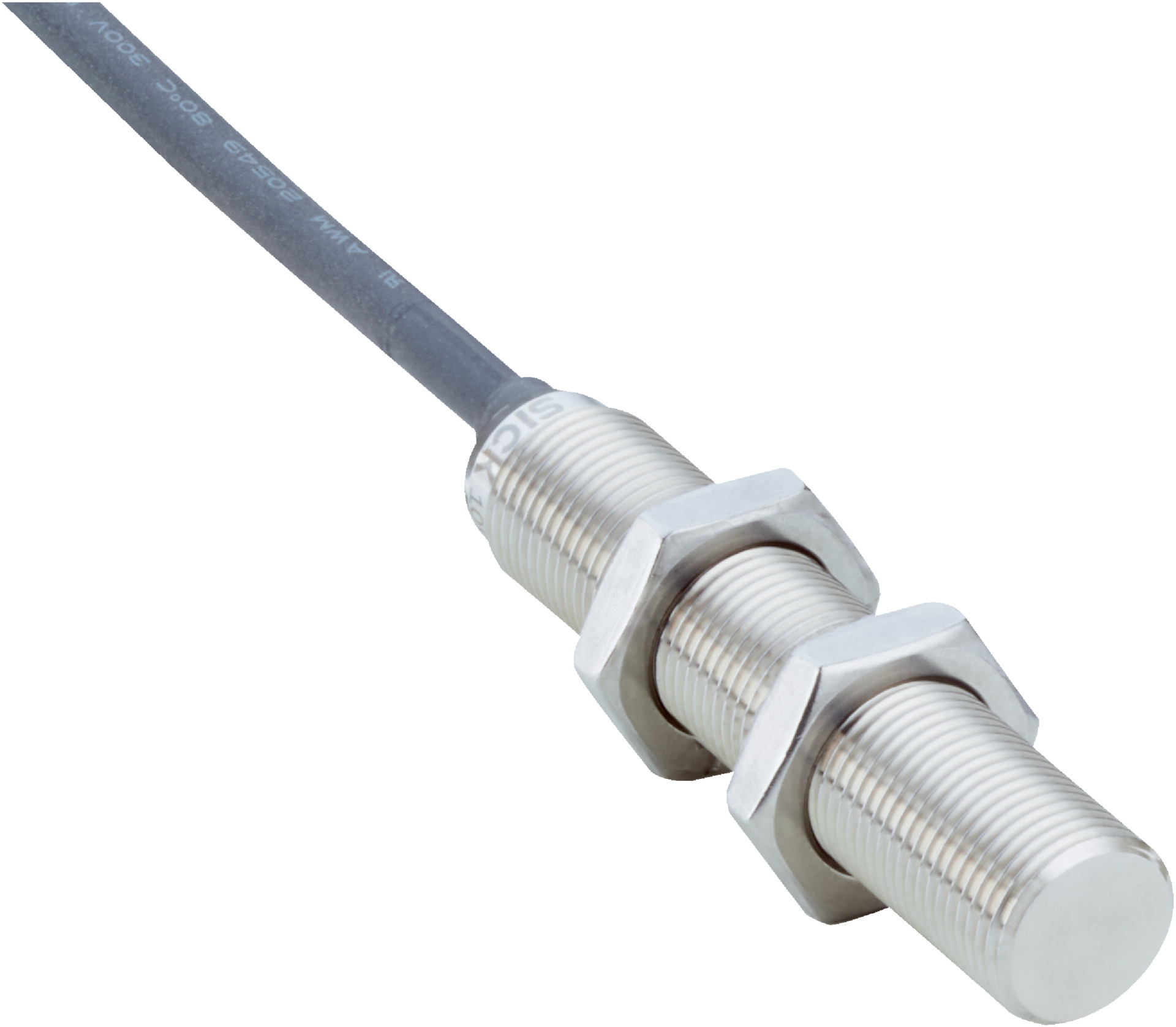

M12 Proximity Sensor | Stainless Steel Housing | IP68 & IP69K Rated | 4mm Sensing Range | by SICK
The M12 Proximity Sensor is designed for robust industrial automation, featuring a stainless steel housing and an impressive IP68/IP69K rating, making it ideal for hygienic and washdown environments. With a sensing range of 4 mm and a PNP normally closed output, this sensor ensures reliable performance even in challenging conditions, providing durability and efficiency for your applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: Ø 4.5 mm
- Conductor size: 0.34 mm²
- Protection class: III
- EMC compliance: According to EN 60947-5-2
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Dimensions (H x L x W): 12mm x 58.8mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 thread size with Ø 12 mm diameter
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type with PNP normally closed output
- Cable connection, 3-wire, 2 m length with PUR cable material
- Housing and sensing face made of stainless steel V4A (DIN 1.4404 / AISI 316L)
- High protection rating IP68 and IP69K suitable for washdown environments
- Resistant to cleaning agents
- Switching frequency of 75 Hz
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant withstanding harsh industrial conditions
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct wiring and mounting for optimal sensor performance and safety.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush installation proximity sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents reduces need for frequent replacements
- Energy efficient DC 3-wire electrical wiring minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMI12-04BPONU2S proximity sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
