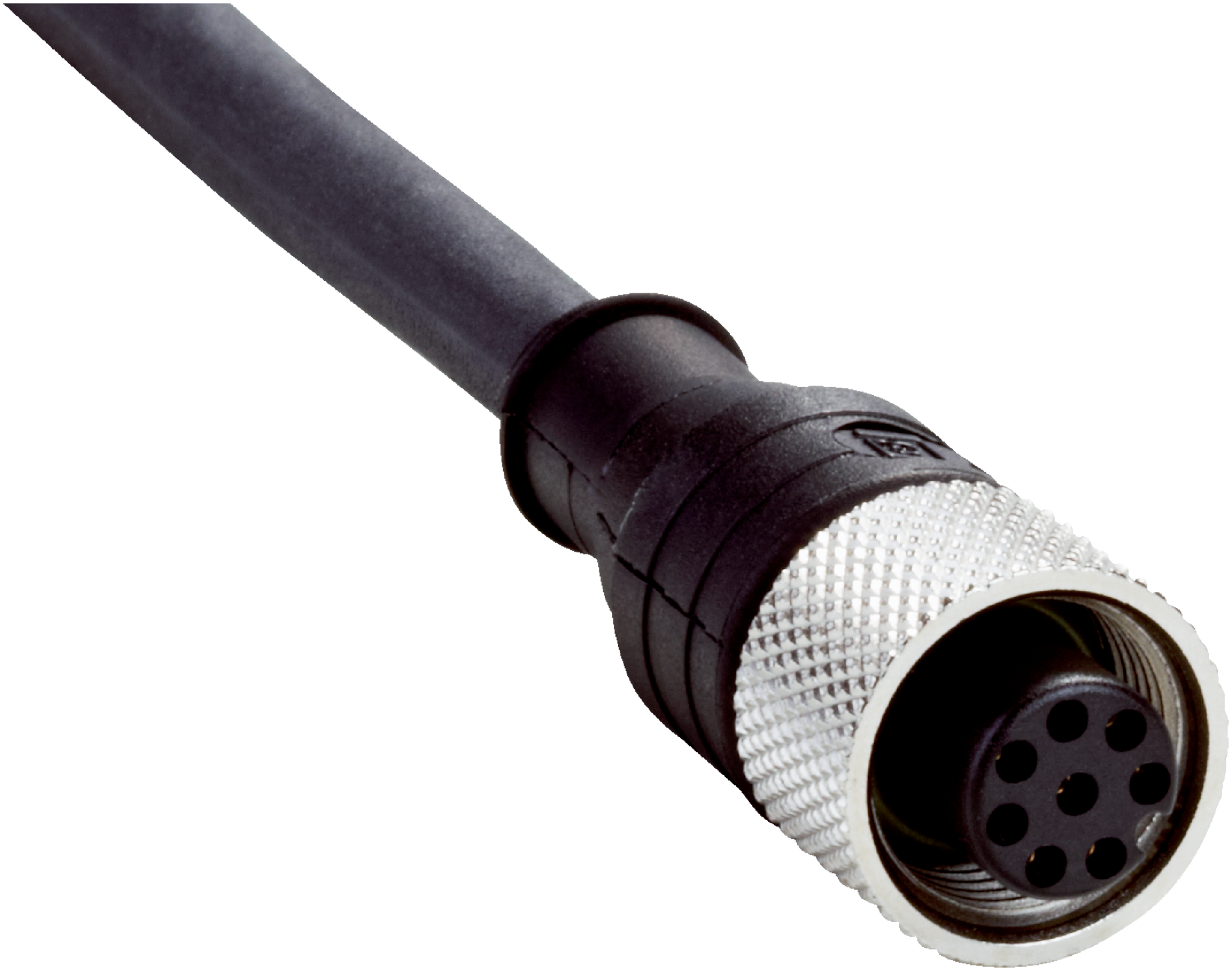

M12 Sensor Actuator Cable | 10m Length | IP65/IP67 Rated | TPU Connector | by SICK
The M12 Sensor Actuator Cable is designed for industrial automation, featuring a 10m length with a durable TPU connector and IP65/IP67 enclosure rating for dust and water resistance. Ideal for factory automation systems, this cable ensures reliable signal transmission in flexible and stationary applications, making it perfect for robotics and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 female to flying leads, actuator cable 10m, industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Cable: 10 m, 7-wire, PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Drag chain operation temperature: -25 °C to +60 °C
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65/IP67 (EN 60529)
- Dimensions (H x L x W): 6mm x 10000mm x 6mm
- Weight: 0.3 kg
Key Features
- Female M12, 8-pin, straight, A-coded connector on head A
- Flying leads on head B for versatile connection
- Cable length of 10 meters with 7-wire PUR halogen-free jacket
- Shielded cable with TPU connector material for durability
- High bending radius suitable for flexible and stationary use
- Operating temperature range from -50°C to +80°C
- Enclosure rating IP65/IP67 for dust and water resistance
- UL File No. CYJV.E335179 certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Factory automation systems requiring reliable signal transmission
- Robotics and machinery requiring flexible and durable cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

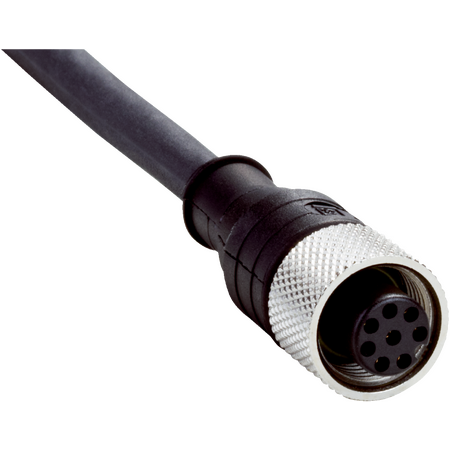

The SICK DOL-127SG10ME25KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and factory applications.
