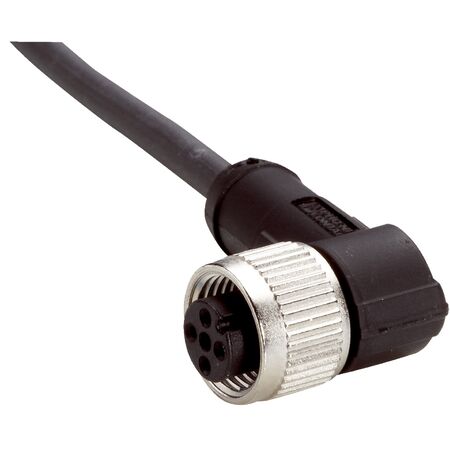

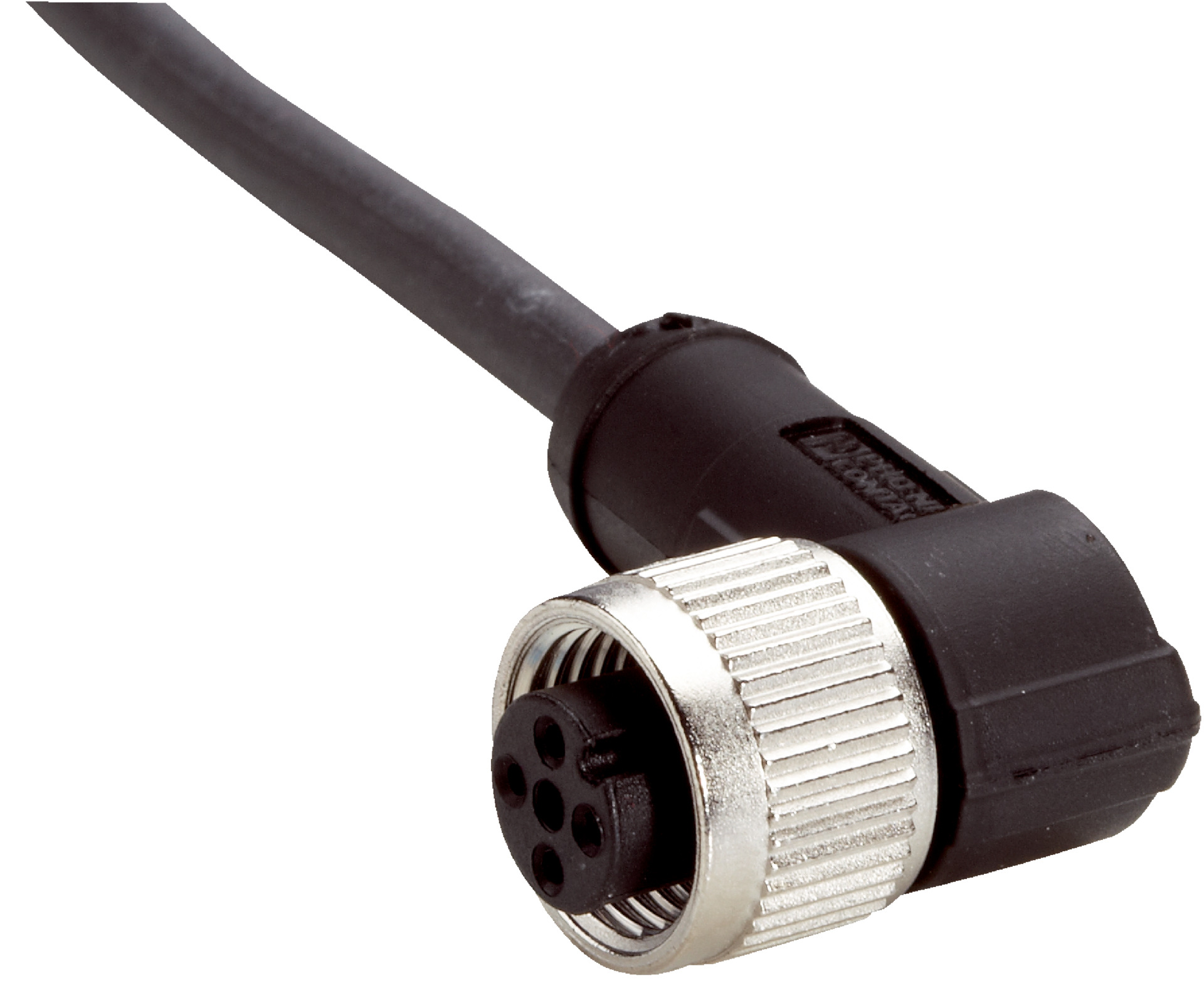

M12 Sensor/Actuator Cable | 5m Length | IP65/IP67/IP68 Rated | Halogen-Free | by SICK
The M12 Sensor/Actuator Cable is designed for reliable connections in industrial automation, featuring a 5m length and IP65/IP67/IP68 enclosure rating. With a durable halogen-free PUR jacket and high bending cycle capacity, it's perfect for use in zones with oils and lubricants, ensuring longevity and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable: 5 m, 4-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 5.9 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: ≥ 2,000,000
- Reference voltage: ≤ 250 V
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Application: Zones with oils and lubricants, Drag chain operation
- Enclosure rating: IP65/IP67/IP68
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –25 °C to +80 °C
- Operating temperature head: –25 °C to +90 °C
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 4-pin, angled on head A
- Flying leads on head B
- Cable length: 5 m, 4-wire, PUR, halogen-free
- Cable diameter: 5.9 mm
- Conductor cross section: 0.75 mm²
- Unshielded cable
- High bending cycles ≥ 2,000,000
- Enclosure rating IP65/IP67/IP68
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –25 °C to +80 °C, Head –25 °C to +90 °C
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration ≤ 5 m/s²
- Locking nut material: Zinc die-cast, nickel-plated
- Connector material: TPU, black color
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Suitable for zones with oils and lubricants
- Ideal for drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces environmental impact in case of disposal or fire
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1204W05MC75KM0 sensor/actuator cable is available for immediate purchase. Ideal for industrial automation and sensor connection applications in harsh environments.
