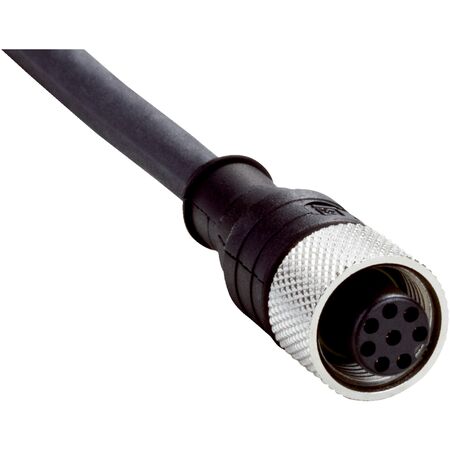

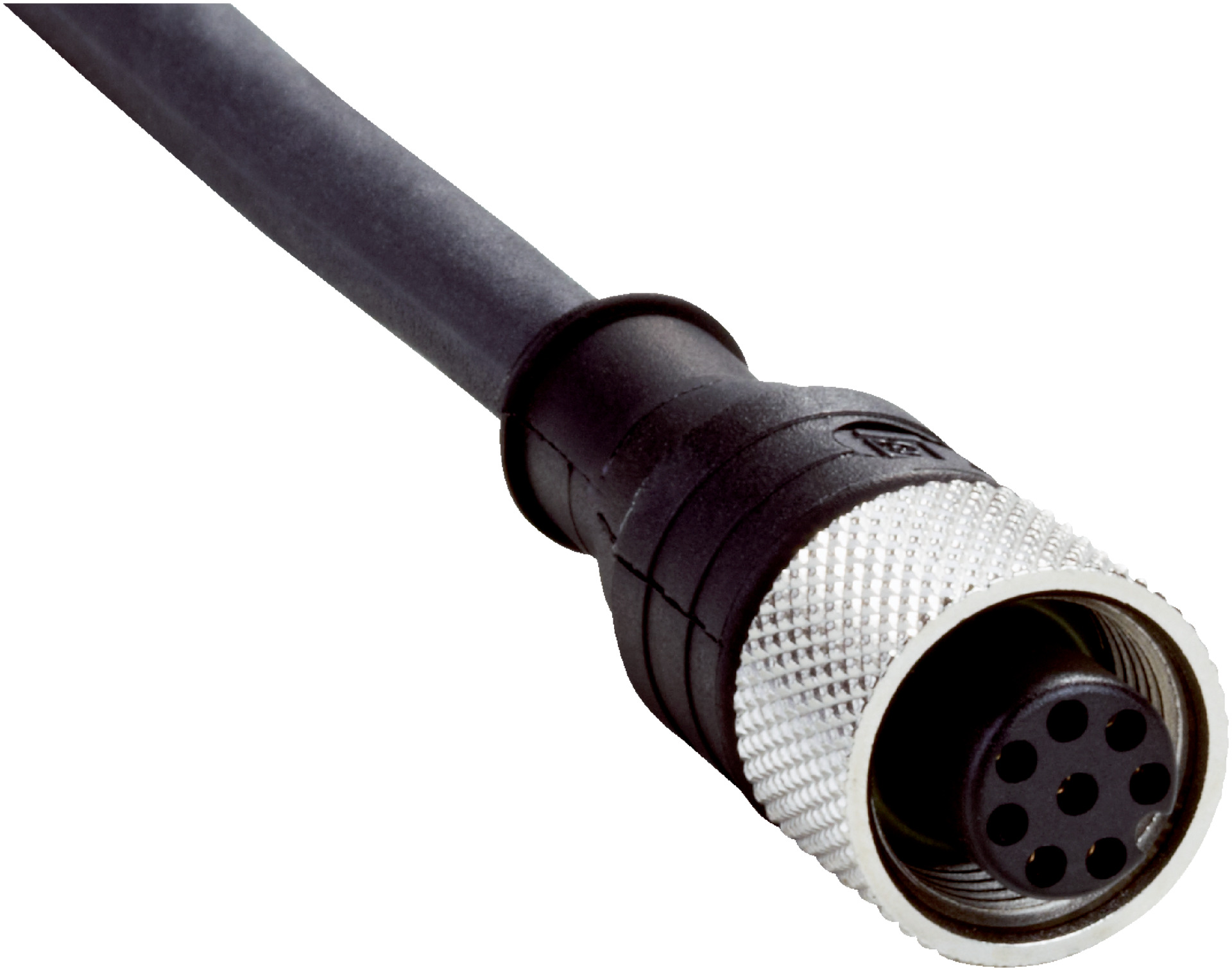

M12 Sensor Actuator Cable | 5m Length | Shielded & Halogen-Free | IP65/IP67 Rated | by SICK
The M12 Sensor Actuator Cable is designed for industrial automation, featuring a 5m length with a female M12, 8-pin straight connector and flying leads for flexible connections. Built with a shielded, halogen-free PUR jacket, this cable ensures reliable signal transmission in harsh environments, making it ideal for robotics and factory automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Cable: 5 m, 7-wire, PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Drag chain operation temperature: -25 °C to +60 °C
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65/IP67 (EN 60529)
- UL File No.: CYJV.E335179
- Dimensions (H x L x W): 6mm x 5000mm x 6mm
- Weight: 0.1 kg
Key Features
- Female M12, 8-pin straight connector on head A
- Flying leads on head B for flexible connection
- Cable length of 5 meters with 7-wire PUR halogen-free jacket
- Shielded cable for interference protection
- High bending cycle durability with over 2,000,000 cycles
- Operating temperature range from -50°C to +80°C depending on use
- IP65/IP67 rated enclosure for dust and water resistance
- UL recognized cable and jacket materials
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Factory automation systems requiring reliable signal transmission
- Robotics and machinery requiring flexible and durable cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design reduces cable replacement frequency, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-127SG05ME25KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
