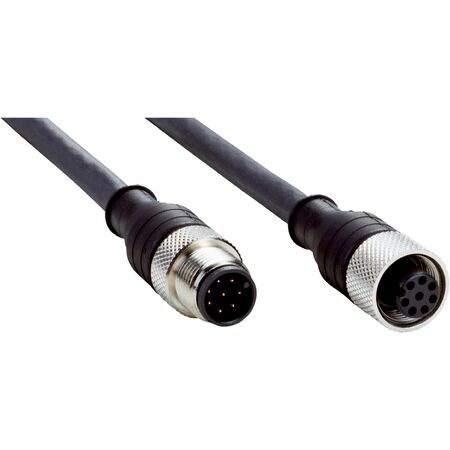

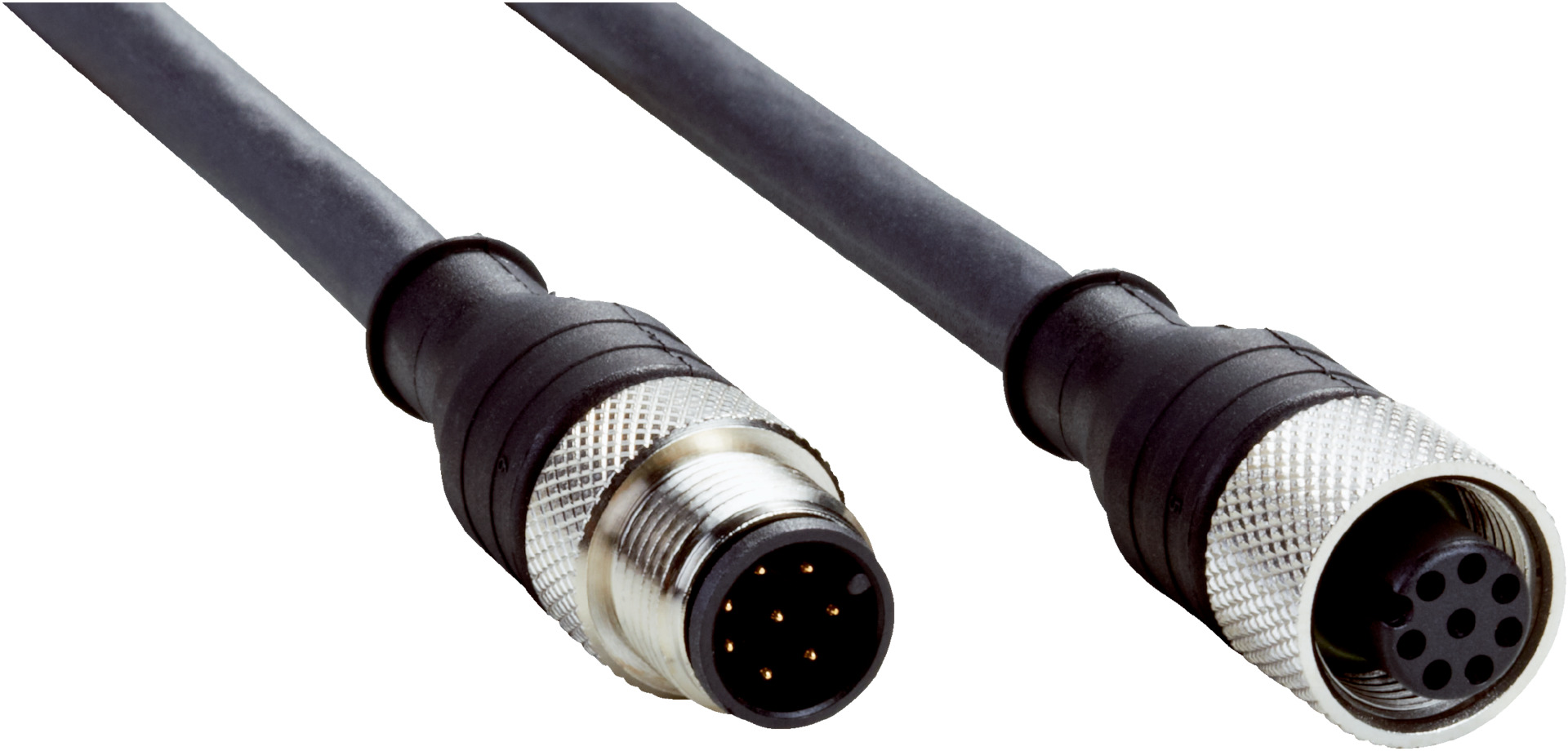

M12 Sensor Cable | 1.5m Length | IP65/IP67 Rated | Shielded | by SICK
The M12 Sensor Cable is designed for reliable connections in industrial automation, featuring female and male 8-pin straight connectors and a 1.5m halogen-free PUR jacket. With an IP65/IP67 rating for dust and water resistance, this cable is perfect for factory automation and robotics, ensuring optimal performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Male connector, M12, 8-pin, straight
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Tightening torque: 0.5 Nm
- Cable: 1.5 m, 7-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Drag chain operation temperature: -25 °C to +60 °C
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65/IP67 (EN 60529)
- UL recognized in accordance with AWM Style 20549 and 10493
- Dimensions (H x L x W): 6mm x 1500mm x 6mm
- Weight: 0.1 kg
Key Features
- Female and male M12 8-pin straight connectors
- Cable length of 1.5 meters with 7-wire PUR halogen-free jacket
- Shielded cable for interference protection
- High bending radius suitable for flexible and stationary use
- Operating temperature range from -50°C to +80°C
- IP65/IP67 rated enclosure for dust and water resistance
- UL recognized cable and conductor for safety compliance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Factory automation and control systems
- Robotics and machinery requiring reliable sensor cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK DSL-127SG1M5E25KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
