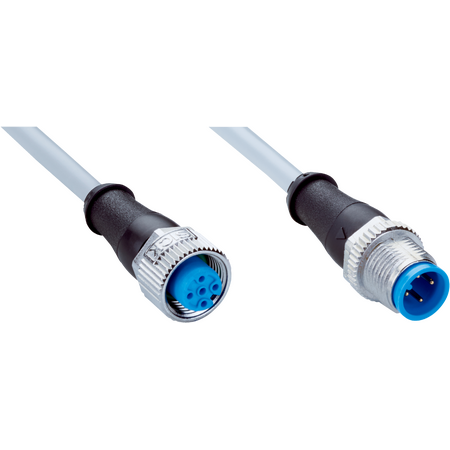

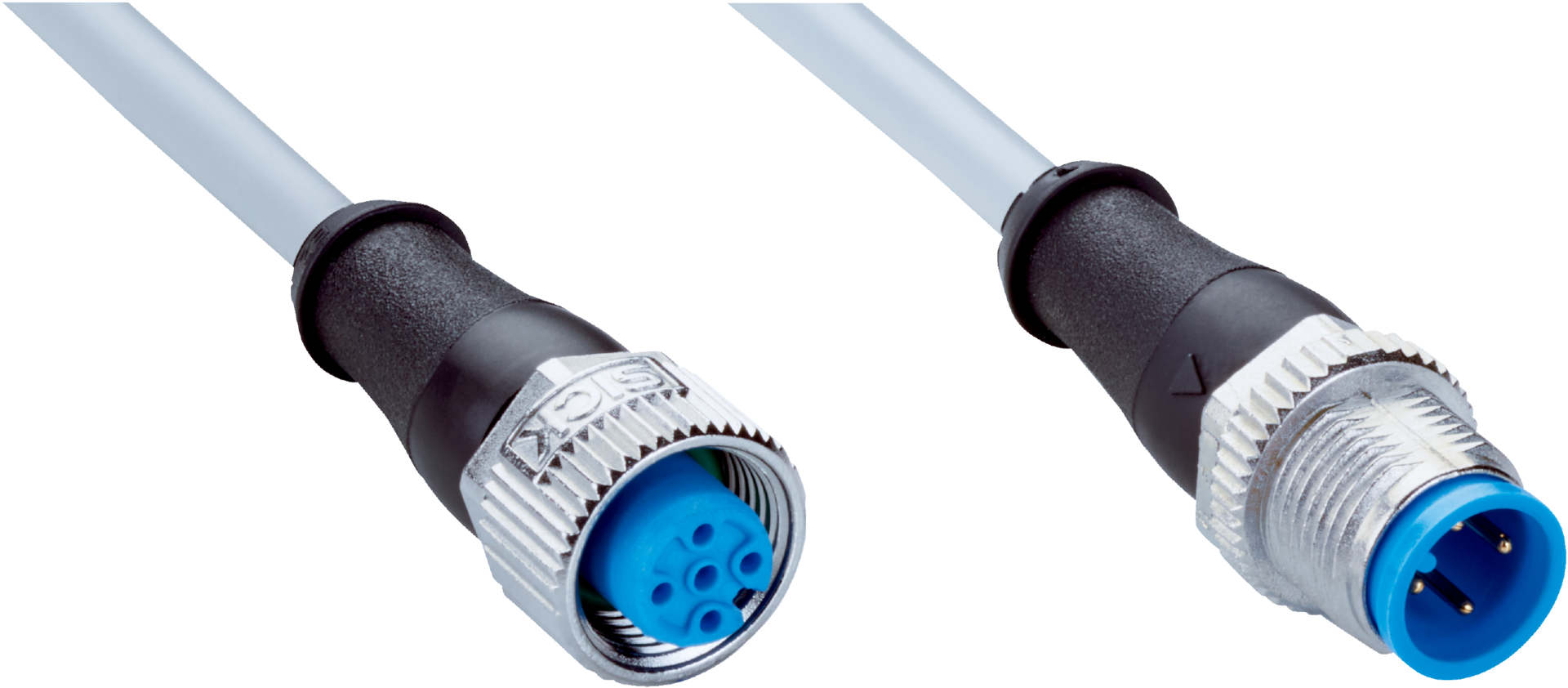

M12 Sensor Cable | 10m Length | IP65/IP66K/IP67 Rated | TPU Material | by SICK
The M12 Sensor Cable is designed for reliable sensor and actuator connections, featuring a 10m length and IP65/IP66K/IP67 enclosure rating. Built with durable TPU material and a screw connection locking plug, it's perfect for industrial automation applications in uncontaminated zones and chemical environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 4-pin, SICK Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable: 10 m, 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Head temperature: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 10mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 4-pin, straight, A-coded on head A
- Male connector, M12, 4-pin, straight, A-coded on head B
- Screw connection locking plug connector
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 10 m, 4-wire, PVC jacket in gray
- Cable diameter: 5 mm with conductor cross section 0.34 mm²
- Unshielded cable
- Bending radius for flexible use > 10 x cable diameter
- Bending radius for stationary position > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Head temperature range: -25 °C to +85 °C
- Nominal voltage of cable: 300 V AC
- Test voltage of cable: 2000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Use in uncontaminated zones
- Suitable for zones with chemicals
- Sensor and actuator cable applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A14-100VB3M2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
