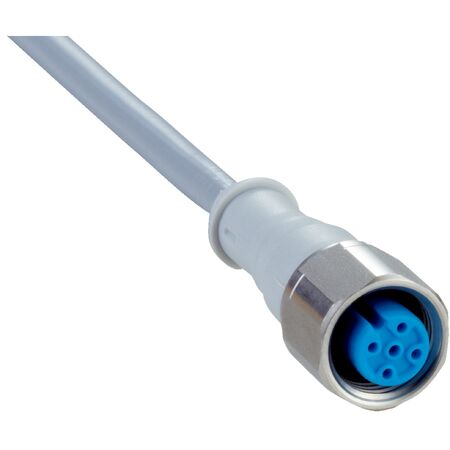

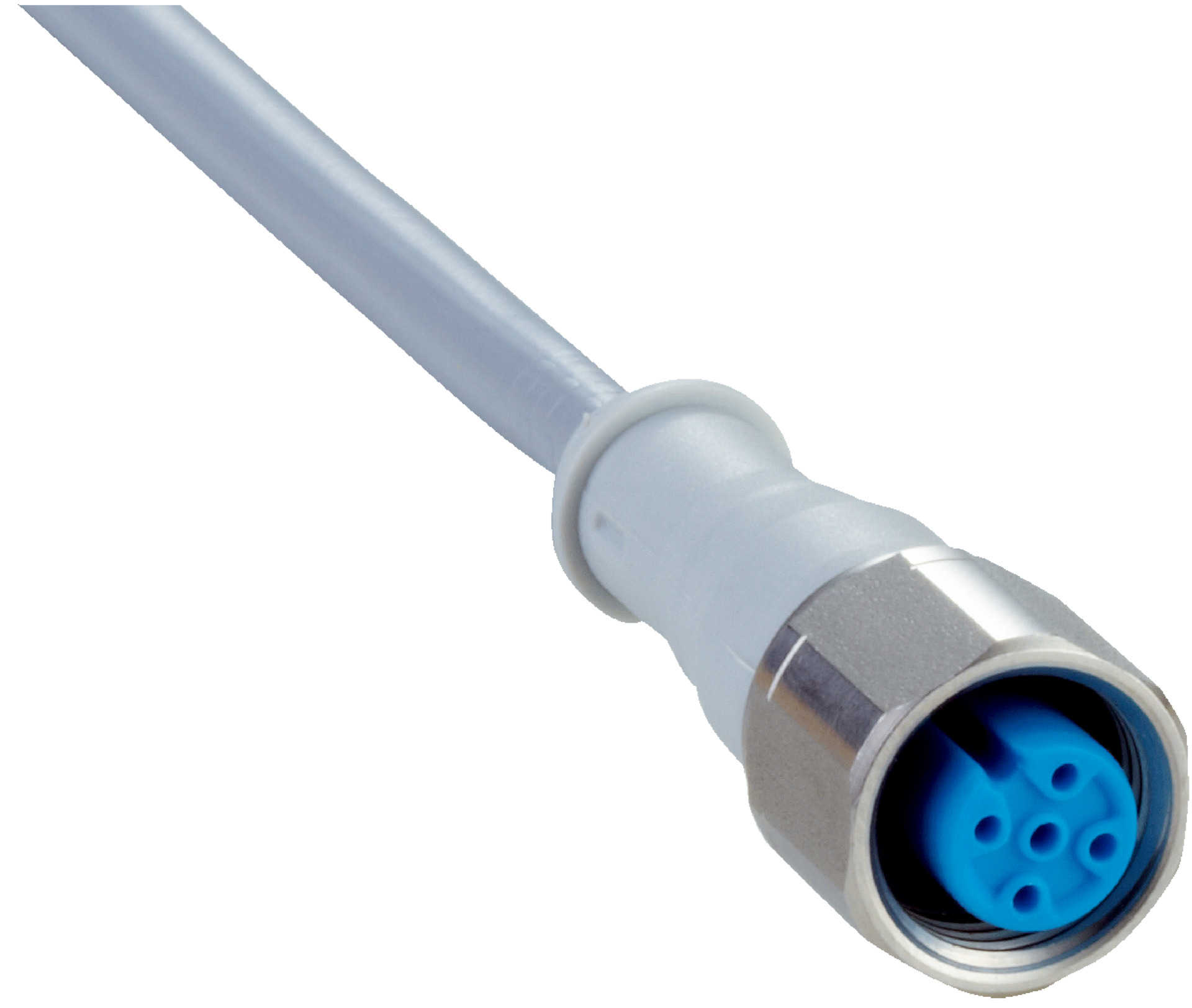

M12 Sensor Cable | 10m PVC | IP65/IP67/IP69K Rated | Chemical Resistant | by SICK
The M12 Sensor Cable is designed for robust sensor and actuator connections in hygienic and washdown environments. With a 10m PVC cable and a durable PUR connector, it offers IP65, IP67, and IP69K ratings for high protection against water and dust. Ideal for industrial applications, this cable ensures reliable performance even in challenging conditions, making it a perfect choice for demanding installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: PUR
- Locking nut material: Stainless steel (V4A/1.4404)
- Cable length: 10 m, 4-wire, PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Tightening torque: 0.6 Nm
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- Operating temperature: Flexible use -5 °C to +80 °C, Stationary position -30 °C to +80 °C, Head -25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 10000mm x 14mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 4-pin, straight
- 10 m, 4-wire PVC cable with PUR connector material
- Locking nut made of stainless steel (V4A/1.4404)
- IP65, IP67, and IP69K enclosure rating for high protection
- Chemical resistant to cleaning agents certified by ECOLAB
- Operating temperature range from -30 °C to +85 °C depending on use
- Rated impulse voltage of 2.5 kV and current loading of 4 A
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones in industrial environments
- Sensor and actuator connections requiring robust and chemical-resistant cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Chemical resistance reduces environmental contamination risks during cleaning
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1204-G10MNI sensor/actuator cable is available for immediate purchase, ideal for industrial hygienic and washdown applications requiring robust and reliable cabling.
