M12 Sensor Cable | 10m Length | Shielded & Halogen-Free | IP65/IP67 Rated | by SICK
The M12 Sensor Cable is designed for industrial automation, featuring a 10m length and a durable shielded construction. With an IP65/IP67 rating, this cable is perfect for sensor and actuator connections in harsh environments, ensuring reliable performance and compliance with safety standards. Its halogen-free PUR jacket enhances safety by reducing harmful emissions, making it an ideal choice for factory automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

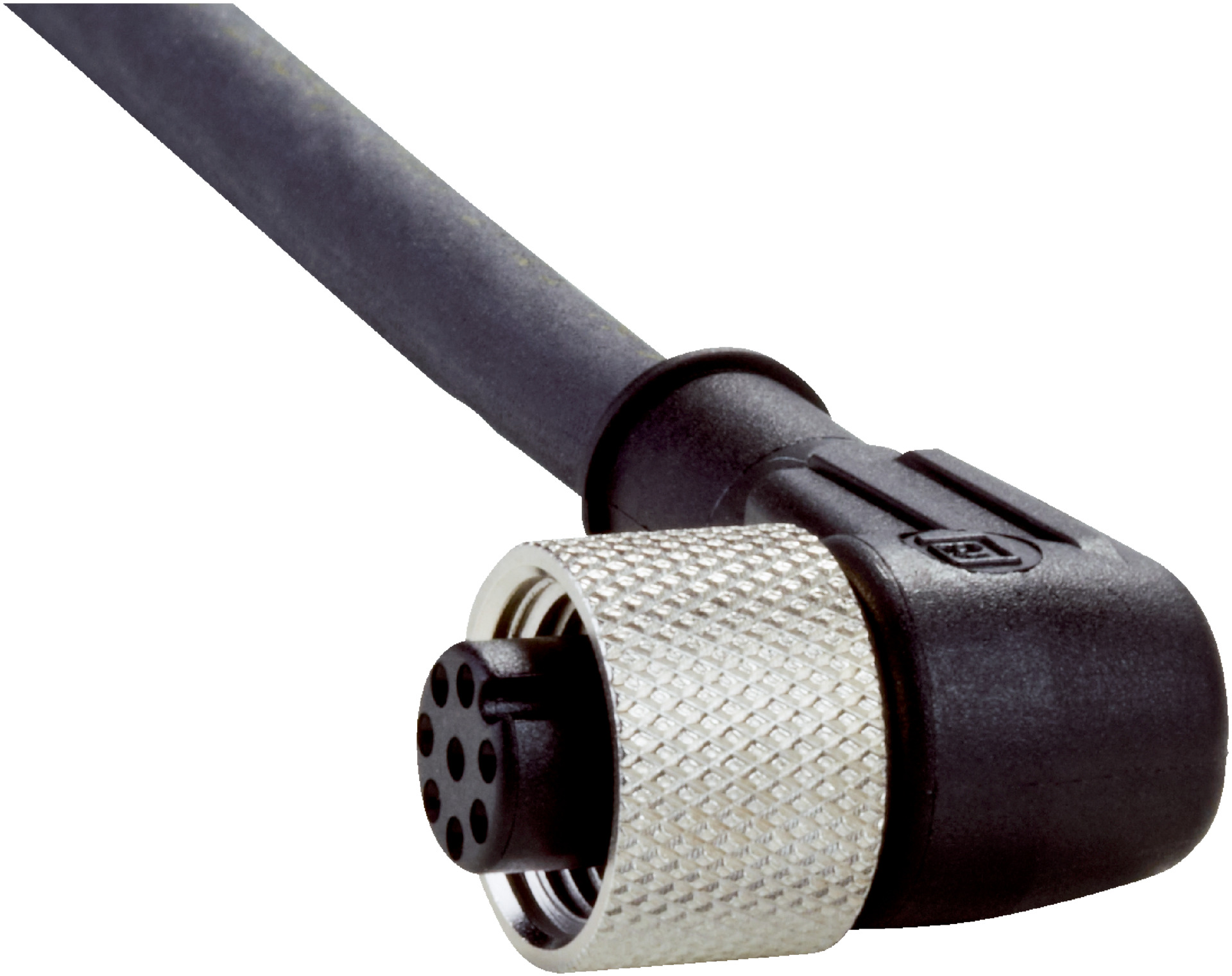

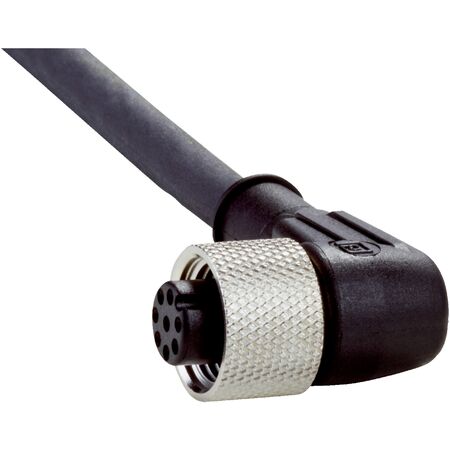

- Connection type head A: Female connector, M12, 8-pin, angled
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Cable: 10 m, 7-wire, PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Drag chain operation temperature: -25 °C to +60 °C
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65/IP67 (EN 60529)
- UL recognized in accordance with AWM Style 20549 and 10493
- Dimensions (H x L x W): 6mm x 10000mm x 6mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 8-pin, angled for secure connection
- 10 m length, 7-wire PUR halogen-free cable with black jacket
- Shielded cable with TPU connector material for durability
- High bending radius suitable for flexible and stationary use
- Operating temperature range from -50 °C to +80 °C
- IP65/IP67 enclosure rating for protection against dust and water
- UL recognized cable and jacket for safety compliance
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Factory automation systems requiring durable and flexible cabling
- Environments needing IP65/IP67 rated cable protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life reducing waste
- Shielding minimizes electromagnetic interference improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-127SW10ME25KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and factory applications requiring reliable and durable cabling.
