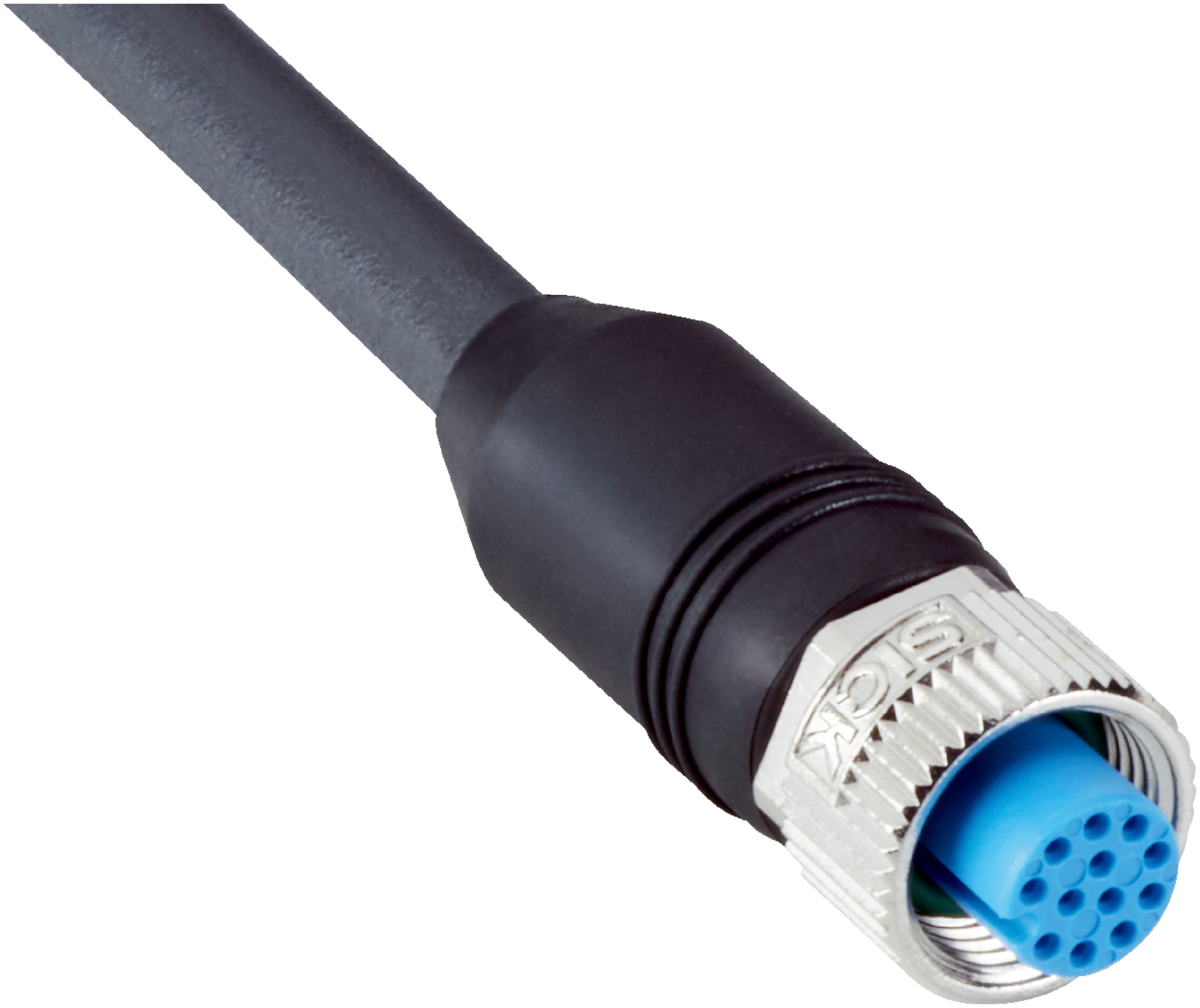

M12 Sensor Cable | 12-Pin Female Connector | 10m Halogen-Free PUR | IP65/IP66/IP67 Rated | by SICK
The M12 Sensor Cable features a 12-pin female connector and a durable 10m halogen-free PUR jacket, making it ideal for industrial automation and robotic applications. With an impressive operating temperature range of -40 °C to +85 °C and an enclosure rating of IP65/IP66/IP67, this cable is built to withstand harsh environments while ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 10 m, 12-wire, PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.14 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 15 x cable diameter
- Bending radius stationary position: > 7.5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +85 °C
- Operating temperature stationary position: -40 °C to +85 °C
- Operating temperature drag chain operation: -25 °C to +85 °C
- Bending cycles: ≤ 2,000,000
- Reference voltage: ≤ 30 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: 1.5 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180°
- Enclosure rating: IP65 / IP66 / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 6mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 12-pin, straight, A-coded
- Screw connection locking plug connector
- Cable length 10 m, 12-wire, PUR, halogen-free
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66 / IP67
- High bending cycles up to 2,000,000
- Torsion force 180°
- Current loading 1.5 A
- Rated impulse voltage 0.8 kV
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

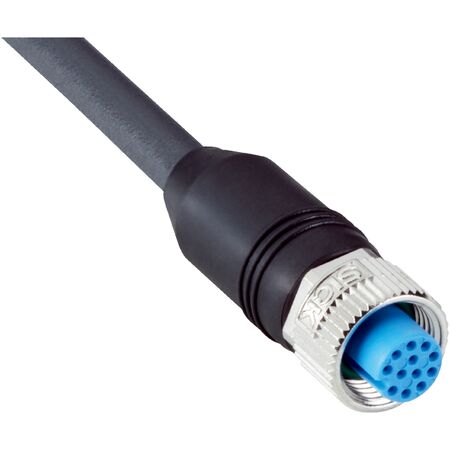

The SICK YF2A1B-100UD1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic applications.
