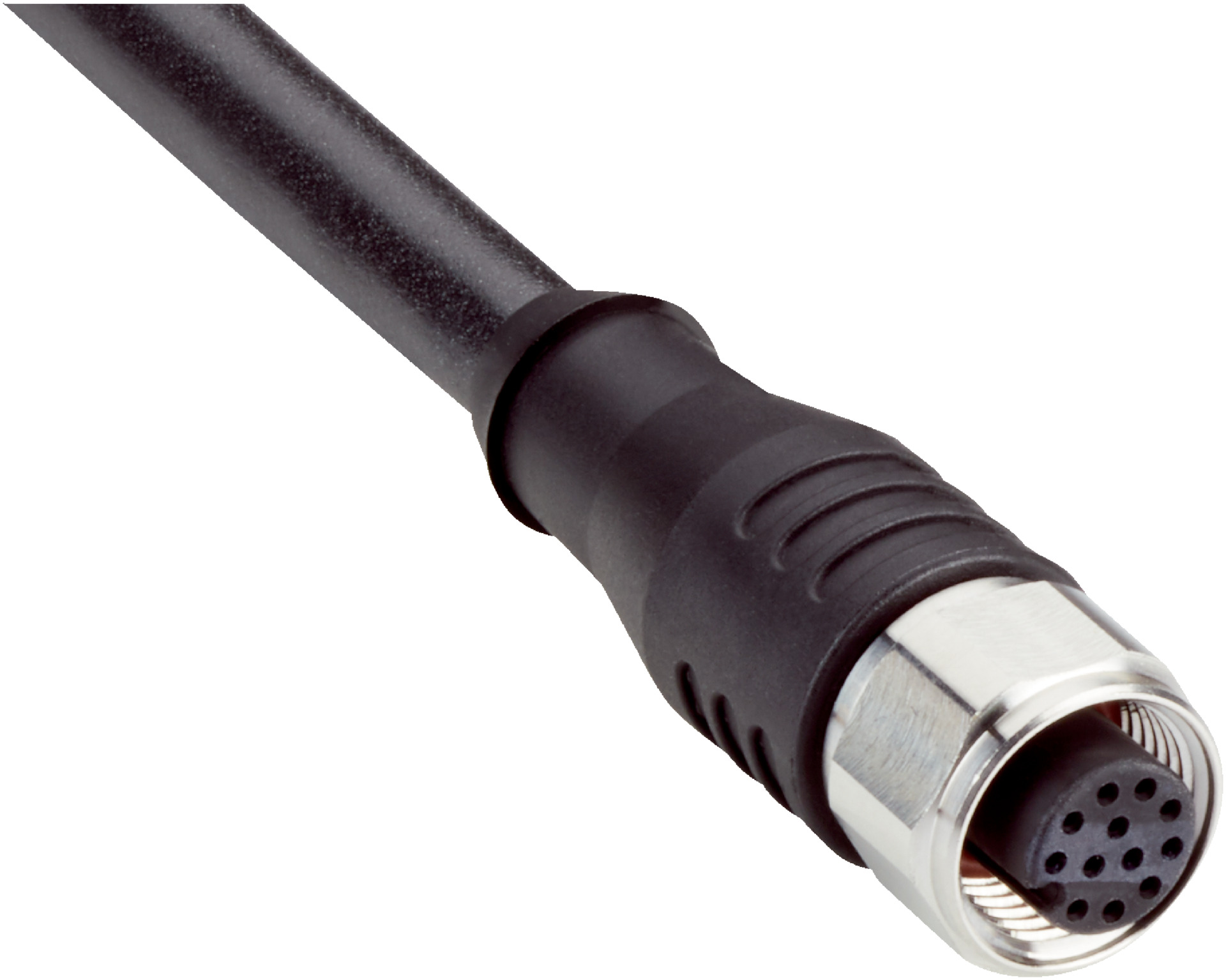

M12 Sensor Cable | 12-Pin Female Connector | 10m Length | Shielded | by SICK
The M12 Sensor Cable is designed for reliable connections in industrial automation, featuring a 12-pin female connector and flying leads for flexible installation. With a durable black/matte PUR jacket and shielded design, it ensures signal integrity and is perfect for factory machinery and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Cable length: 10 m
- Cable type: 12-wire, PUR jacket
- Jacket color: Black/matte
- Cable diameter: 7.5 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Locking nut material: Stainless steel (V4A/1.4404)
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Signal type: Sensor/actuator cable
- Special feature: Pin 1 and pin 2 swapped over
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 12-pin, straight, A-coded on head A
- Flying leads on head B for flexible connection
- Durable PUR jacket with black/matte finish
- Shielded cable for signal integrity
- Stainless steel locking nut (V4A/1.4404) for corrosion resistance
- Pin 1 and pin 2 swapped over for special wiring requirements
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Factory machinery wiring
- Robotics and control systems requiring reliable sensor cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket extends cable life reducing waste
- Shielding reduces electromagnetic interference improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

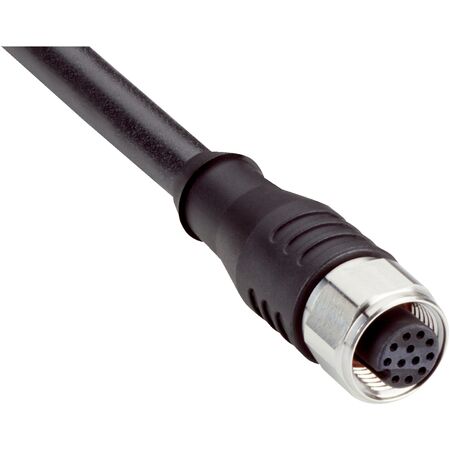

The SICK YF2A6B-100S01XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
