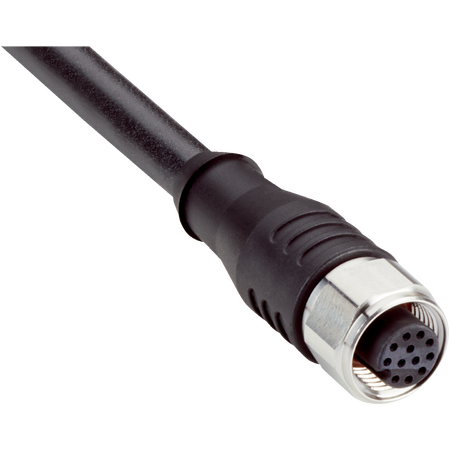

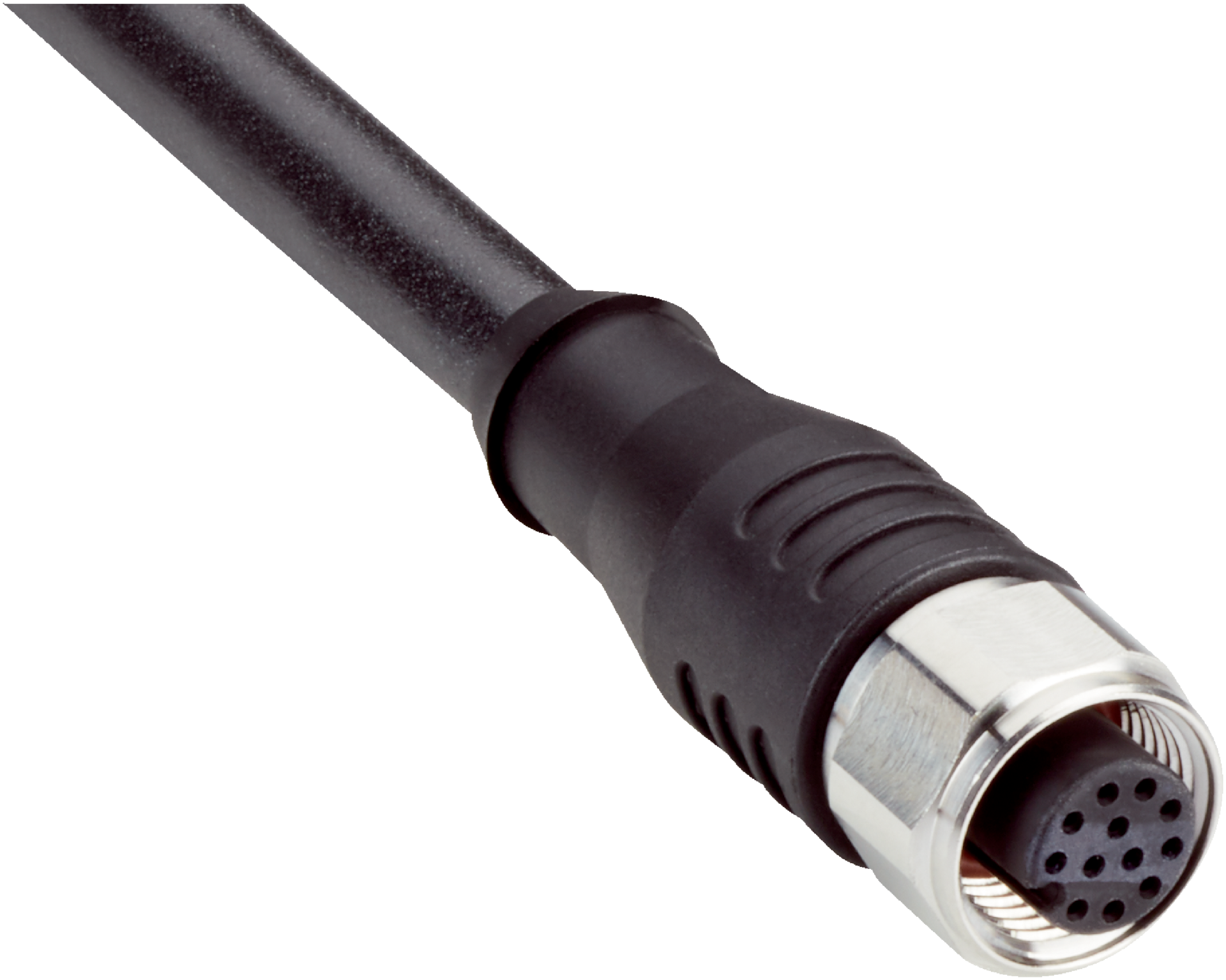

M12 Sensor Cable | 12-Pin Female Connector | Shielded PUR Jacket | Black | by SICK
The M12 Sensor Cable features a 12-pin female connector and flying leads, designed for reliable sensor and actuator connections in industrial automation. With a durable PUR jacket, this cable is perfect for harsh environments, including zones with oils and lubricants, ensuring long-lasting performance and reduced electromagnetic interference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, PUR Jacket Sensor Cable, 12-pin M12 Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight, A-coded
- Connection type head B: Flying leads
- Cable length: 10 m
- Cable construction: 12-wire, PUR jacket
- Jacket color: Black/matte
- Cable diameter: 7.5 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Locking nut material: Stainless steel (V4A/1.4404)
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Signal type: Sensor/actuator cable
- Special feature: Pin 1 and pin 2 swapped over
- Application: Zones with oils and lubricants
- Dimensions (H x L x W): 7.5mm x 10000mm x 7.5mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 12-pin, straight, A-coded on head A
- Flying leads on head B
- Shielded sensor/actuator cable
- Pin 1 and pin 2 swapped over for special wiring requirements
- Durable PUR jacket suitable for harsh environments
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with oils and lubricants requiring durable cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket extends cable life reducing waste
- Shielding reduces electromagnetic interference improving system efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK YF2A6B-100S01XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and harsh environment applications.
