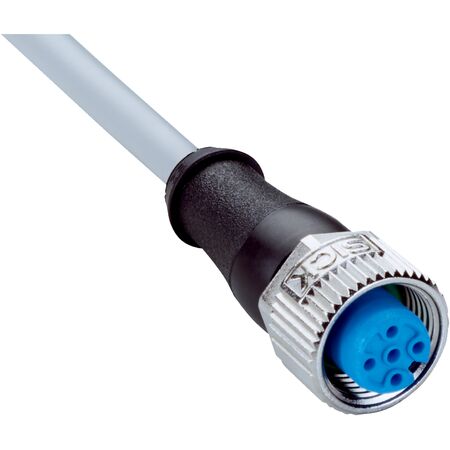

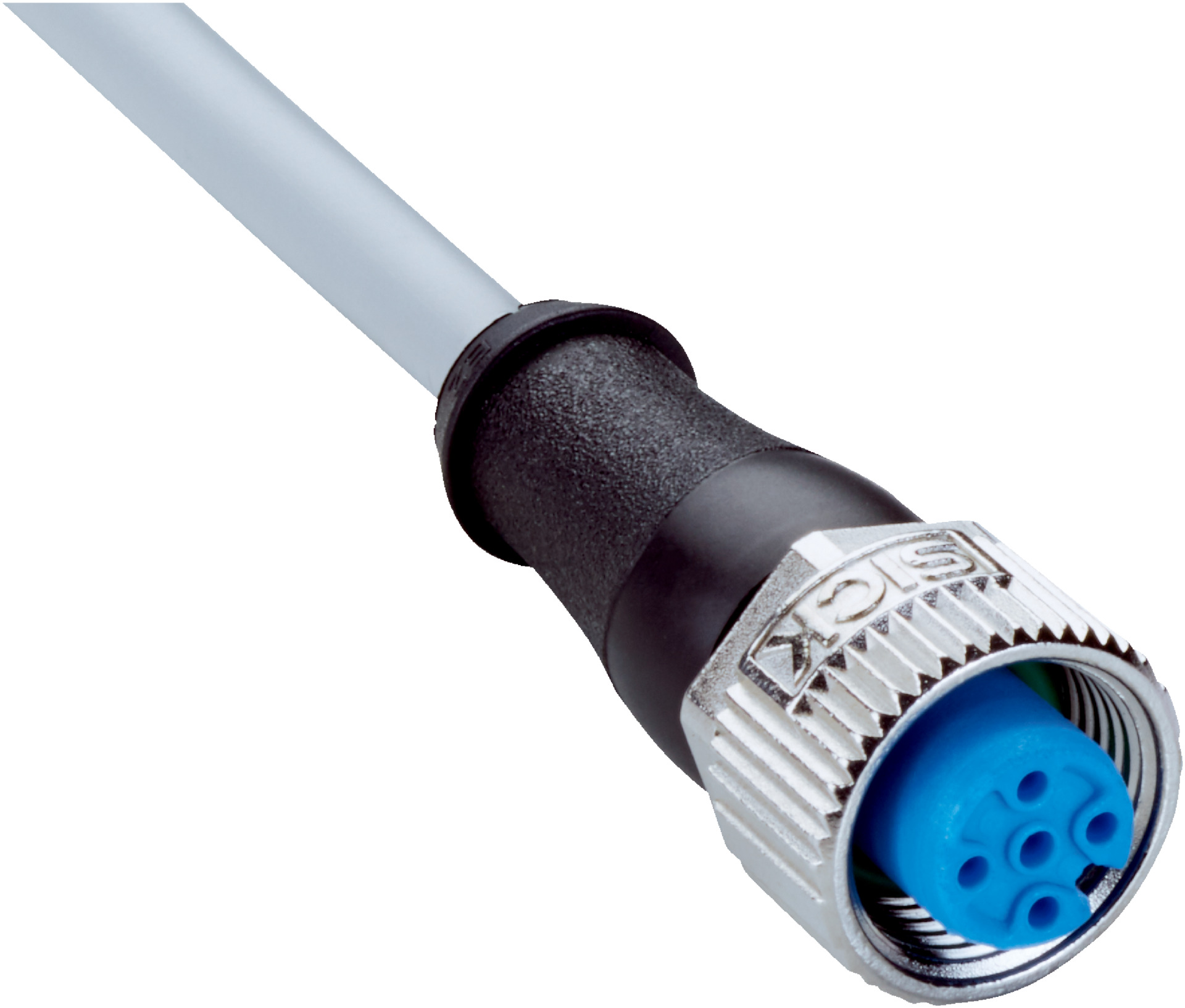

M12 Sensor Cable | 15m Length | IP65/IP66K/IP67 Rated | Flame Retardant | by SICK
The M12 Sensor Cable is designed for reliable connections in industrial automation, featuring a 15m length and a robust 4-wire PVC construction. With an IP65/IP66K/IP67 protection rating, it’s perfect for chemical zone applications and environments requiring durable, flame-retardant cables. Ideal for professionals seeking high-quality actuator connections, this cable ensures safety and compliance in demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 15 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature Flexible use: -5 °C to +80 °C
- Operating temperature Stationary position: -30 °C to +80 °C
- Operating temperature Head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 5mm x 15000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12, 4-pin, straight, A-coded connector
- 15 m length, 4-wire PVC cable with gray jacket
- Screw locking plug connector with zinc die-cast, nickel-plated locking nut
- High protection rating: IP65 / IP66K / IP67
- Operating temperature range: -30°C to +85°C depending on use
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Chemical zone applications
- Uncontaminated zones requiring robust cable connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YF2A14-150VB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and chemical zone applications.
