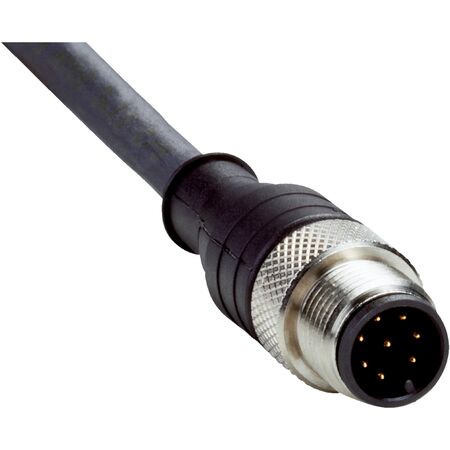

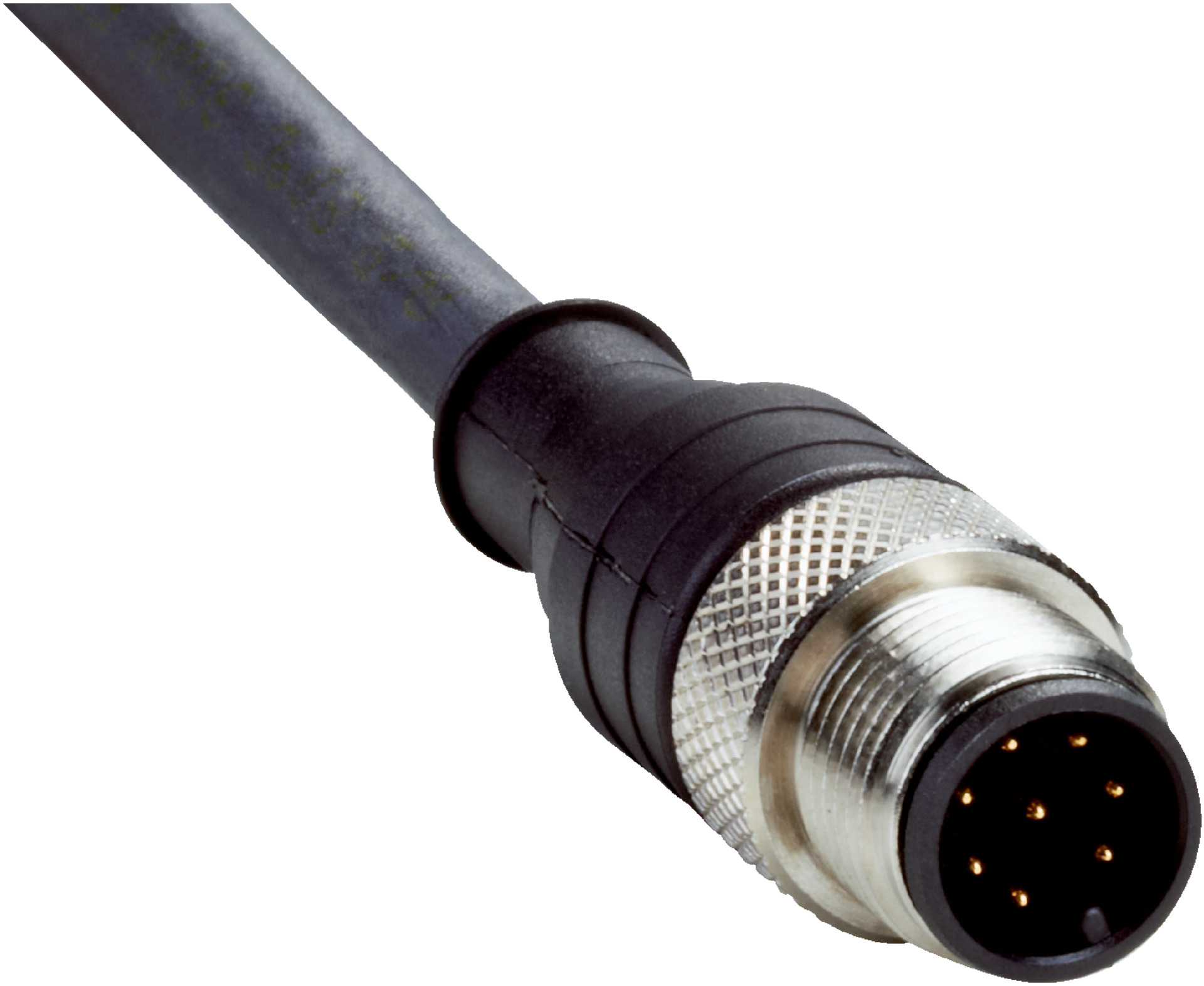

M12 Sensor Cable | 15m Length | Shielded 7-Wire PUR | IP65/IP67 Rated | by SICK
The M12 Sensor Cable is a robust 15m actuator cable designed for industrial automation applications. Featuring a shielded 7-wire PUR construction and a durable TPU connector, it ensures reliable connections in harsh environments. With an IP65/IP67 rating for dust and water protection, this cable is perfect for factory automation, robotics, and control systems, providing high durability and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Tightening torque: 0.5 Nm
- Cable length: 15 m
- Cable type: 7-wire, PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25°C to +80°C
- Operating temperature stationary position: -50°C to +80°C
- Drag chain operation temperature: -25°C to +60°C
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65/IP67 (EN 60529)
- UL File No.: CYJV.E335179
- Dimensions (H x L x W): 6mm x 15000mm x 6000mm
- Weight: 0.3 kg
Key Features
- Male connector M12, 8-pin, straight
- 15 m length, 7-wire PUR halogen-free cable
- Shielded cable with TPU connector material
- High durability with over 2,000,000 bending cycles
- IP65/IP67 rated for dust and water protection
- Operating temperature range from -50°C to +80°C
- UL recognized with AWM Style 20549 and 10493 certifications
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Factory automation and control systems
- Robotics and machinery requiring flexible, shielded cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK STL-127SG15ME25KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
