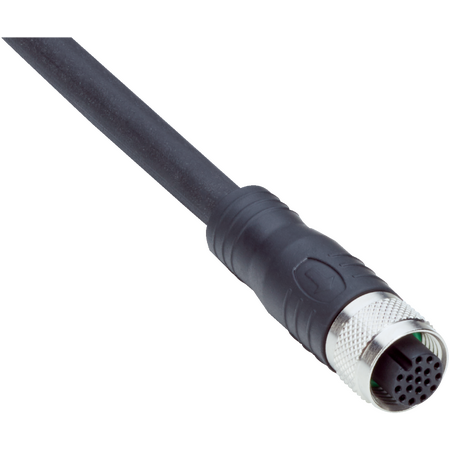

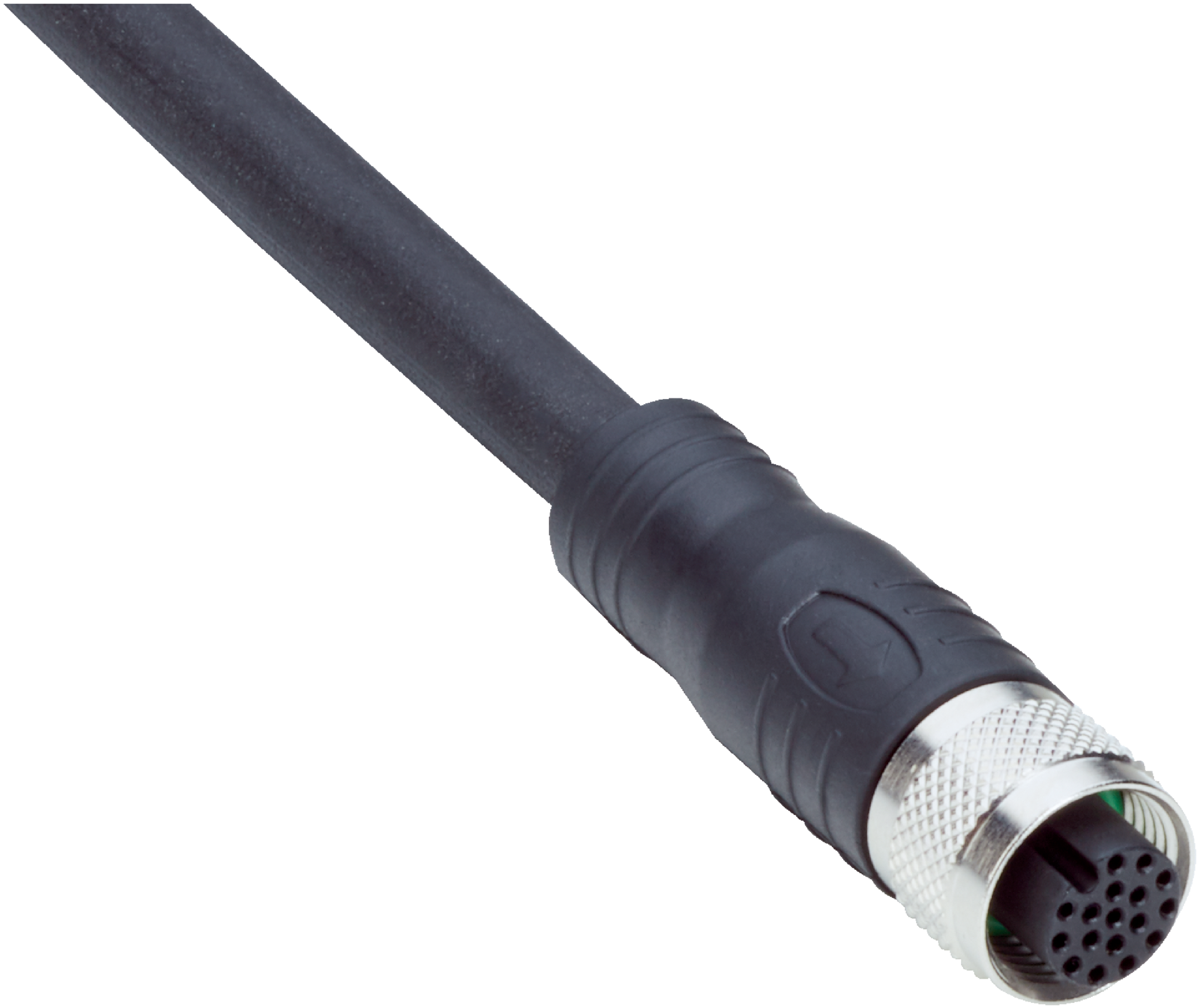

M12 Sensor Cable | 17-Pin Female Connector | IP67 Rated | 5m Length | by SICK
The M12 Sensor Cable features a 17-pin female connector and flying leads, making it ideal for industrial automation and robotics applications. With a robust IP67 rating for dust and water protection, this 5m cable is designed for flexible use in environments with oils and lubricants, ensuring reliable signal integrity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 17-pin, SICK Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M12, 17-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 5 m
- Cable wires: 17-wire, PUR
- Jacket material: PUR
- Jacket color: Black
- Cable diameter: 7.5 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Operating temperature flexible use: –20 °C to +80 °C
- Operating temperature stationary position: –40 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Reference voltage: ≤ 30 V AC/DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 1.5 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 17-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 5 m length, 17-wire PUR cable with black jacket
- Cable diameter 7.5 mm, conductor cross section 0.14 mm²
- Shielded cable for signal integrity
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 8 x cable diameter
- Operating temperature: Flexible use –20 °C to +80 °C, Stationary position –40 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating IP67 for dust and water protection
- Rated impulse voltage 1.5 kV, current loading ≤ 1.5 A
- Insulation resistance 100 MΩ, overvoltage category III
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Zones with oils and lubricants
- Robot drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste.
- Shielded cable minimizes electromagnetic interference, improving system efficiency.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A2D-050UV2XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring reliable and durable cabling solutions.
