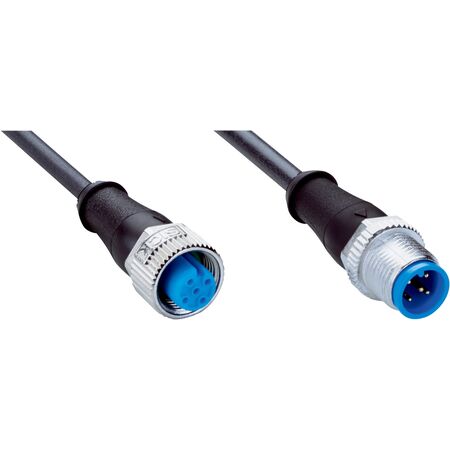

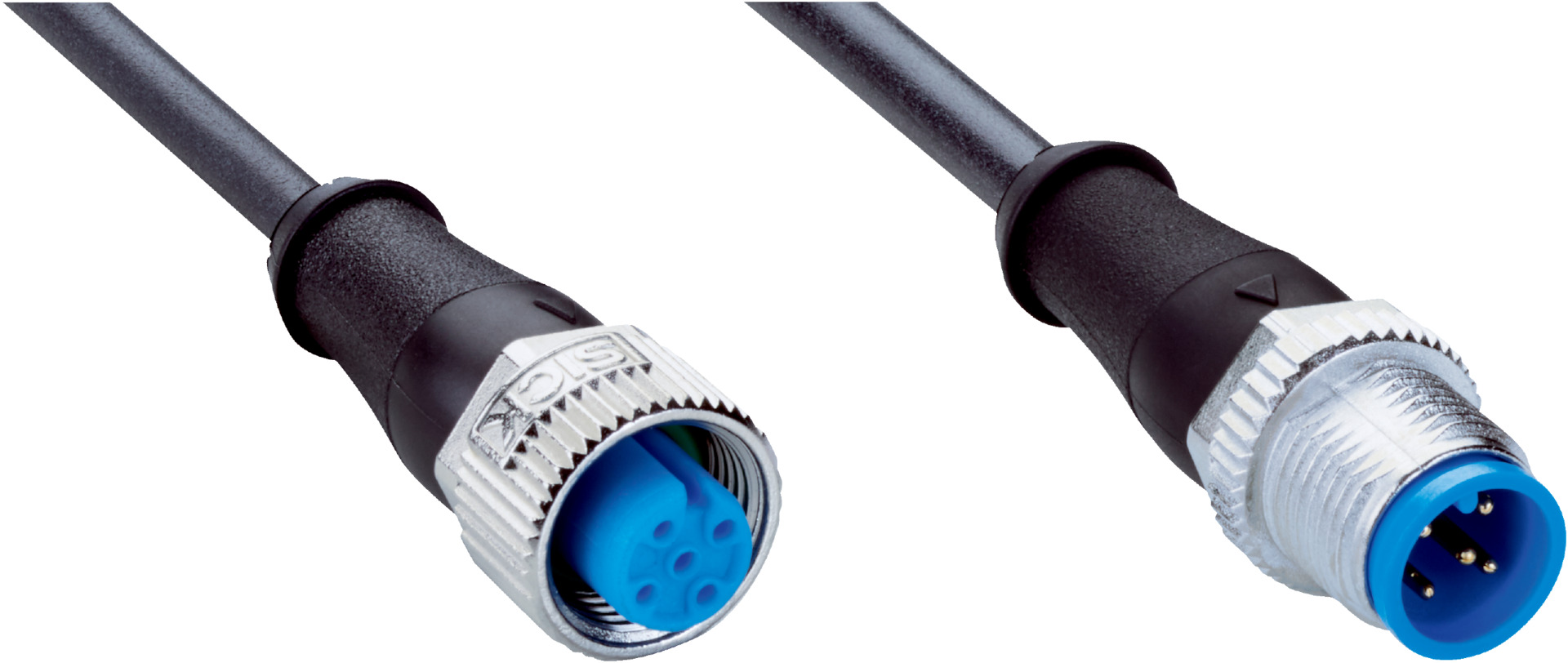

M12 Sensor Cable | 20m Length | IP65/IP66K/IP67 Rated | Screw Connection | by SICK
The M12 Sensor Cable YF2A15-200UB5M2A15 is designed for robust industrial applications, featuring a 20m length and IP65/IP66K/IP67 enclosure ratings. With a flexible operating temperature range of -25°C to +80°C and a durable PUR jacket, this cable is perfect for robotics and drag chain operations, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 20 m, 5-wire, PUR, halogen-free
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: -25°C to +80°C (flexible use), -40°C to +80°C (stationary), -25°C to +80°C (drag chain)
- Bending cycles: 10,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 20000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 5-pin, straight, A-coded on head A
- Male connector, M12, 5-pin, straight, A-coded on head B
- Screw connection locking plug connector
- Cable length 20 m, 5-wire, PUR, halogen-free
- Operating temperature range: -25°C to +80°C (flexible use)
- Enclosure rating IP65 / IP66K / IP67
- Torsion force 180°/1 m with 2,000,000 torsion cycles
- Bending radius suitable for flexible use and drag chain operation
- Nominal voltage 300 V AC, current loading 4 A
- Flame retardant according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2A15-200UB5M2A15 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor applications requiring durable and reliable cabling.
