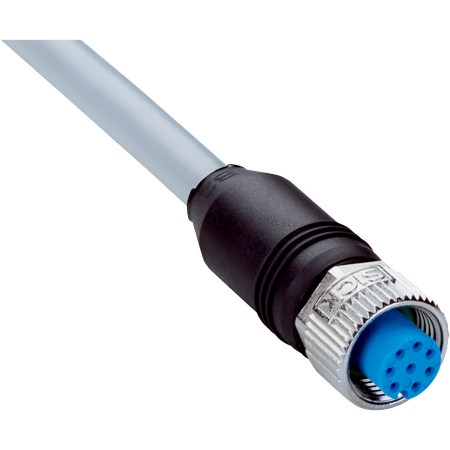

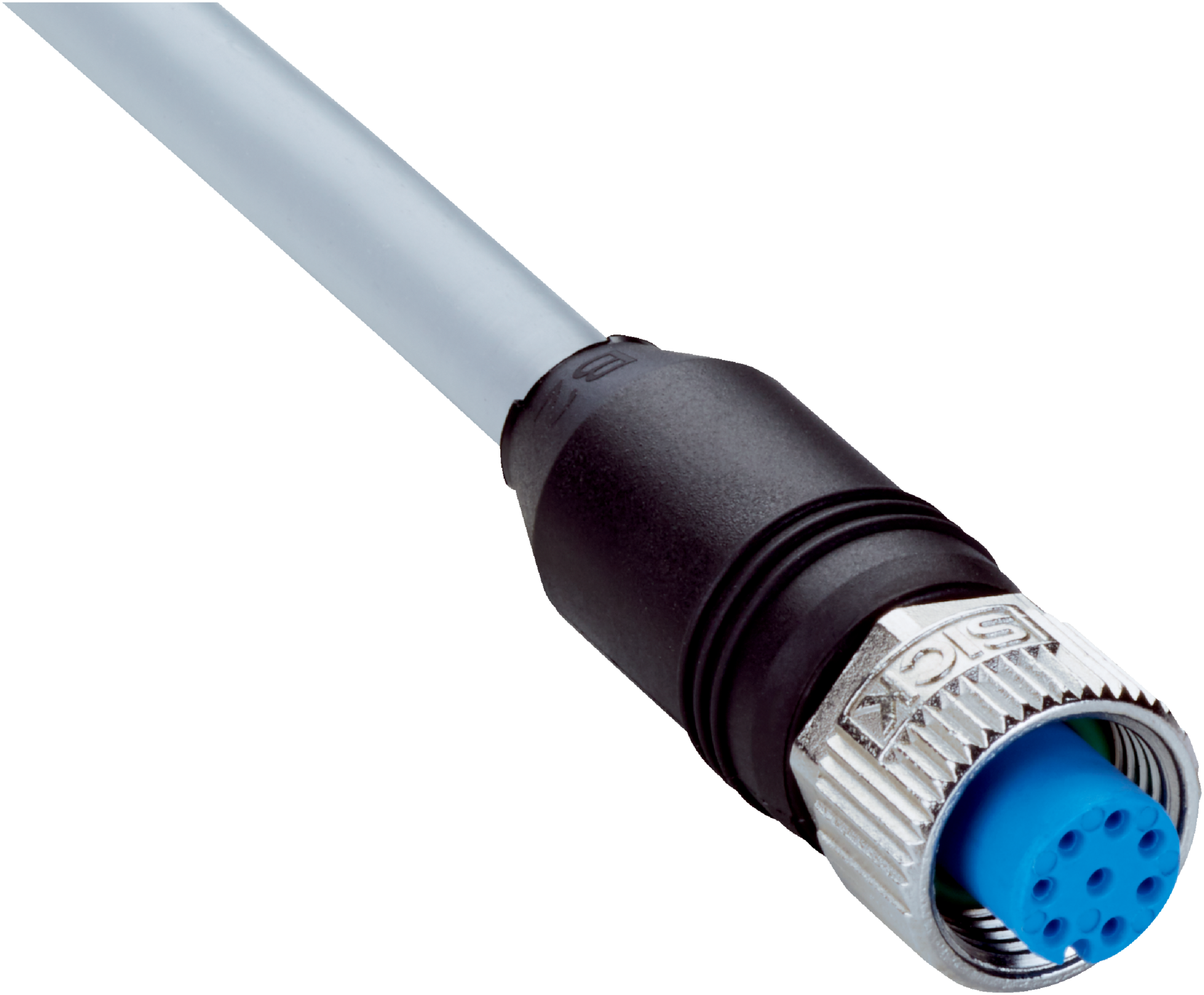

M12 Sensor Cable | 20m Length | IP65/IP66K/IP67 Rated | Shielded | by SICK
The M12 Sensor Cable is designed for industrial automation, featuring a 20m length with a female 8-pin connector and shielded construction. Ideal for actuator connections in environments requiring robust protection, this cable operates effectively in temperatures from -30°C to +80°C, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Sensor Cable, Actuator Cable M12 Female, Industrial Sensor Connector Cable, Shielded Sensor Cable 20m
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable: 20 m, 8-wire, PVC
- Jacket material: PVC
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 20000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with zinc die-cast nickel-plated locking nut
- Cable length 20 m, 8-wire, PVC jacket in gray color
- Shielded cable with 0.25 mm² conductor cross section
- Operating temperature range: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
- Current loading 2 A, nominal voltage 300 V AC
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor cabling and electrical safety standards.
Applications
- Industrial automation sensor and actuator connections
- Use in uncontaminated zones and zones with chemicals
- Suitable for environments requiring IP65/IP66K/IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant properties reduce replacement frequency and waste
- Shielded cable design minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A28-200VA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control applications requiring reliable and durable connections.
