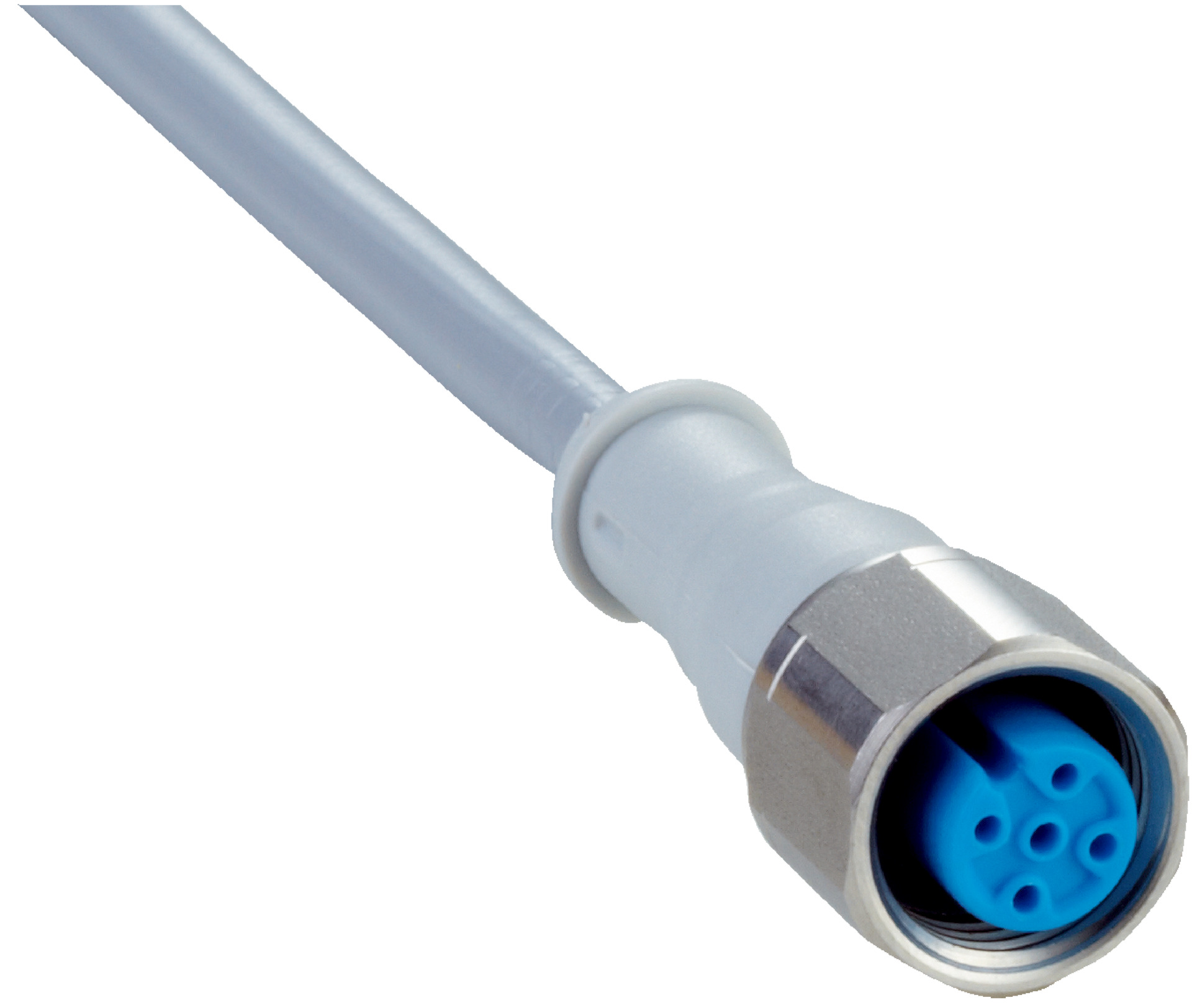

M12 Sensor Cable | 25m Length | PUR Material | IP65/IP67/IP69K Rated | by SICK
The M12 Sensor Cable is designed for reliable connections in industrial automation, featuring a 25m length and durable PUR material. With an IP65/IP67/IP69K rating, it's perfect for hygienic and washdown zones, ensuring chemical resistance and robust performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: PUR
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Cable length: 25 m, 4-wire, PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Reference voltage: ≤ 250 V
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- Dimensions (H x L x W): 14mm x 25000mm x 14mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 4-pin, straight
- Flying leads connection type
- Connector material made of PUR with gray color
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length of 25 m with 4-wire PVC jacket
- Unshielded cable with 0.34 mm² conductor cross section
- High bending radius for flexible use and stationary position
- Operating temperature range from -30 °C to +85 °C
- Enclosure rating IP65/IP67/IP69K for robust protection
- Chemical resistant to cleaning agents certified by ECOLAB
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Use in hygienic and washdown zones requiring chemical resistance
- Suitable for sensor and actuator cable connections in industrial automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Chemical resistance reduces environmental impact from cleaning agent residues
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

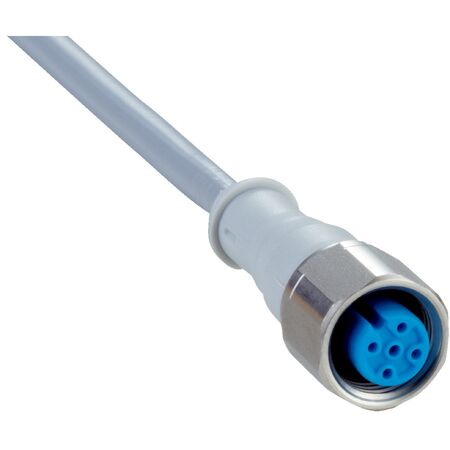

The SICK DOL-1204-G25MNI sensor/actuator cable is available for immediate purchase, ideal for industrial automation in hygienic and washdown environments.
